8 Parameter Measurement Information

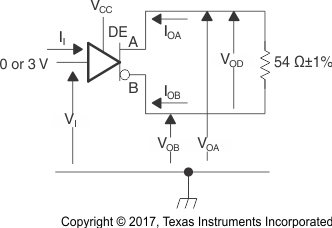

Figure 8-1 Driver
VOD Test Circuit and Voltage and Current Definitions

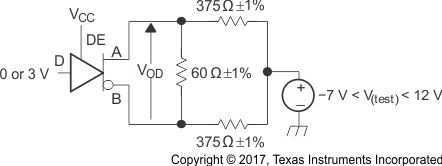

Figure 8-2 Driver
VOD With Common-Mode Loading Test Circuit
Input: PRR = 500
kHz, 50% Duty Cycle, tr < 60 ns, tf < 6 ns
ZO = 50 Ω
Figure 8-3 Test

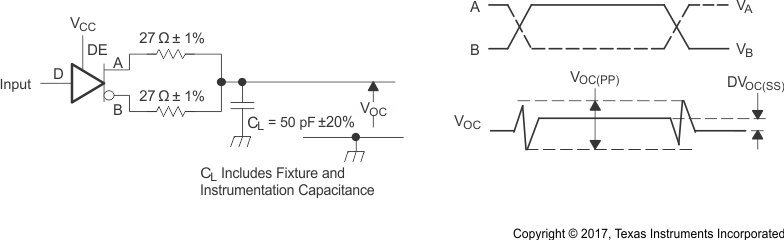

Circuit and Definitions for the Driver Common-Mode Output Voltage
Generator: PRR =
500 kHz, 50% Duty Cycle, tr < 60 ns, tf < 6 ns
ZO = 50 Ω
Figure 8-4 Driver

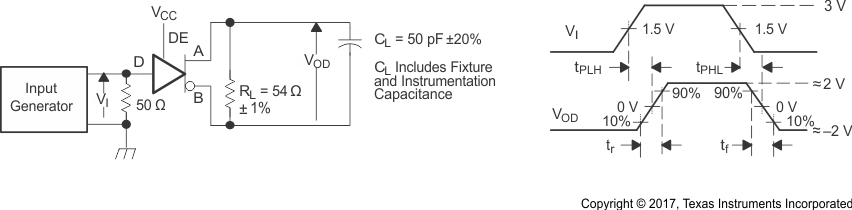

Switching Test Circuit and Voltage Waveforms
Generator: PRR =
500 kHz, 50% Duty Cycle, tr < 60 ns, tf < 6 ns
ZO = 50 Ω
Figure 8-5 Driver

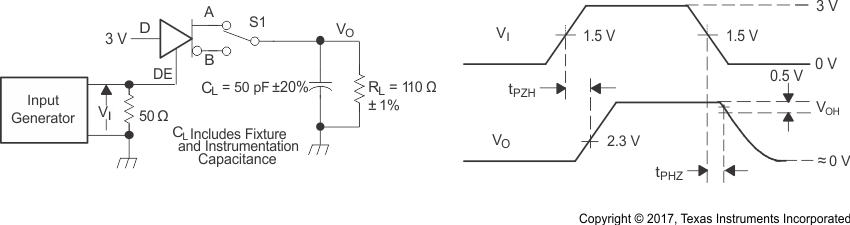

High-Level Enable and Disable Time Test Circuit and Voltage Waveforms
Generator: PRR =
500 kHz, 50% Duty Cycle, tr < 60 ns, tf < 6 ns
ZO = 50 Ω

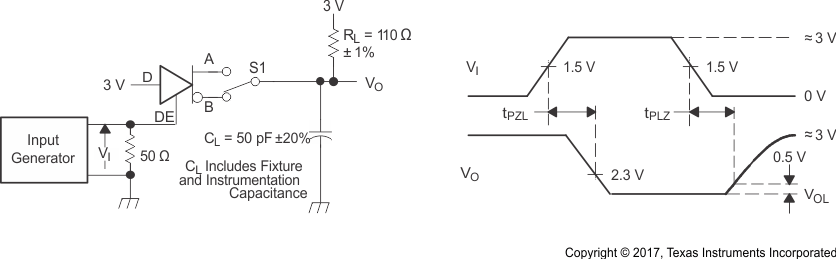

Figure 8-6 Driver
Low-Level Output Enable and Disable Time Test Circuit and Voltage
Waveforms
The time
tPZL(x) is the measure from DE to VOD(x).
VOD is valid when it is greater than 1.5 V.
Figure 8-7 Driver

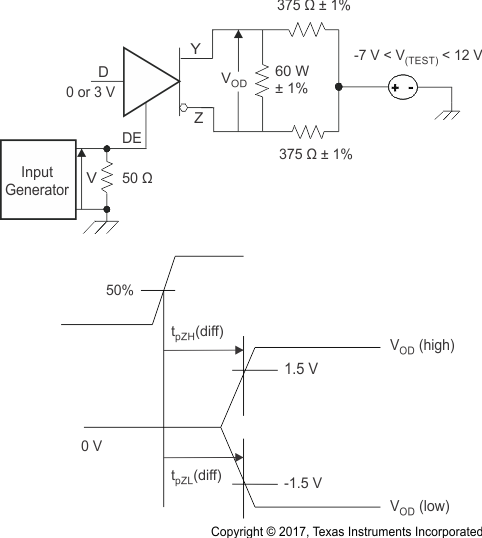

Enable Time from DE to VOD

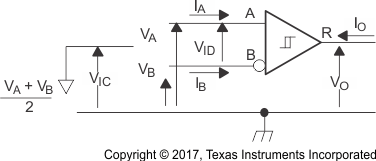

Figure 8-8 Receiver
Voltage and Current Definitions

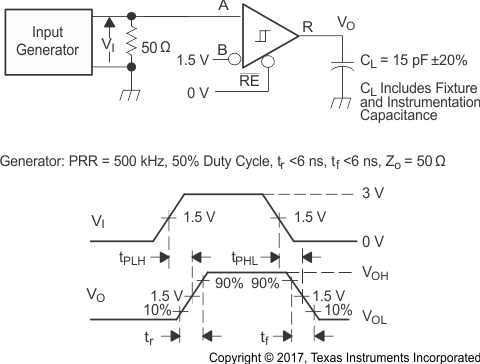

Figure 8-9 Receiver
Switching Test Circuit and Voltage Waveforms
Figure 8-10 Receiver

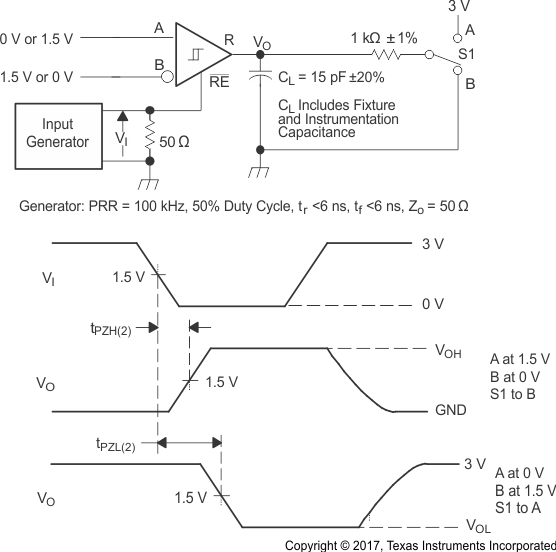

Enable and Disable Time Test Circuit and Voltage Waveforms With Drivers
Enabled

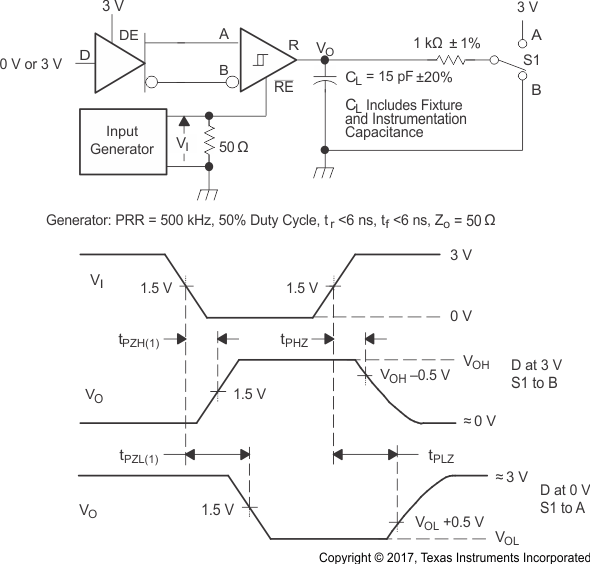

Figure 8-11 Receiver
Enable Time From Standby (Driver Disabled)
NOTE: This test is
conducted to test survivability only. Data stability at the R output is not
specified.
Figure 8-12 Test

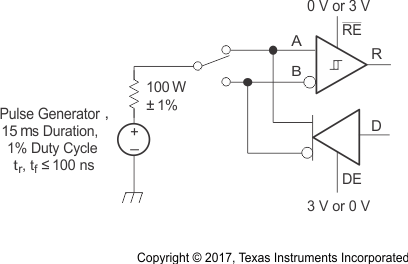

Circuit, Transient Over Voltage Test

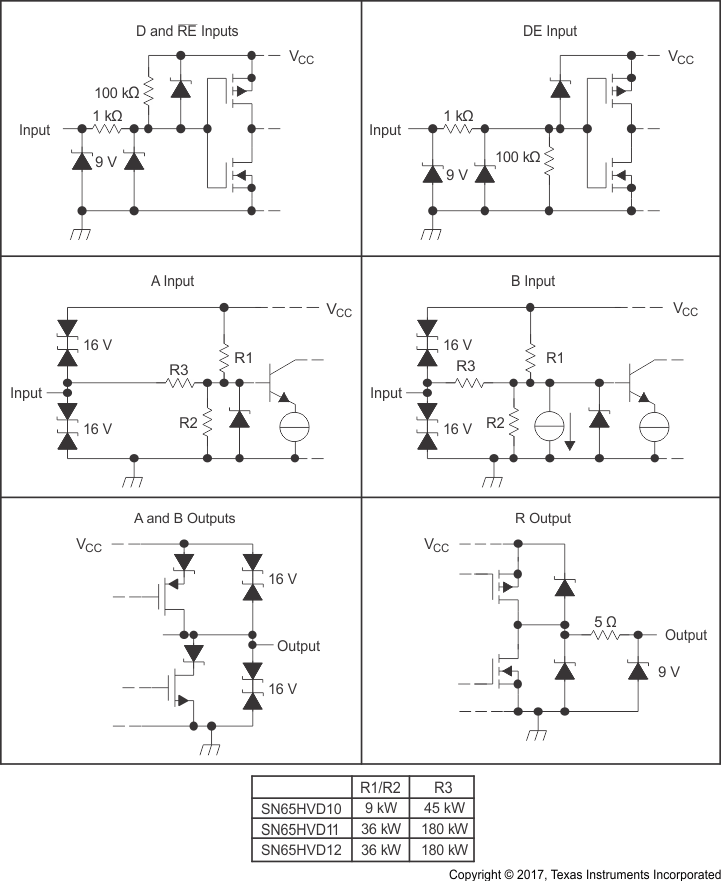

Figure 8-13 Equivalent Input and Output
Schematic Diagrams
