5.9 Typical Characteristics

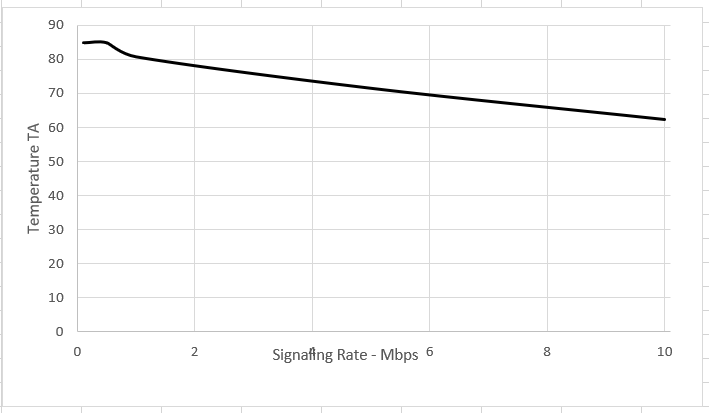

Figure 5-1 HVD05 Maximum Recommended
Still-Air Operating Temperature vs Signaling Rate (D-Package)

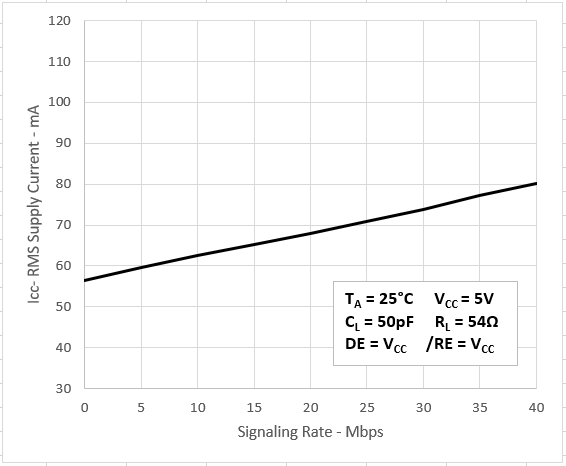

Figure 5-3 HVD05 RMS Supply Current
vs Signaling Rate

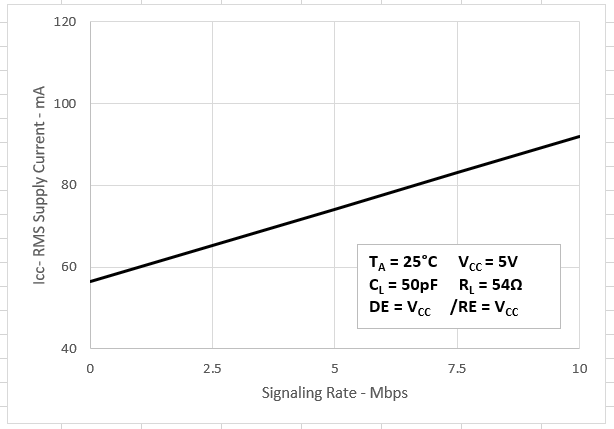

Figure 5-5 HVD07 RMS Supply Current
vs Signaling Rate

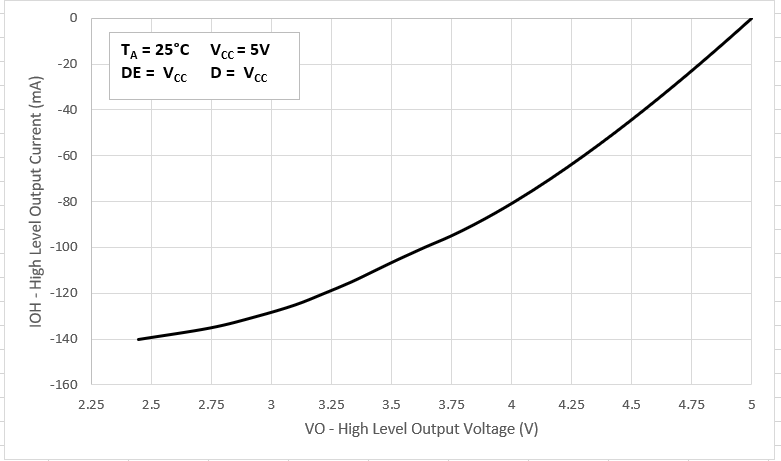

Figure 5-7 Driver High-Level Output
Current vs High-Level Output Voltage

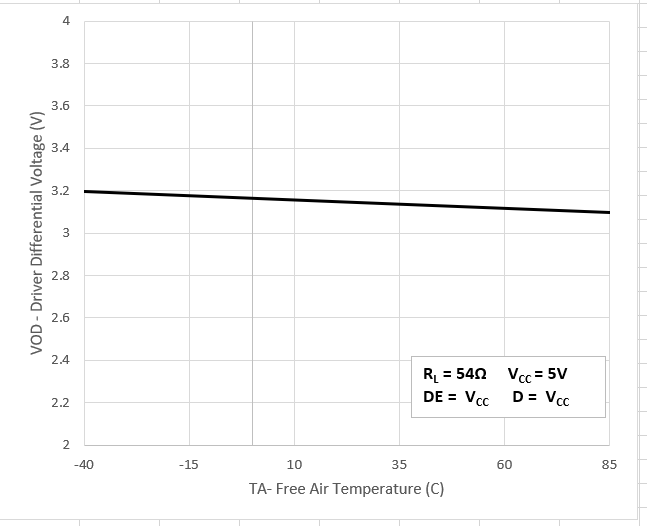

Figure 5-9 Differential Output
Voltage vs Free-Air Temperature

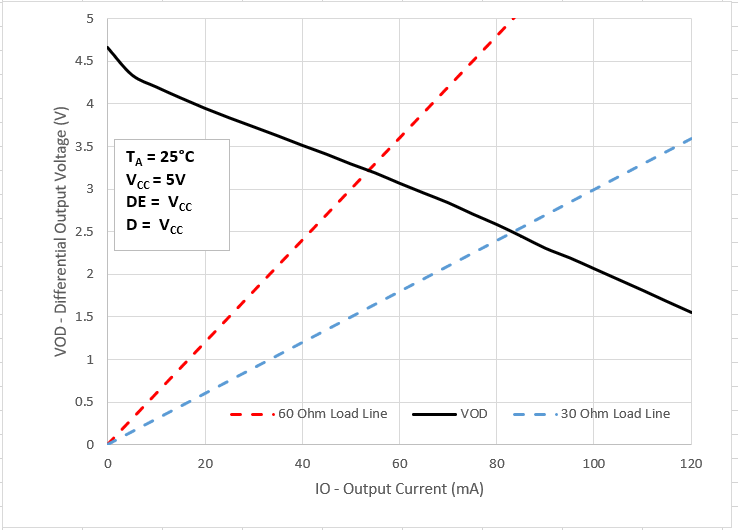

Figure 5-11 Differential Output
Voltage vs Differential Output Current

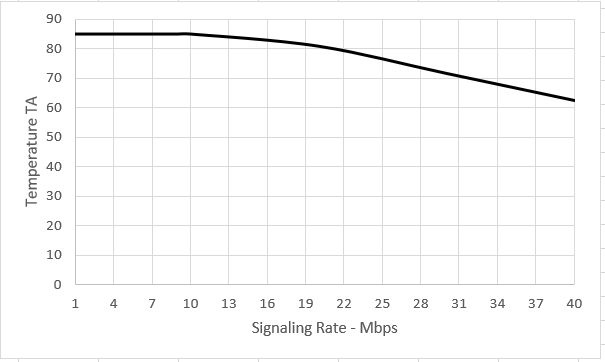

Figure 5-2 HVD06 Maximum Recommended
Still-Air Operating Temperature vs Signaling Rate (D-Package)

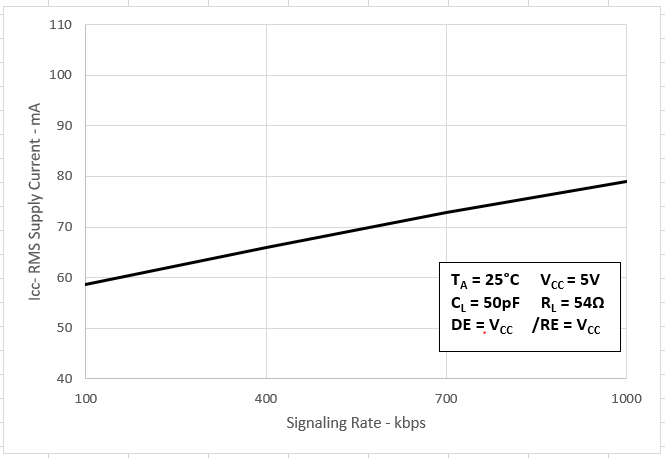

Figure 5-4 HVD06 RMS Supply Current
vs Signaling Rate

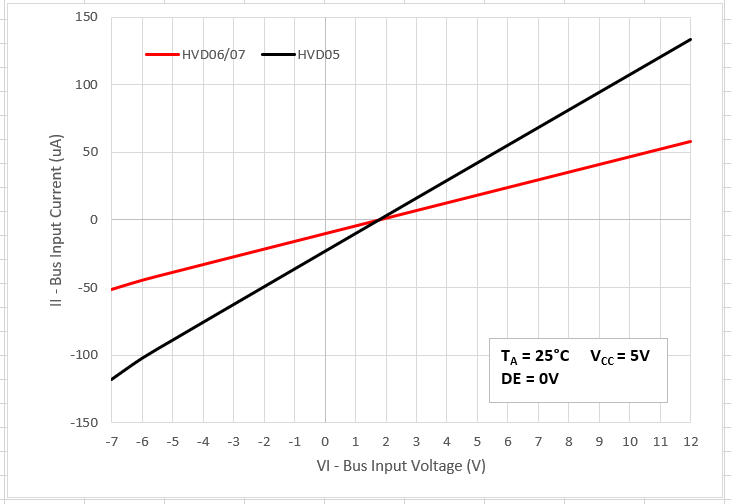

Figure 5-6 BUS Input Current vs BUS
Input Voltage

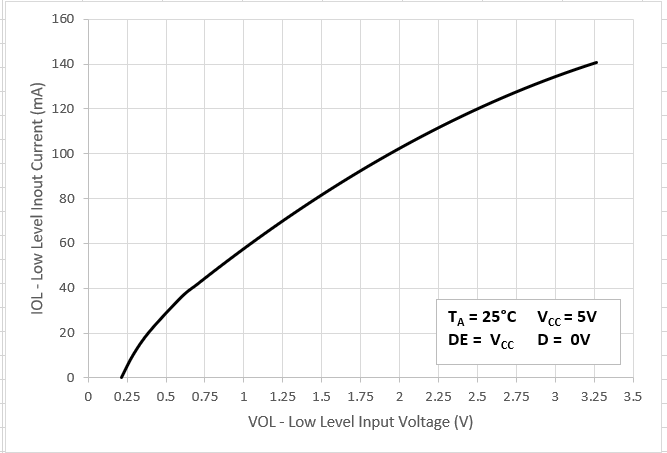

Figure 5-8 Driver Low-Level Output
Current vs Low-Level Output Voltage

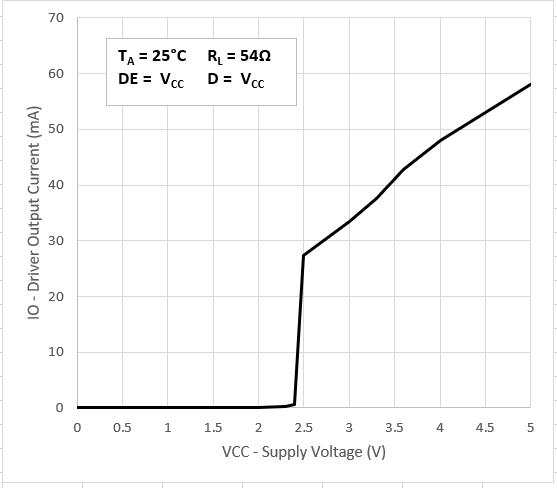

Figure 5-10 Driver Output Current vs
Supply Voltage

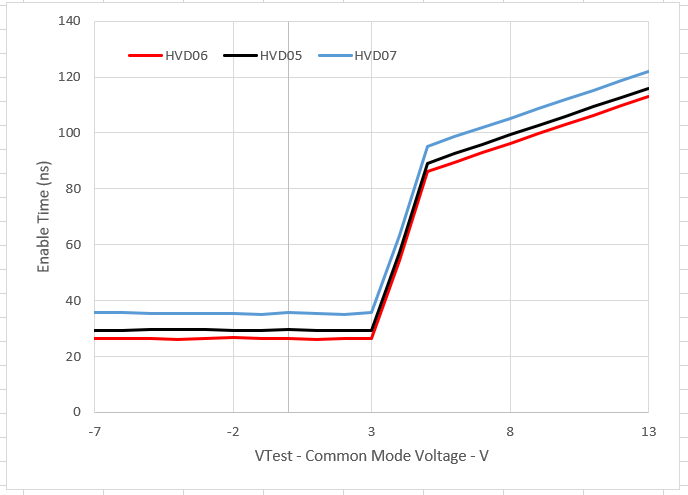

Figure 5-12 Enable Time vs Common-Mode
Voltage(See Figure 5-13)

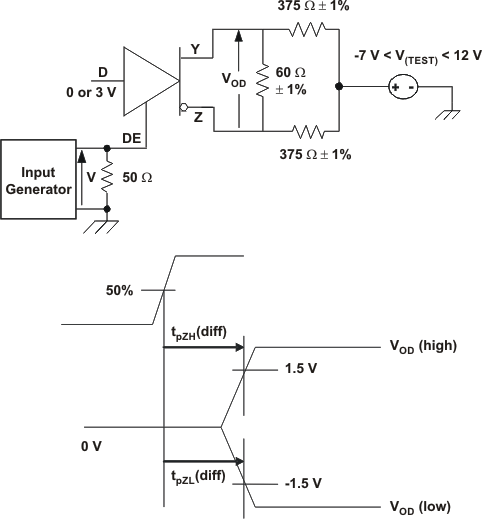

Figure 5-13 Driver Enable Time From DE to VOD
