ZHCSOE2C November 2005 – July 2021 SN65C3221E , SN75C3221E
PRODUCTION DATA
- 1 特性
- 2 應用
- 3 說明
- 4 Revision History
- 5 Device Comparison Table
- 6 Pin Configuration and Functions
-
7 Specifications
- 7.1 Absolute Maximum Ratings
- 7.2 ESD Ratings
- 7.3 ESD Ratings - IEC Specifications
- 7.4 Recommended Operating Conditions
- 7.5 Thermal Information
- 7.6 Electrical Characteristics
- 7.7 Driver Section: Electrical Characteristics
- 7.8 Switching Characteristics: Driver
- 7.9 Receiver Section: Electrical Characteristics
- 7.10 Switching Characteristics: Receiver
- 7.11 Auto-powerdown Section: Electrical Characteristics
- 7.12 Switching Characteristics: Auto-powerdown
- 8 Parameter Measurement Information
- 9 Detailed Description
- 10Application and Implementation
- 11Device and Documentation Support
- 12Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
8 Parameter Measurement Information

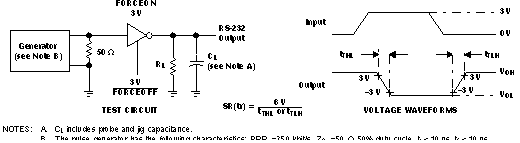

Figure 8-1 Driver
Slew Rate

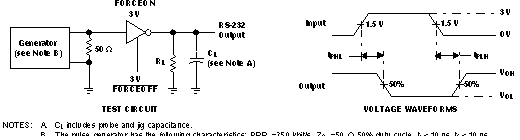

Figure 8-2 Driver
Pulse Skew

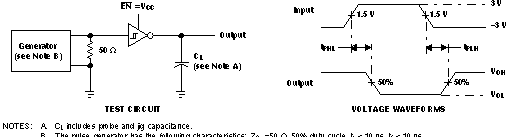

Figure 8-3 Receiver
Propagation Delay Times

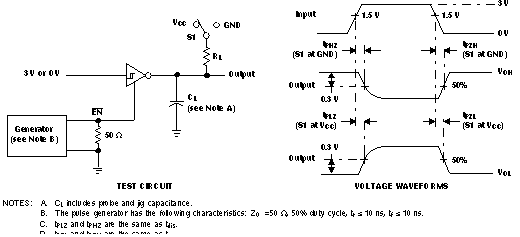

Figure 8-4 Receiver
Enable and Disable Times

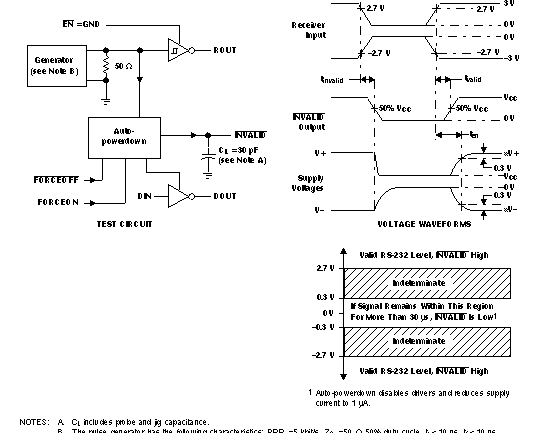

Figure 8-5 INVALID Propagation Delay Times and Driver Enabling
Time
