8 Parameter Measurement Information
Figure 12. Driver Voltage, Current, and Test Definition
Figure 13. Bus Logic State Voltage Definitions

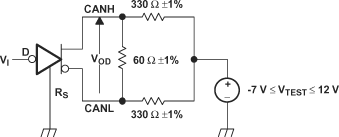

Figure 14. Driver VOD
A. The input pulse is supplied by a generator having the following characteristics:
- Pulse repetition rate (PRR) ≤ 125 kHz, 50% duty cycle
- tr ≤ 6 ns
- tf ≤ 6 ns
- ZO = 50 Ω
B. CL includes fixture and instrumentation capacitance.

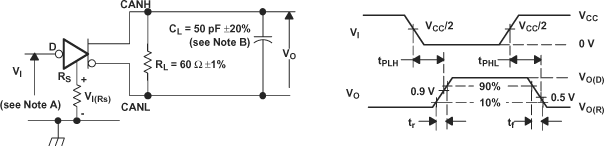

Figure 15. Driver Test Circuit and Voltage Waveforms

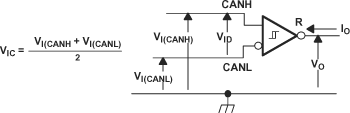

Figure 16. Receiver Voltage and Current Definitions
A. The input pulse is supplied by a generator having the following characteristics:
- PRR ≤ 125 kHz, 50% duty cycle
- tr ≤ 6 ns
- tf ≤ 6 ns
- ZO = 50 Ω
B. CL includes fixture and instrumentation capacitance.

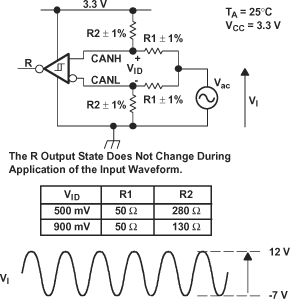

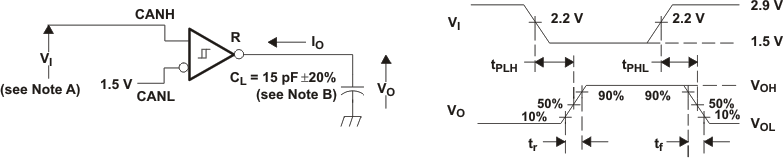

Figure 17. Receiver Test Circuit and Voltage Waveforms Table 1. Differential Input Voltage Threshold Test
| INPUT | OUTPUT | MEASURED | ||
|---|---|---|---|---|
| VCANH | VCANL | R | |VID| | |
| –6.1 V | –7 V | L | VOL | 900 mV |
| 12 V | 11.1 V | L | 900 mV | |
| –1 V | –7 V | L | 6 V | |
| 12 V | 6 V | L | 6 V | |
| –6.5 V | –7 V | H | VOH | 500 mV |
| 12 V | 11.5 V | H | 500 mV | |
| –7 V | –1 V | H | 6 V | |
| 6 V | 12 V | H | 6 V | |
| Open | Open | H | X | |

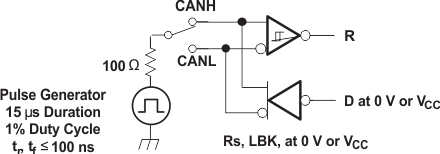

NOTE:
This test is conducted to test survivability only. Data stability at the R output is not specified.

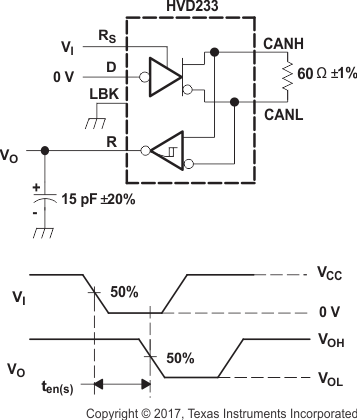

NOTE:
All VI input pulses are supplied by a generator having the following characteristics:- tr or tf ≤ 6 ns
- PRR = 125 kHz, 50% duty cycle
NOTE:
All VI input pulses are supplied by a generator having the following characteristics:- tr or tf ≤ 6 ns
- PRR = 125 kHz, 50% duty cycle
Figure 21. T(loop) Test Circuit and Voltage Waveforms

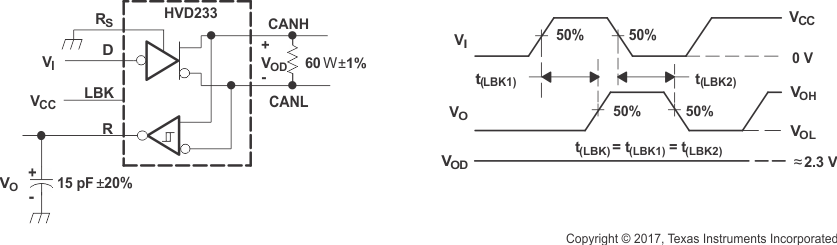

Figure 22. T(LBK) Test Circuit and Voltage Waveforms

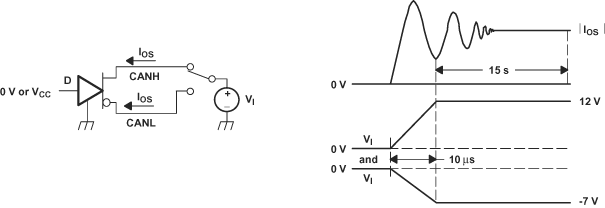

Figure 23. IOS Test Circuit and Waveforms
NOTE:
All input pulses are supplied by a generator with ƒ ≤ 1.5 MHz.
