3 Terminal Configuration and Functions
3.1 Pin Diagrams

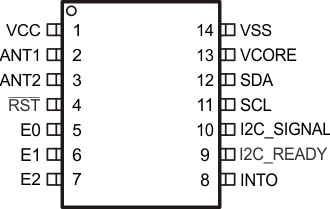

Figure 3-1 shows the pinout for the 14-pin PW package.
Figure 3-1 14-Pin PW Package (Top View)

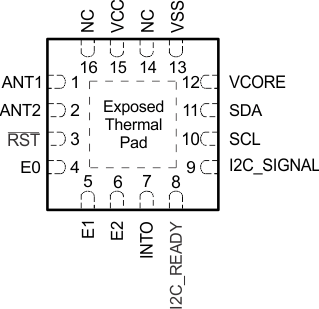

Figure 3-2 shows the pinout for the 16-pin RGT package.
Figure 3-2 16-Pin RGT Package (Top View)
3.2 Pin Attributes
Table 3-1 Pin Attributes
| PIN NUMBER | SIGNAL NAME | SIGNAL TYPE (1) | BUFFER TYPE (2) | POWER SOURCE | RESET STATE (3) | |
|---|---|---|---|---|---|---|
| PW | RGT | |||||
| 1 | 15 | VCC | PWR | Power | VCC | N/A |
| 2 | 1 | ANT1 | RF | Analog | – | N/A |
| 3 | 2 | ANT2 | RF | Analog | – | N/A |
| 4 | 3 | RST | I | LVCMOS | VCC | PU |
| 5 | 4 | E0 | I | LVCMOS | VCC | OFF |
| 6 | 5 | E1 | I | LVCMOS | VCC | OFF |
| 7 | 6 | E2 | I | LVCMOS | VCC | OFF |
| 8 | 7 | INTO | O | LVCMOS | VCC | OFF |
| 9 | 8 | I2C_READY | O | LVCMOS | VCC | DRIVE1 |
| 10 | 9 | I2C_SIGNAL | O | LVCMOS | VCC | DRIVE1 |
| 11 | 10 | SCL | I/O | LVCMOS | VCC | OFF |
| 12 | 11 | SDA | I/O | LVCMOS | VCC | OFF |
| 13 | 12 | VCORE | PWR | Power | VCC | N/A |
| 14 | 13 | VSS | PWR | Power | VCC | N/A |
| – | 14 | NC | – | – | – | – |
| – | 16 | NC | – | – | – | – |
(1) Signal Types: I = Input, O = Output, I/O = Input or Output, PWR = Power, RF = Radio frequency
(2) Buffer Types: See Table 3-3 for details.
(3) Reset States:
OFF = High-impedance input with pullup or pulldown disabled (if available)
PD = High-impedance input with pulldown enabled
PU = High-impedance input with pullup enabled
DRIVE0 = Drive output low
DRIVE1 = Drive output high
N/A = Not applicable
OFF = High-impedance input with pullup or pulldown disabled (if available)
PD = High-impedance input with pulldown enabled
PU = High-impedance input with pullup enabled
DRIVE0 = Drive output low
DRIVE1 = Drive output high
N/A = Not applicable
3.3 Signal Descriptions
Table 3-2 describes the signals.
Table 3-2 Signal Descriptions
| FUNCTION | SIGNAL NAME | PIN NUMBER | I/O (1) | DESCRIPTION | |
|---|---|---|---|---|---|
| PW | RGT | ||||
| Power | VCC | 1 | 15 | PWR | 3.3-V power supply |
| VCORE | 13 | 12 | PWR | Regulated core supply voltage | |
| VSS | 14 | 13 | PWR | Ground supply | |
| RF | ANT1 | 2 | 1 | RF | Antenna input 1 |
| ANT2 | 3 | 2 | RF | Antenna input 2 | |
| Serial communication | E0 | 5 | 4 | I | I2C address select 0 |
| E1 | 6 | 5 | I | I2C address select 1 | |
| E2 | 7 | 6 | I | I2C address select 2 | |
| I2C_READY | 9 | 8 | O | High indicates that I2C communication can be started. Low indicates that I2C communication must not be started. | |
| I2C_SIGNAL | 10 | 9 | O | Low indicates that a wait time extension command is automatically being sent. I2C communication does not have to be stopped. | |
| SCL | 11 | 10 | I/O | I2C clock | |
| SDA | 12 | 11 | I/O | I2C data | |
| System | INTO | 8 | 7 | O | Interrupt output |
| RST | 4 | 3 | I | Reset input (active low) (2) | |
| No connect | NC | – | 14 16 |
– | Leave open, no connection |
(1) I = Input, O = Output, PWR = Power, RF = RF antenna
(2) With integrated pullup
3.4 Pin Multiplexing
None of the pins on this device are multiplexed.
Table 3-3 Buffer Type
| BUFFER TYPE (STANDARD) | NOMINAL VOLTAGE | HYSTERESIS | PU OR PD | NOMINAL PU OR PD STRENGTH (µA) | OUTPUT DRIVE STRENGTH (mA) | OTHER CHARACTERISTICS |
|---|---|---|---|---|---|---|
| LVCMOS | 3.3 V | Y | N/A | See Section 4.6, Electrical Characteristics, Digital Inputs | See Section 4.7, Electrical Characteristics, Digital Outputs | |
| Analog, RF | 3.3 V | N | N/A | N/A | N/A | See analog modules in Section 4, Specifications, for details |
| Power | 3.3 V | Y with SVS on | N/A | N/A | N/A |
3.5 Connections for Unused Pins
Leave no connect (NC) pins unconnected.
Leave unused outputs unconnected.
Drive or pull unused inputs high or low.
