ZHCSXB8E April 2003 – November 2024 RC4580
PRODUCTION DATA
- 1
- 1 特性
- 2 應用
- 3 說明
- 4 Pin Configuration and Functions
- 5 Specifications
- 6 Detailed Description
- 7 Application and Implementation
- 8 Device and Documentation Support
- 9 Revision History
- 10Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- D|8
- P|8
- DDF|8
- DGK|8
- PW|8
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
5.7 Typical Characteristics

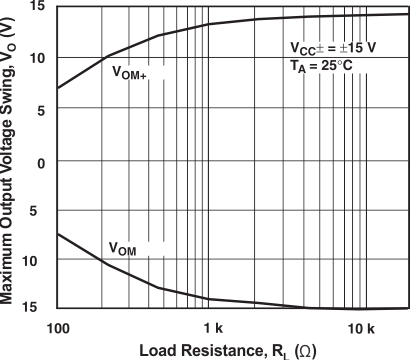

Figure 5-1 Maximum Output Voltage Swing vs Load Resistance

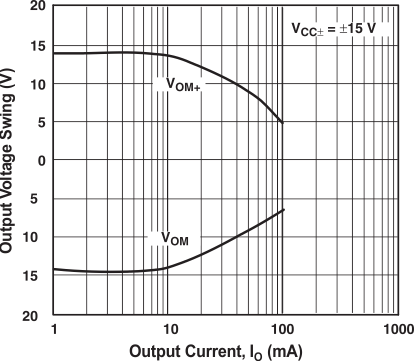

Figure 5-3 Output Voltage Swing vs Output Current

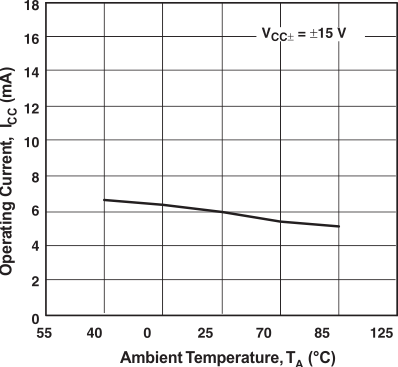

Figure 5-5 Operating Current vs Temperature

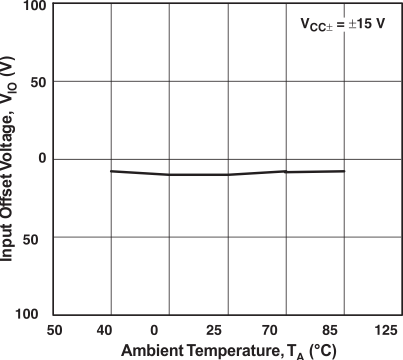

Figure 5-7 Input Offset Voltage vs Temperature

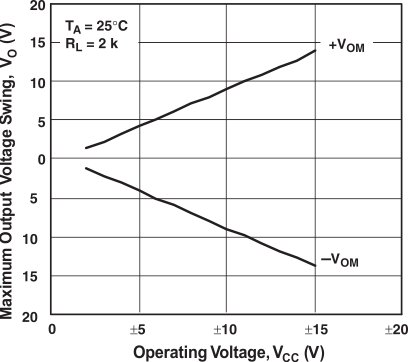

Figure 5-9 Maximum Output Voltage Swing vs Operating Voltage

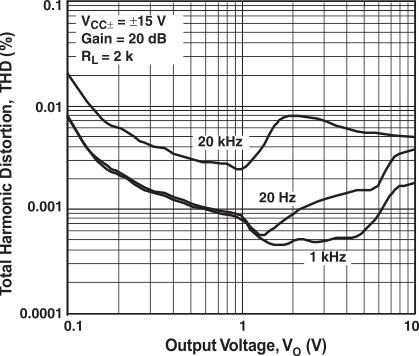

Figure 5-11 Total Harmonic Distortion vs Output Voltage

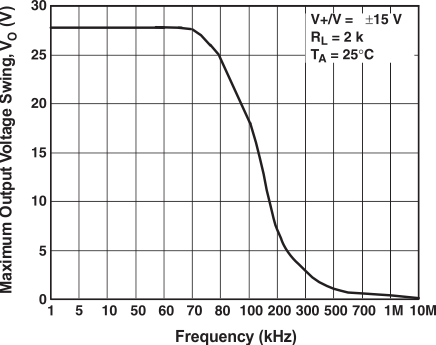

Figure 5-2 Maximum Ouput Voltage Swing vs Frequency
Figure 5-4 Equivalent Input Noise Voltage vs Frequency

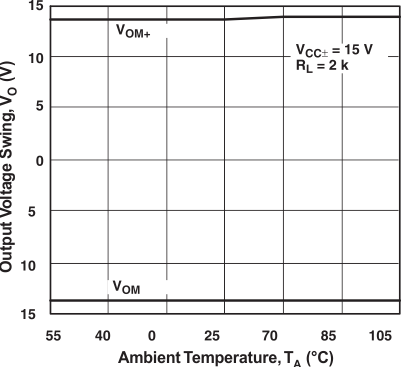

Figure 5-6 Output Voltage Swing vs TemperatureFigure 5-8 Input Bias Current vs Temperature

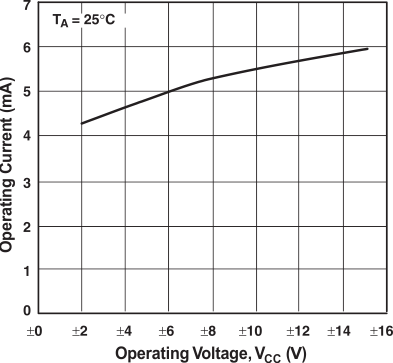

Figure 5-10 Operating Current vs Operating Voltage

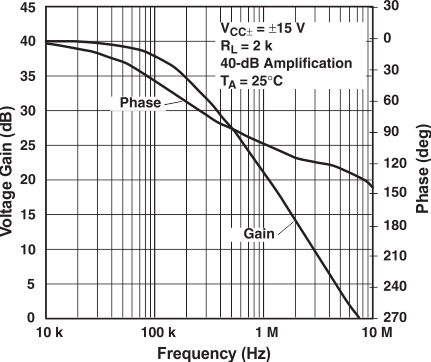

Figure 5-12 Voltage Gain, Phase vs Frequency
