7.1.3 Application Curves
The measured transfer functions in Figure 7-2, Figure 7-3, and Figure 7-4 were generated by sweeping the input voltage from 0V to 12V. However, this design should only be used between 2V and 10V for optimum linearity.

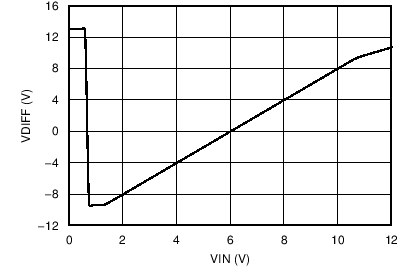

Figure 7-2 Differential Output Voltage vs Input Voltage
Figure 7-4 Positive Output Voltage vs Input Voltage

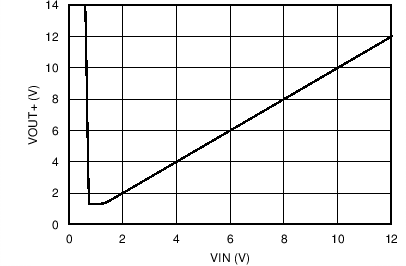

Figure 7-3 Positive Output Voltage vs Input Voltage
