9.1.1.7.1.2 Current Sharing Layout
In current sharing applications the VI pins of both modules must be connected to the same input bus. The VO pins of both modules are connected together to power the load. The GND pins of both modules are connected via the GND plane. Four other inter-connection pins are connected between the modules. Figure 27 shows the required layout of the inter-connection pins for two modules configured to share current. Notice that the Share (pin 2) connection is routed between the Comp (pin 3) and CLKIO (pin 5) connections. AGND (pin 4) should be connected as a thicker trace on an adjacent layer, running parallel to pins 2, 3 and 5. AGND must not be connected to the GND plane.

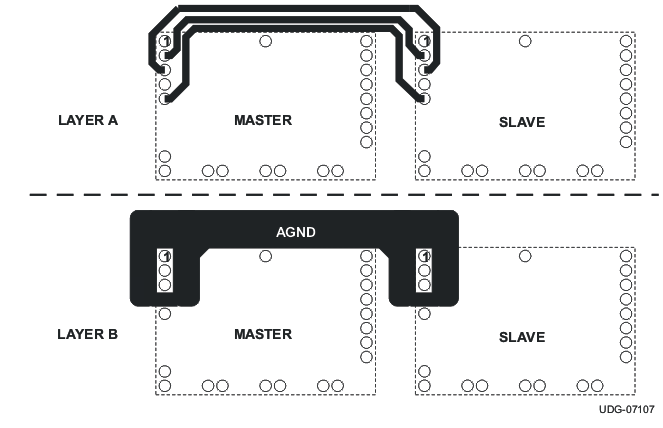

Figure 27. Recommended Layout of Inter-Connection Pins Between Two Current Sharing Modules
