3 說明
PCM5120-Q1 是一款高性能 Burr-Brown? 音頻模數轉換器 (ADC)，最多可支持對脈沖密度調制 (PDM) 麥克風輸入的兩個模擬通道或四個數字通道進行同步采樣。該器件支持線路和麥克風輸入，并能夠實現單端和差分輸入配置。該器件集成了可編程通道增益、數字音量控制、可編程麥克風偏置電壓、鎖相環 (PLL)、可編程高通濾波器 (HPF)、雙二階濾波器、低延遲濾波器模式，并可實現高達 768kHz 的采樣率。該器件支持時分多路復用 (TDM)、I2S 或左對齊 (LJ) 音頻格式，并可通過 I2C 接口進行控制。這些集成的高性能特性，以及采用 3.3V 或 1.8 V 單電源供電的功能，使該器件非常適用于遠場麥克風錄音應用中空間受限的音頻系統。
PCM5120-Q1 的額定工作溫度范圍為 –40°C 至 +125°C，并且采用 20 引腳 WQFN 封裝。
器件信息
| 器件型號(1) | 封裝 | 封裝尺寸（標稱值） |
|---|---|---|
| PCM5120-Q1 | WQFN (20) | 3.00mm × 3.00mm，間距為 0.5mm |
(1) 如需了解所有可用封裝，請參閱數據表末尾的封裝選項附錄。

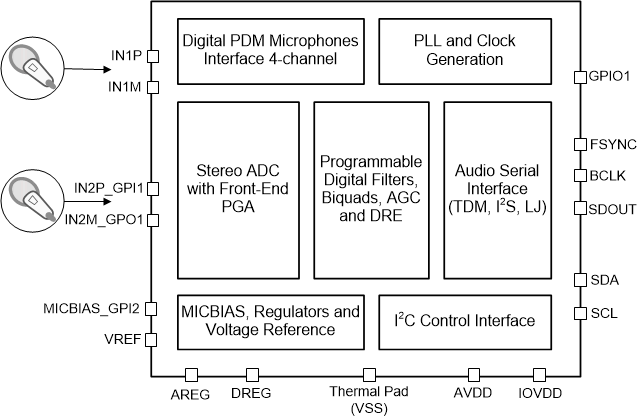

簡化版方框圖
