9.1.1 Typical Application

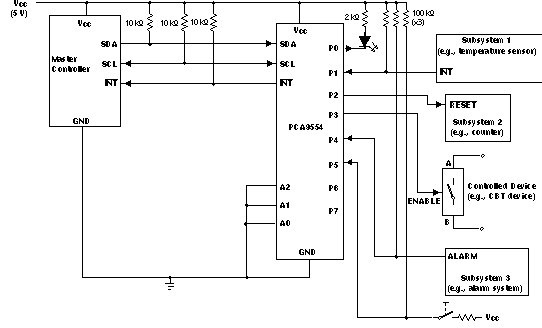

Figure 9-1 shows an application in which the PCA9554 can be used.
Device address is configured as
0100000 for this example.
P0, P2, and P3 are configured as
outputs.
P1, P4, and P5 are configured as
inputs.
P6 and P7 are not used and and
have internal 100-k? pullup resistors to protect them from floating.
Figure 9-1 Typical
Application
