7.1 Application Information
The OPA627 and OPA637 are an excellent choice to use as input amplifiers in instrumentation amplifier configurations requiring high speed, fast settling and high input impedance.
Figure 7-1 High Speed Instrumentation Amplifier, Gain = 100

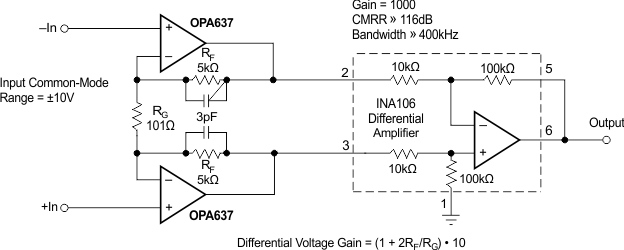

Figure 7-2 High Speed Instrumentation Amplifier, Gain = 1000

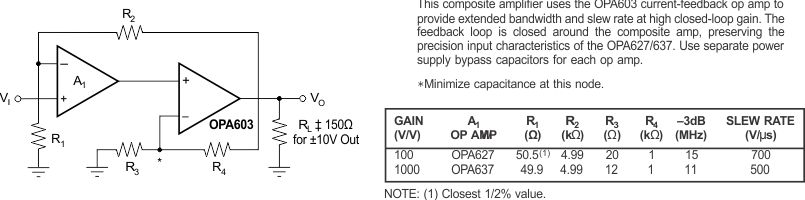

Figure 7-3 Composite Amplifier for Wide Bandwidth

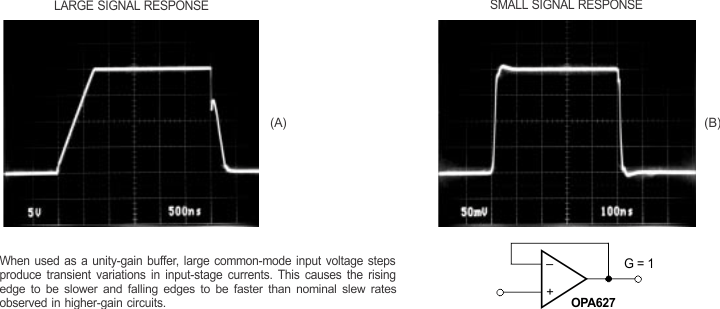

Figure 7-4 OPA627 Dynamic Performance, G = 1

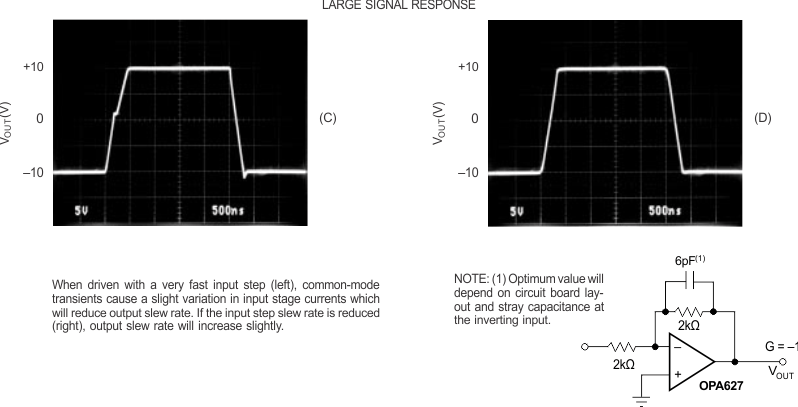

Figure 7-5 OPA627 Dynamic Performance, G = –1

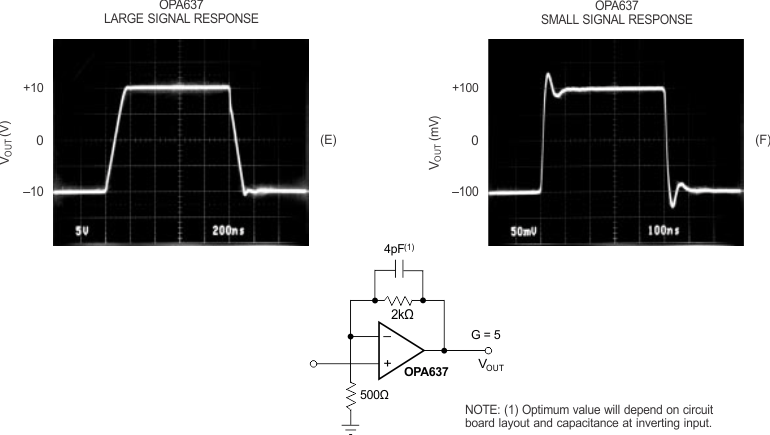

Figure 7-6 OPA637 Dynamic Response, G = 5
