6 Parameter Measurement Information

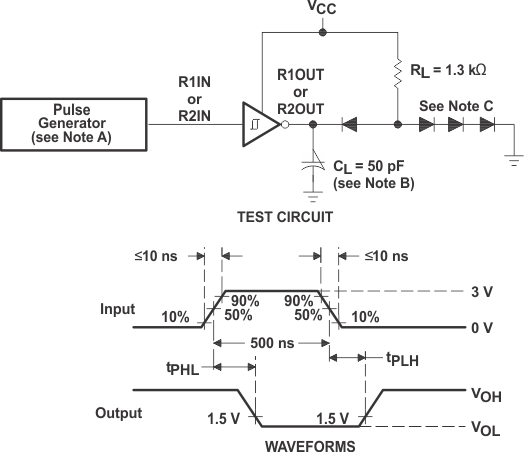

A. The pulse generator has the
following characteristics: ZO = 50Ω, duty cycle ≤ 50%.
B. CL includes probe
and jig capacitance.
C. All diodes are 1N3064 or
equivalent.
Figure 6-1 Receiver Test Circuit and Waveforms for tPHL and tPLH
Measurements

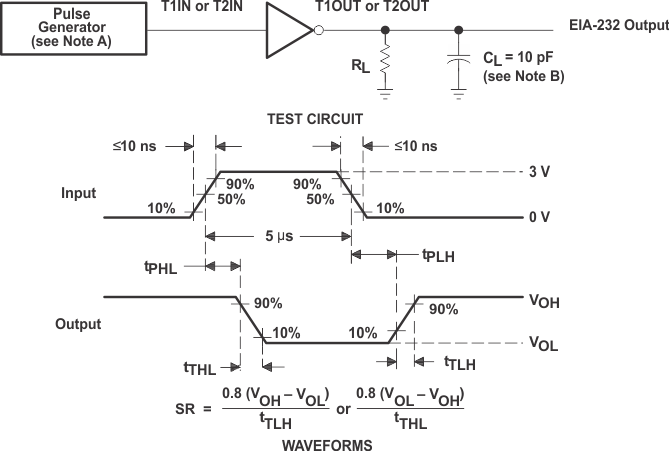

A. The pulse generator has the
following characteristics: ZO = 50Ω, duty cycle ≤ 50%.
B. CL includes probe
and jig capacitance.
Figure 6-2 Driver Test Circuit and Waveforms for tPHL and tPLH
Measurements (5μs Input)
A. The pulse generator has the
following characteristics: ZO = 50Ω, duty cycle ≤ 50%.

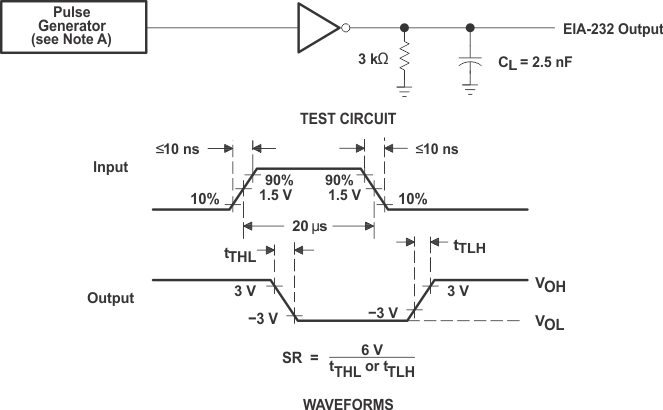

Figure 6-3 Test
Circuit and Waveforms for tTHL and tTLH Measurements
(20μs Input)
