ZHCSUS6G July 2003 – February 2024 MAX202
PRODUCTION DATA
- 1
- 1 特性
- 2 應用
- 3 說明
- 4 Pin Configuration and Functions
- 5 Specifications
- Parameter Measurement Information
- 6 Detailed Description
- 7 Application and Implementation
- 8 Device and Documentation Support
- 9 Revision History
- 10Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
散熱焊盤機械數據 (封裝 | 引腳)
- DW|16
訂購信息
5.7 Typical Characteristics
at TA = 25°C (unless otherwise noted)

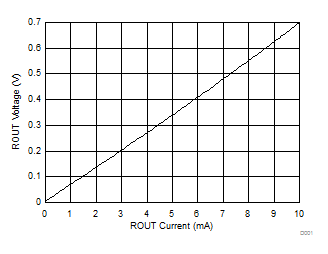

Figure 5-1 Receiver VOL vs Output Current
Figure 5-3 Driver VOL vs Output Current

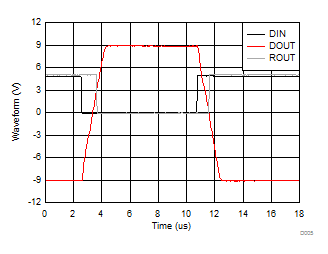

Figure 5-5 Driver and Receiver Loopback Waveforms

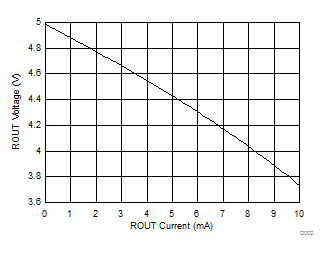

Figure 5-2 Receiver VOH vs Output Current

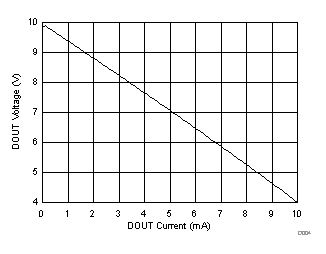

Figure 5-4 Driver VOH vs Output Current
