6.4.3 Truth Tables
Table 6-1 and Table 6-2 list the function for each driver and receiver (respectively).
Table 6-1 Function Table for Each
Driver
| INPUT DIN(1) |
OUTPUT DOUT |
|---|---|
| L | H |
| H | L |
(1) H = high level, L = low level
Table 6-2 Function Table for Each
Receiver
| INPUT RIN(1) |
OUTPUT ROUT |
|---|---|
| L | H |
| H | L |
| Open | H |
(1) H = high level, L = low level,
Open = input disconnected or connected driver off
Open = input disconnected or connected driver off

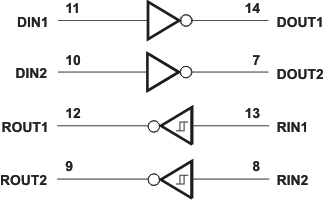

Figure 6-1 Logic Diagram (Positive Logic)
