10.3 Theta JA vs PCB Area
The amount of PCB copper effects the thermal performance of the device. Figure 52 shows the effects of copper area on the junction-to-ambient thermal resistance (RθJA) of the LMZM33604. The junction-to-ambient thermal resistance is plotted for a 4-layer PCB and a 6-layer PCB with PCB area from 16 cm2 to 100 cm2.
To determine the required copper area for an application:
- Determine the maximum power dissipation of the device in the application by referencing the power dissipation graphs in the Typical Characteristics section.
- Calculate the maximum θJA using Equation 8 and the maximum ambient temperature of the application.
- Reference Figure 52 to determine the minimum required PCB area for the application conditions.
Equation 8.

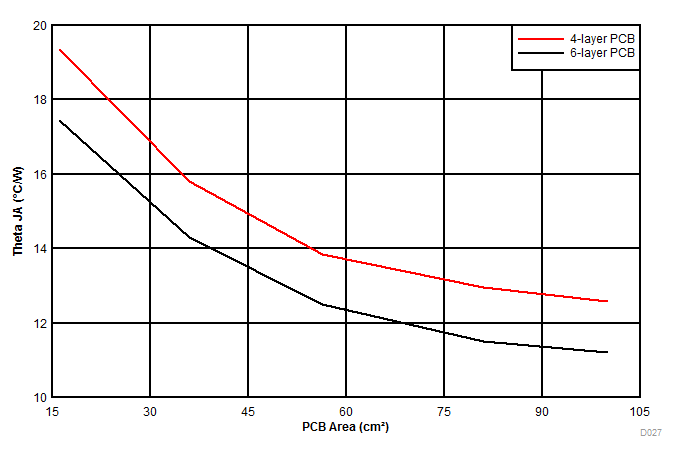

Figure 52. θJA vs PCB Area
