ZHCSHO0C February 2018 – March 2023 LMZM23600
PRODUCTION DATA

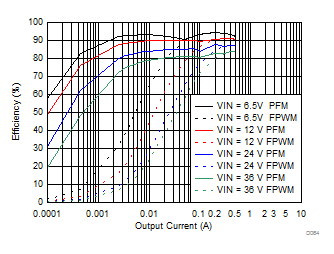

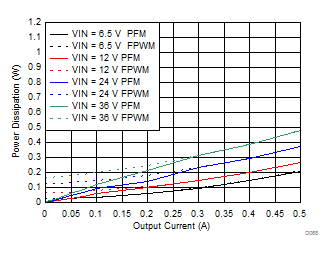

| MODE = Low for Auto PFM Mode | 5-V Fixed Output | |
| MODE = High for FPWM Mode | ||

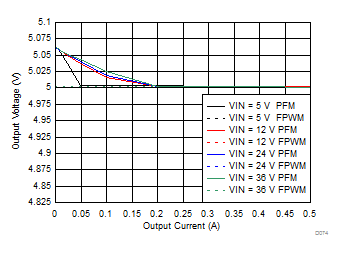

Figure 9-44 Line and Load Regulation for VOUT = 5 V
| MODE = Low for Auto PFM Mode | 5-V Fixed Output | |
| MODE = High for FPWM Mode | ||

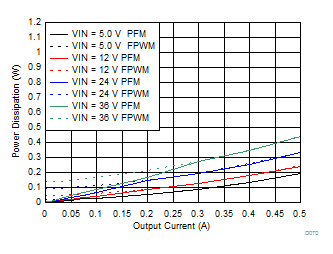

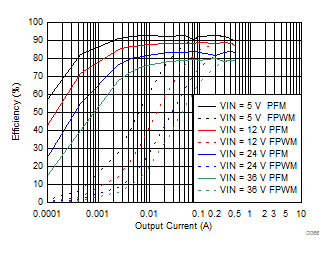

| MODE = Low for Auto PFM Mode | 3.3-V Fixed Output | |
| MODE = High for FPWM Mode | ||

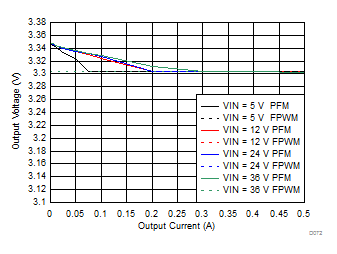

Figure 9-45 Line and Load Regulation for VOUT = 3.3 V
| MODE = Low for Auto PFM Mode | 3.3-V Fixed Output | |
| MODE = High for FPWM Mode | ||
