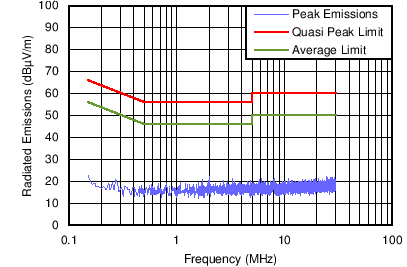

6.7 Typical Characteristics
Unless otherwise specified the following conditions apply: VIN = 3.6 V, TA = 25°C
Figure 6-1 Output Voltage Ripple VIN = 5 V, VOUT = 1.8 V, IOUT = 650 mA

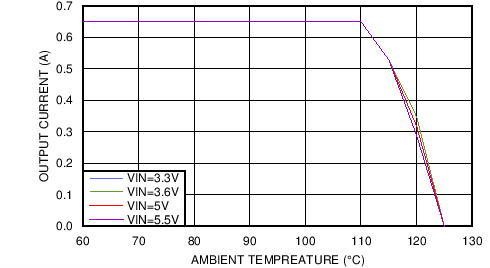

Figure 6-3 Thermal Derating VOUT = 1.2 V, θJA = 77°C/W

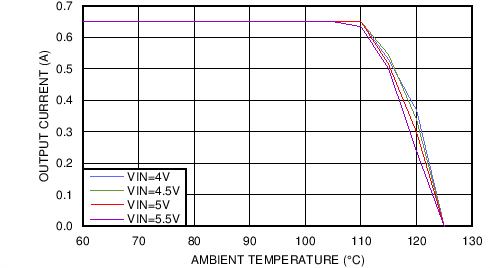

Figure 6-5 Thermal Derating VOUT = 2.5 V, θJA = 77°C/W
| VIN = 5 V | VOUT = 1.8 V | IOUT = 650 mA |
Figure 6-9 Startup

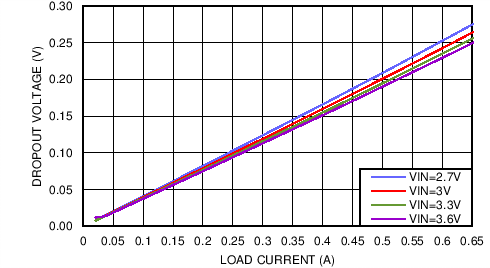

Figure 6-2 Dropout Voltage vs Load Current and Input Voltage

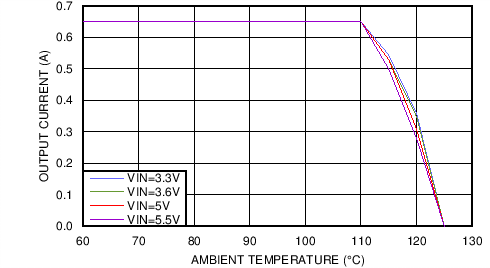

Figure 6-4 Thermal Derating VOUT = 1.8 V, θJA = 77°C/W

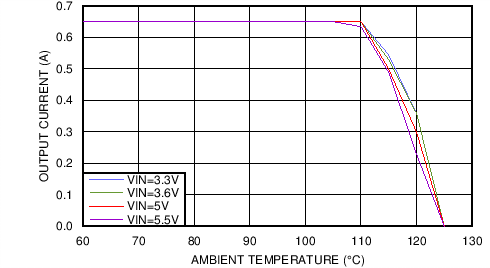

Figure 6-6 Thermal Derating VOUT = 3.3 V, RθJA = 77°C/W
| VIN = 5 V | VOUT = 1.8 V | IOUT = 650 mA |
