9.2 Typical Application

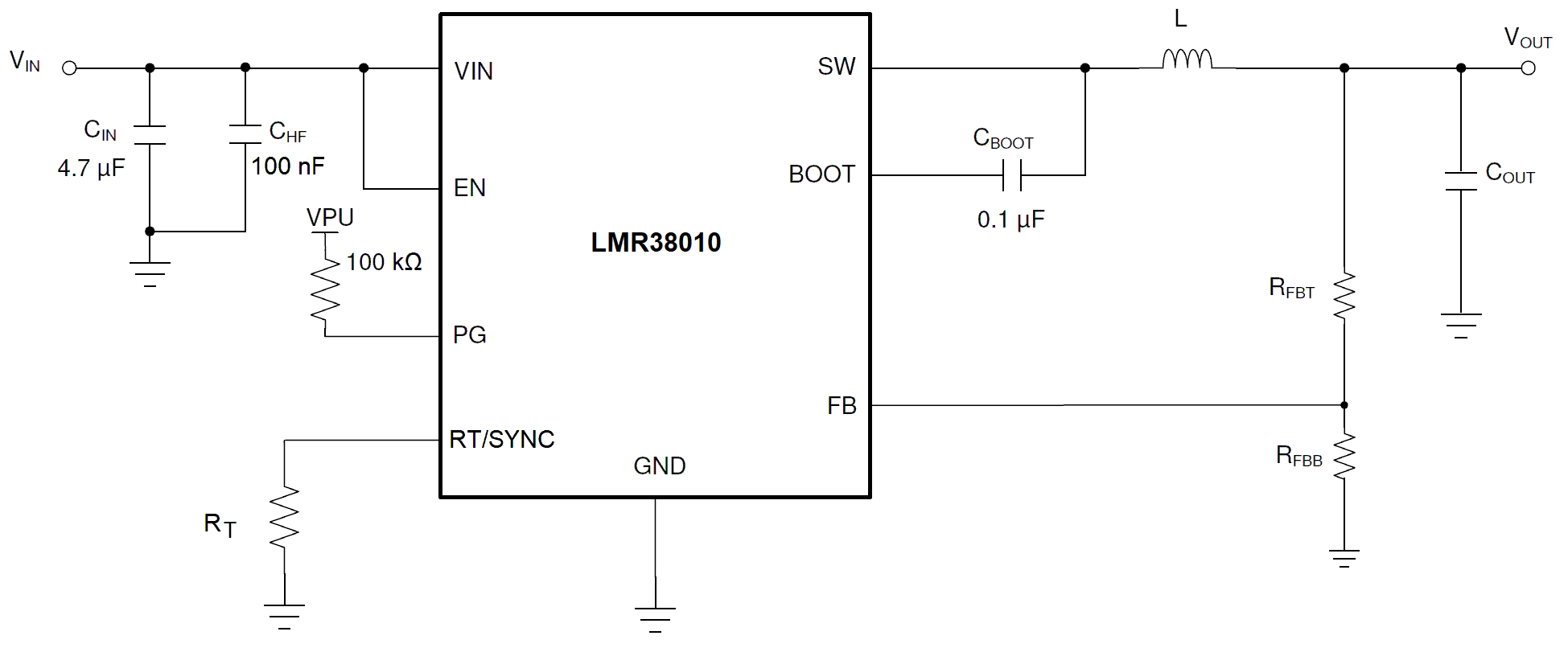

Figure 9-1 shows a typical application circuit for the LMR38010. This device is designed to function over a wide range of external components and system parameters. However, the internal compensation is optimized for a certain range of external inductance and output capacitance. As a quick-start guide, Table 9-1 provides typical component values for a range of the most common output voltages.
Figure 9-1 Example Application CircuitTable 9-1 Typical External Component Values for 1-A Output Current
| ?SW (kHz) | VIN (V) Typical | VOUT (V) | L (μH) | NOMINAL COUT (RATED CAPACITANCE) | MINIMUM COUT (RATED CAPACITANCE) | RFBT (Ω) | RFBB (Ω) |
|---|---|---|---|---|---|---|---|
| 400 | 48 | 5 | 33 | 3 × 22 μF | 2 × 22 μF | 100 k | 24.9 k |
1000 | 24 | 5 | 10 | 2 × 22 μF | 2 × 15 μF | 100 k | 24.9 k |
| 400 | 48 | 12 | 68 | 1× 22 μF | 1 × 15 μF | 100 k | 9.09 k |
1000 | 24 | 12 | 15 | 2 × 10 μF | 1 × 10 μF | 100 k | 9.09 k |
| 500 | 48 | 24 | 68 | 1 × 22 μF | 1 × 15 μF | 100 k | 4.32 k |
