9.2.3 Application Curves

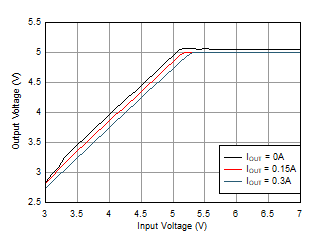

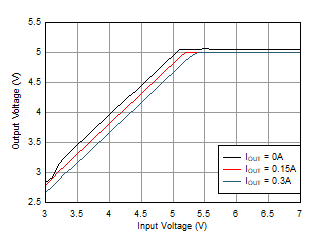

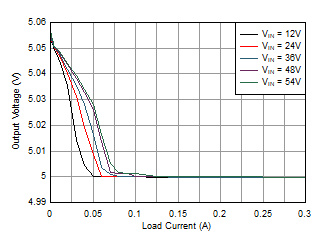

Unless otherwise specified the following conditions apply: VIN
= 24V, TA = 25°C. Figure 9-16shows the circuit with the appropriate BOM in Table 9-3

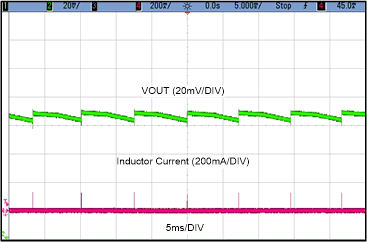

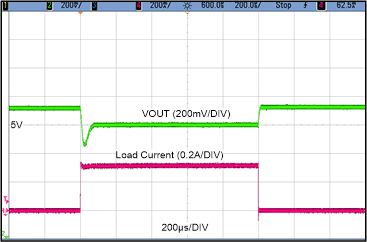

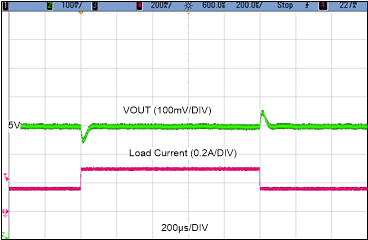

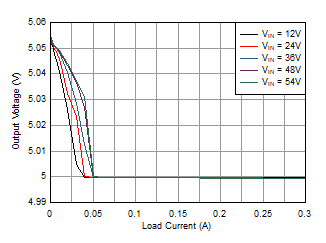

Unless otherwise specified the following conditions apply: VIN
= 24V, TA = 25°C. Figure 9-16shows the circuit with the appropriate BOM in Table 9-3

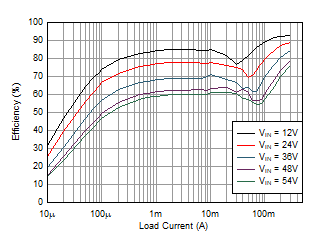

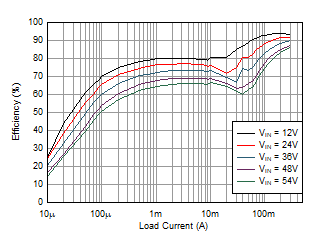

Figure 9-4 Efficiency. Unless otherwise specified the following conditions apply: VIN
= 24V, TA = 25°C. Figure 9-16shows the circuit with the appropriate BOM in Table 9-3
| LMR36503R5 | VOUT = 5 V Fixed | 400 kHz (AUTO) |

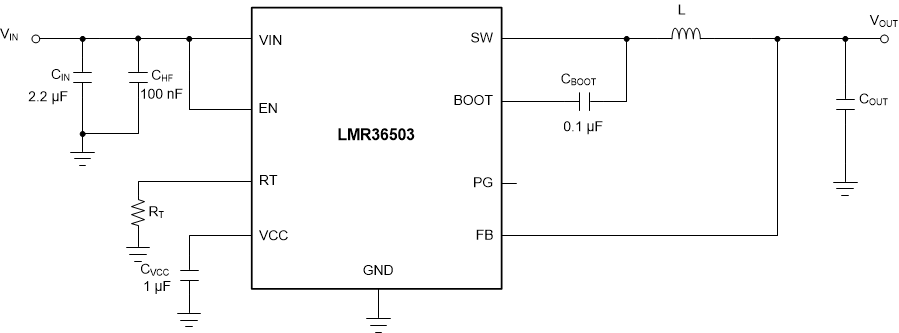

Figure 9-16 Schematic for Typical
Application CurvesTable 9-3 BOM for Typical Application Curves
| U1 | ?SW | VOUT | L | NOMINAL COUT
(RATED CAPACITANCE) |
RT pin |
|---|---|---|---|---|---|
| LMR36503R5RPER | 400 kHz | 5 V | 100 μH, 380 mΩ | 2 × 22 μF | 39.2kΩ |
| LMR36503R5RPER | 1 MHz | 5 V | 47 μH, 84 mΩ | 1 × 22 μF | Short to VCC |
