7.9 Typical Characteristics
Unless otherwise specified, the following conditions apply: TA = 25°C, VIN = 13.5 V.
| VOUT = 5 V Fixed | FSW = 400 kHz (Auto) |

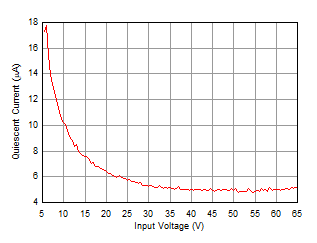

Figure 7-3 Typical Input
Supply Current at No Load for Fixed 5-V Output
| VOUT = 5 V Fixed | FSW-NOM = 1 MHz (Auto) |
