9.2.3.3 Application Curves
Unless otherwise specified the following conditions apply: VIN = 12 V, TA = 25°C. The circuit is shown in Figure 18, with the appropriate BOM from Table 7.

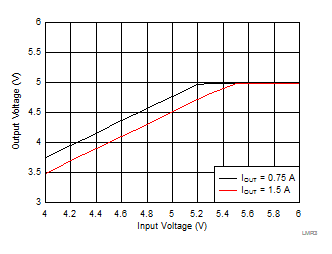

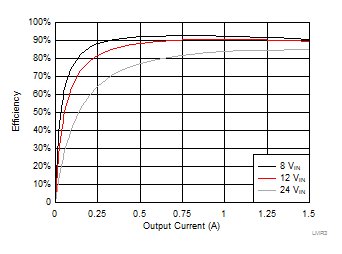

| VOUT = 5 V | 2100 kHz |

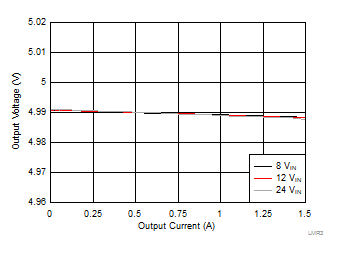

| VOUT = 5 V | 2100 kHz |

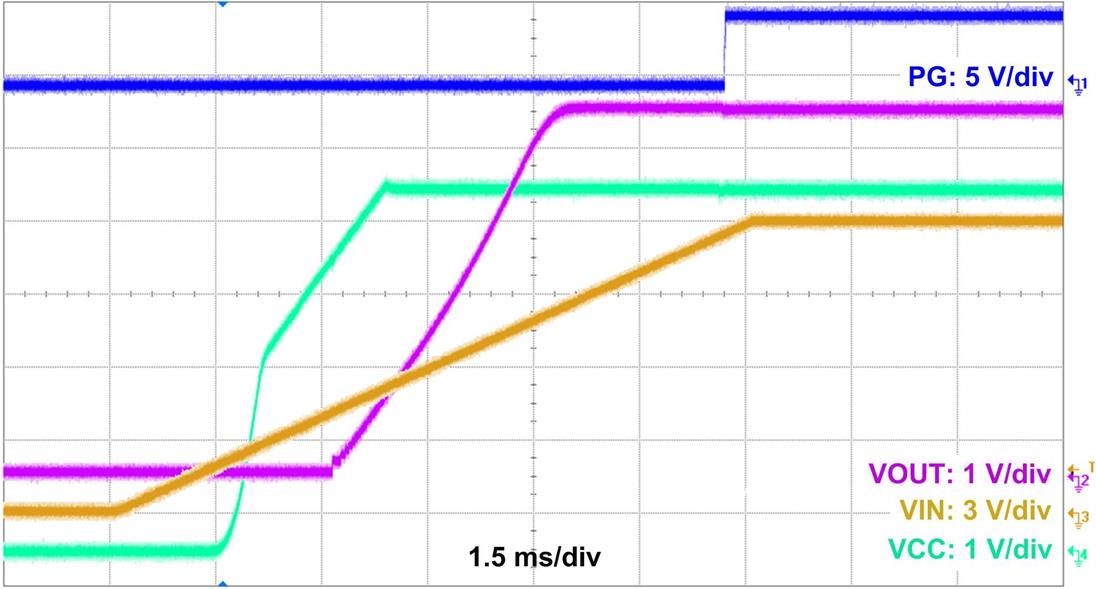

| VOUT = 5 V | IOUT = 0 A | RFBT = 100 kΩ |

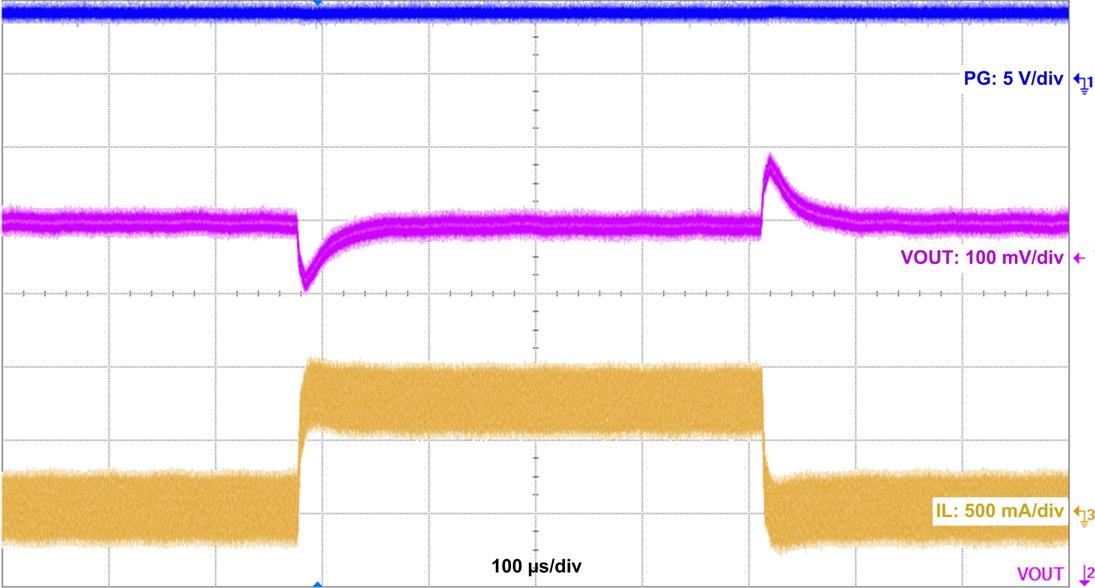

| VOUT = 5 V | Slew Rate = 1 µs/A | 2100 kHz | ILOAD= 0 A - 0.75 A |

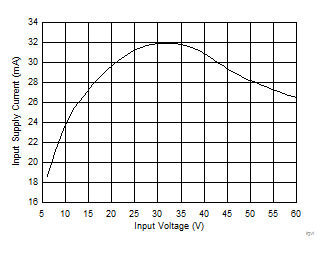

| VOUT = 5 V | 2100 kHz |

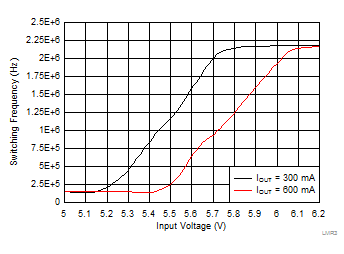

| VOUT = 5 V | 2100 kHz |
| VOUT = 5 V | 2100 kHz |
