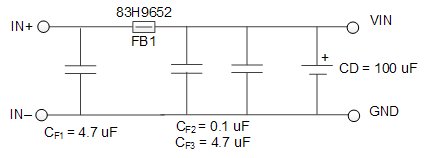

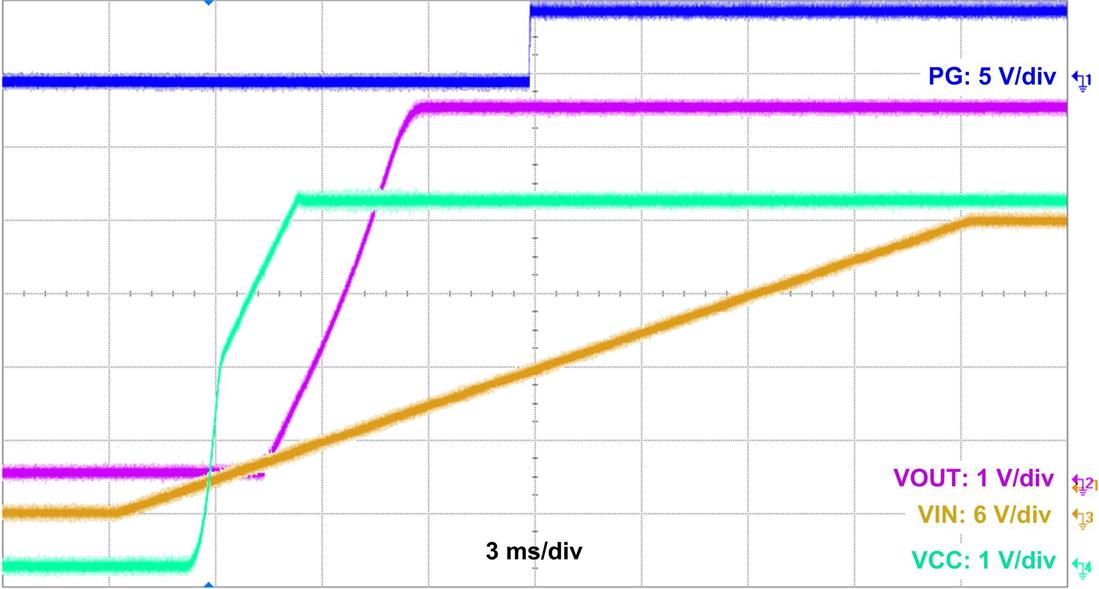

9.2.2 Application Curves

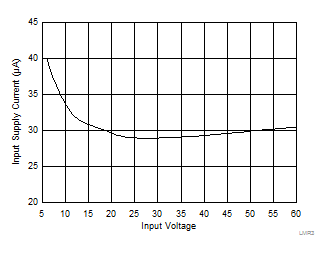

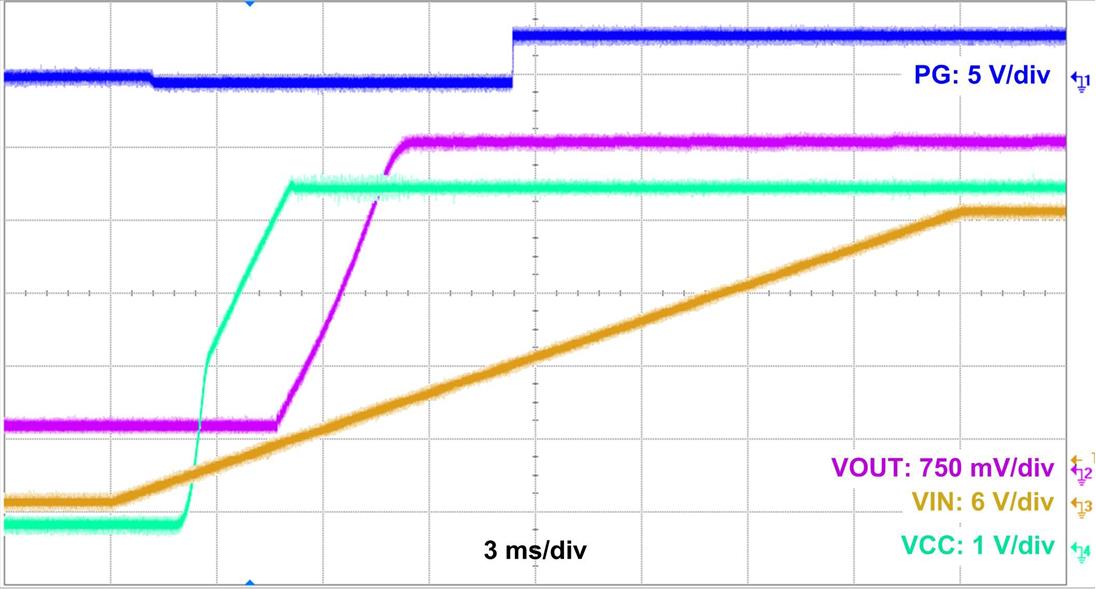

Unless otherwise specified the following conditions apply: VIN = 24 V, TA = 25°C. The circuit is shown in Figure 18, with the appropriate BOM from Table 5.
| VOUT = 5 V | 400 kHz |
| VOUT = 5 V | 400 kHz |
| VOUT = 5 V | 400 kHz |
| VOUT = 5 V | 400 kHz |

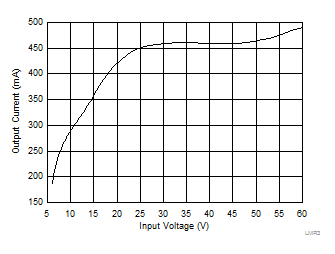

| VOUT = 3.3 V | IOUT= 0 A | RFBT= 100 kΩ |
| VOUT = 5 V | 400 kHz |

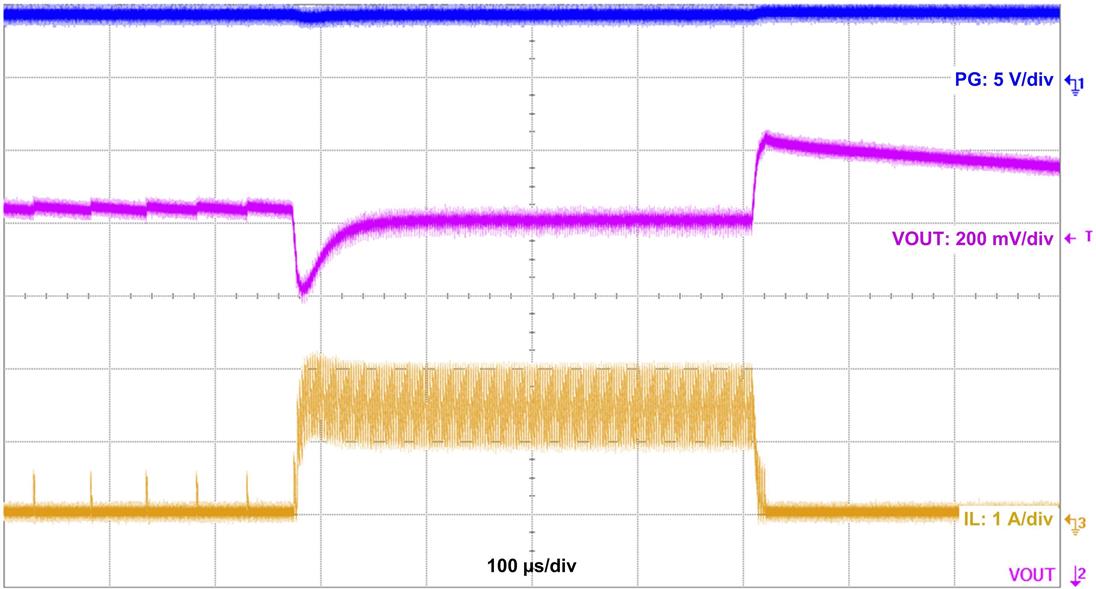

| VOUT = 5 V | 400 kHz | ILOAD= 10 mA - 0.75 A |
| Slew Rate = 1 µs/A |

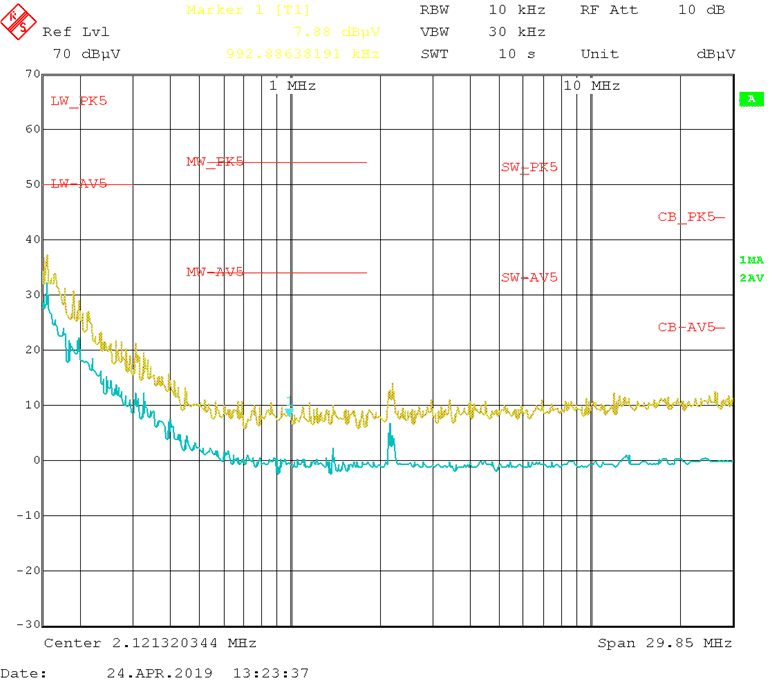

| VIN = 13.5 V | VOUT = 5 V | IOUT = 1.5 A |
| Frequency Tested: 150 kHz to 30 MHz | ||
| VIN = 13.5 V | VOUT = 5 V | IOUT = 1.5 A |
| Frequency Tested: 150 kHz to 30 MHz | ||

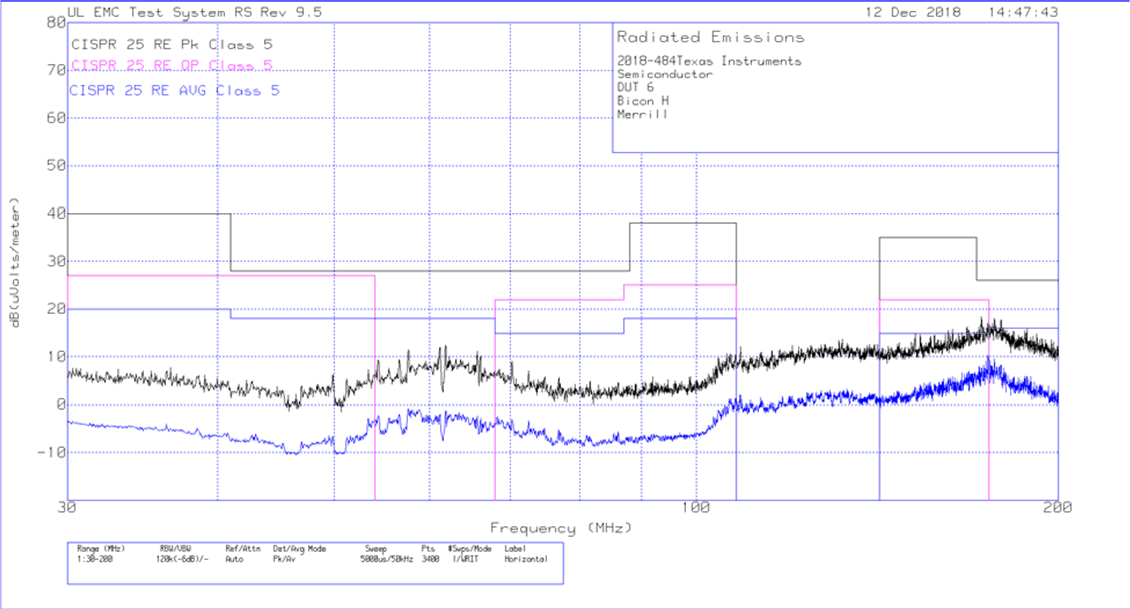

| VIN = 13.5 V | VOUT = 5 V | IOUT = 1.5 A |
| Frequency Tested: 30 MHz to 200 MHz | ||

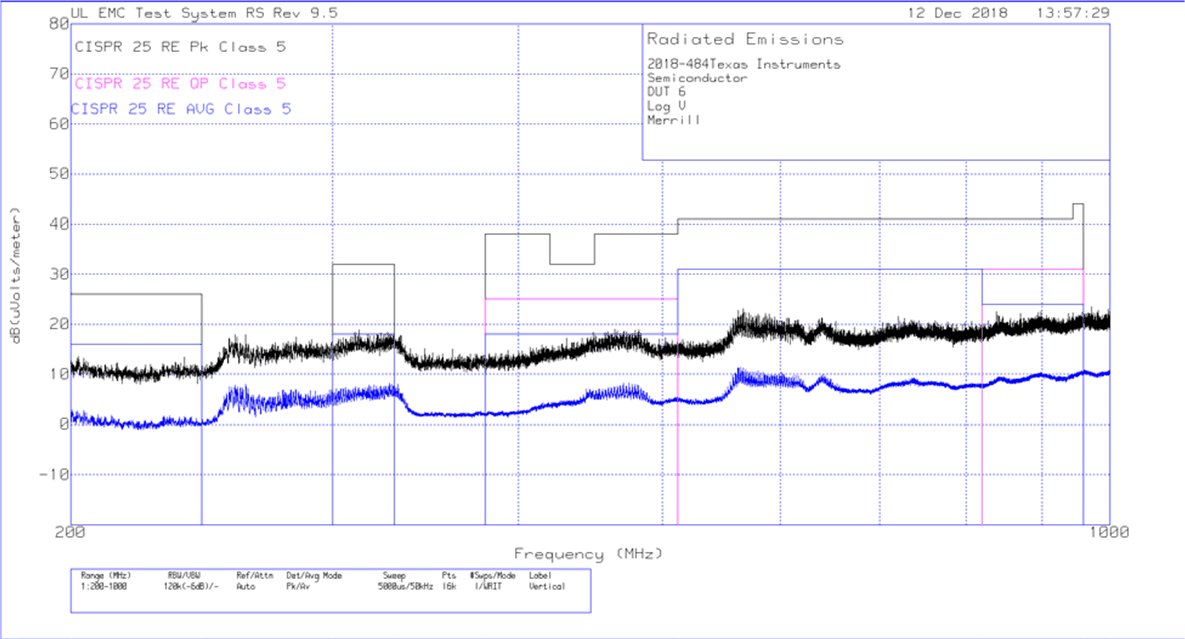

| VIN = 13.5 V | VOUT = 5 V | IOUT = 1.5 A |
| Frequency Tested: 200 MHz to 1 GHz | ||
| VIN = 13.5 V | VOUT = 5 V | IOUT = 1.5 A |
| Frequency Tested: 1.8 GHz to 2.5 GHz | ||

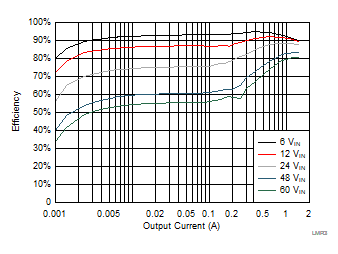

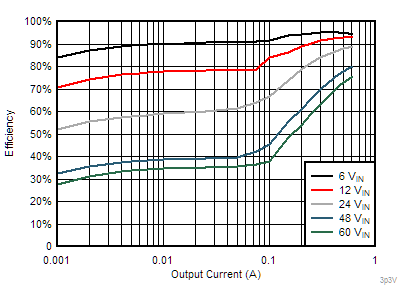

| VOUT = 3.3 V | 400 kHz |

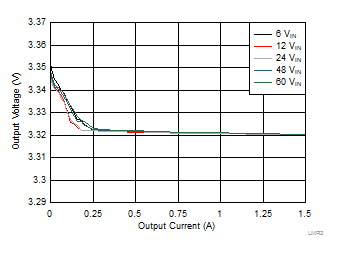

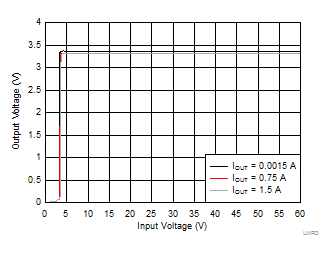

| VOUT = 3.3 V | 400 kHz |
| VOUT = 3.3 V | 400 kHz |
| VOUT = 5 V | 400 kHz |
| VOUT = 3.3 V | 400 kHz |
| VOUT = 3.3 V | 400 kHz |

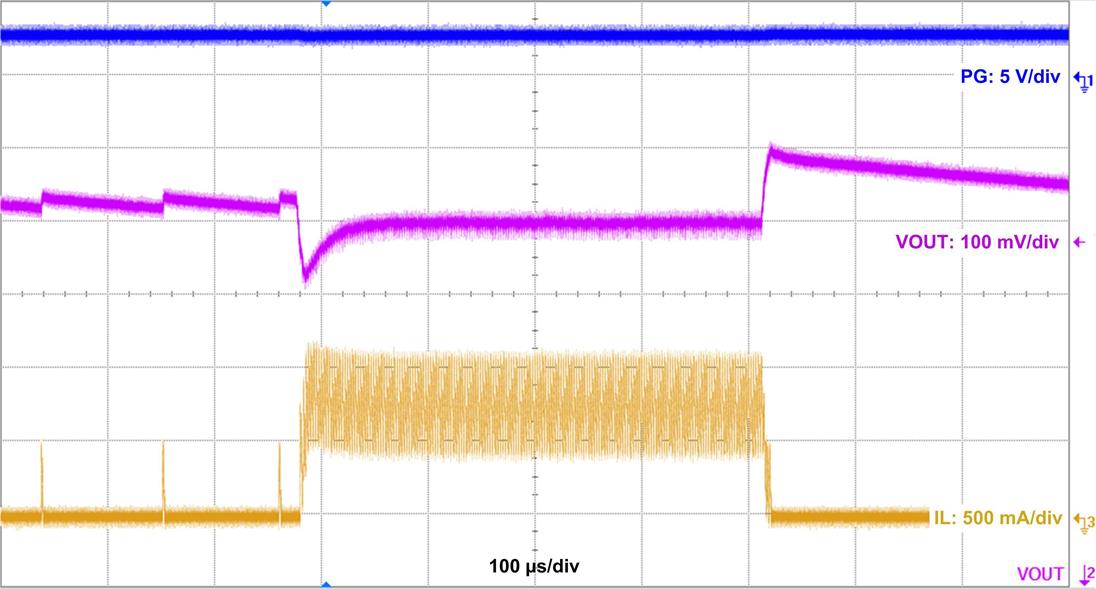

| VOUT = 3.3 V | 400 kHz | ILOAD= 10 mA - 0.75 A |
| Slew Rate = 1 µs/A |

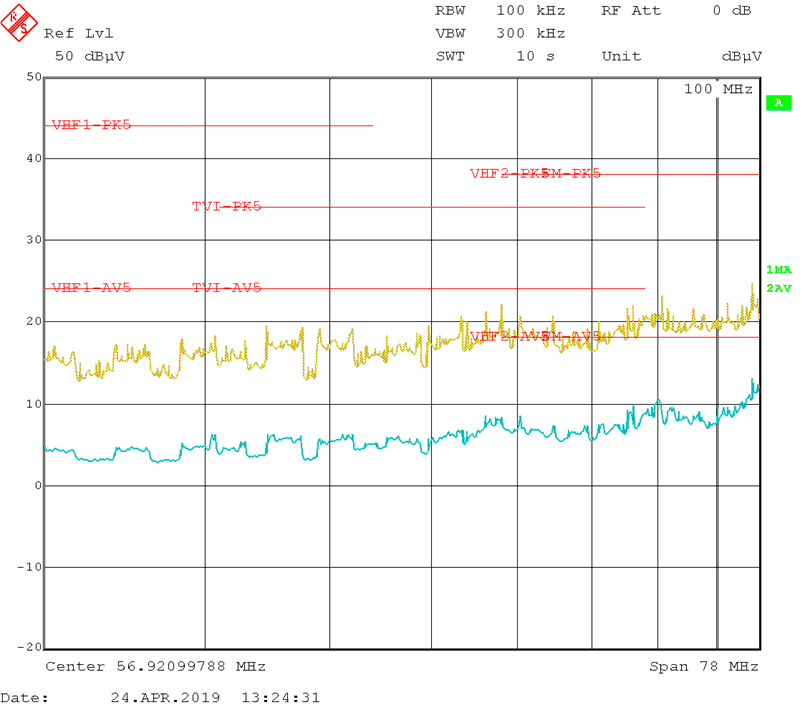

| VIN = 13.5 V | VOUT = 5 V | IOUT = 1.5 A |
| Frequency Tested: 30 MHz to 108 MHz | ||
| VIN = 13.5 V | VOUT = 5 V | IOUT = 1.5 A |
| Frequency Tested: 30 MHz to 200 MHz | ||

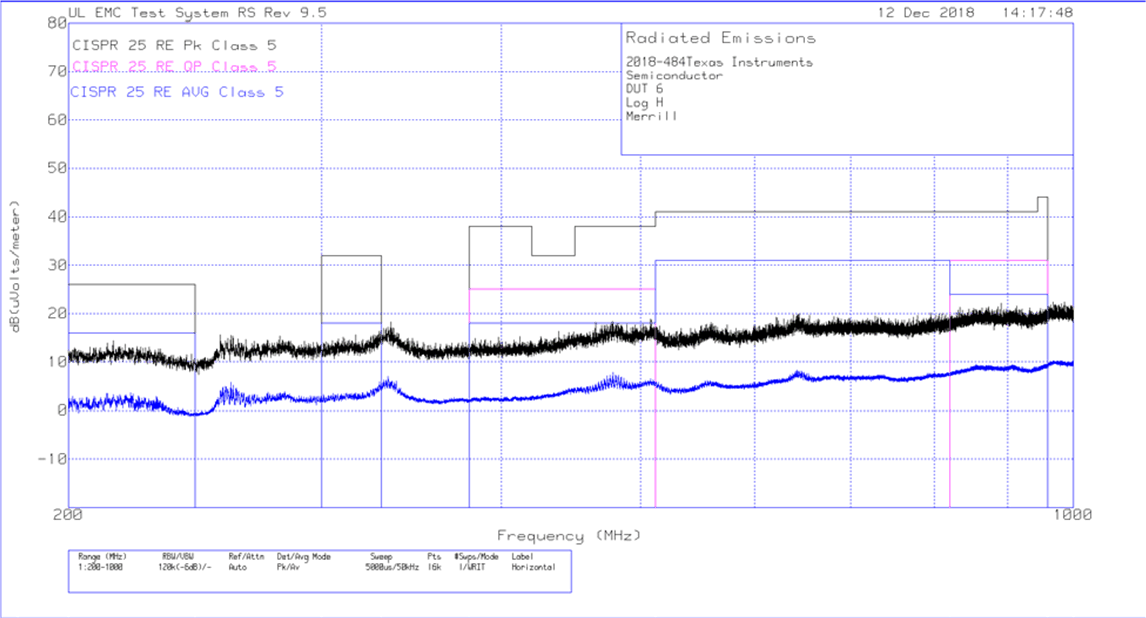

| VIN = 13.5 V | VOUT = 5 V | IOUT = 1.5 A |
| Frequency Tested: 200 MHz to 1 GHz | ||

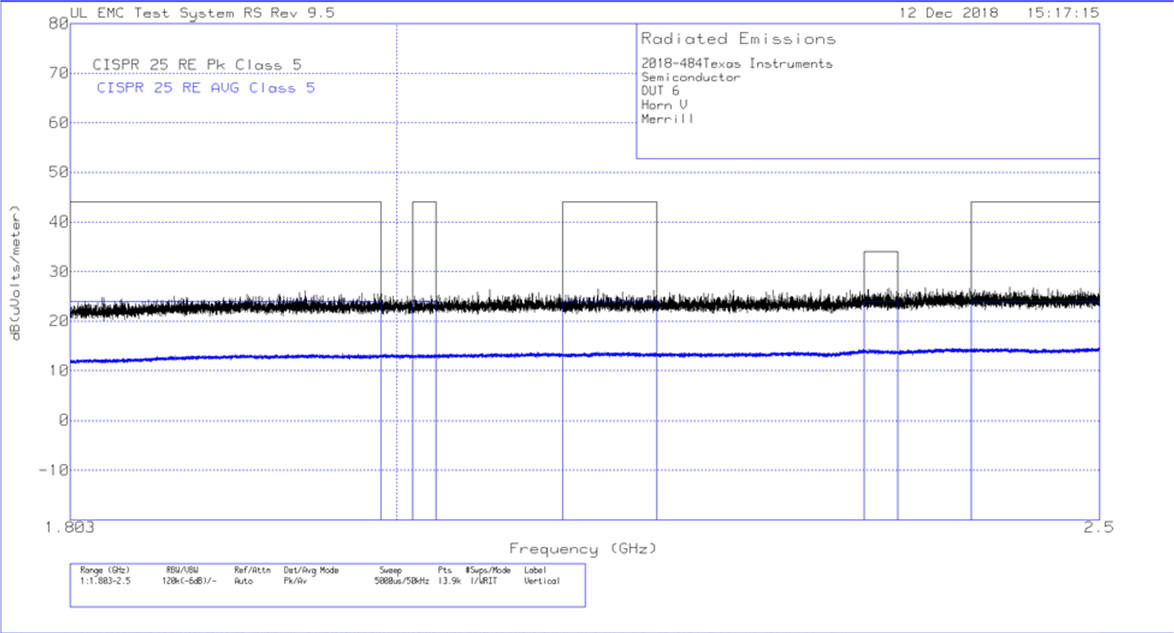

| VIN = 13.5 V | VOUT = 5 V | IOUT = 1.5 A |
| Frequency Tested: 1.83 GHz to 2.5 GHz | ||
