9.2.2.3 Application Curves

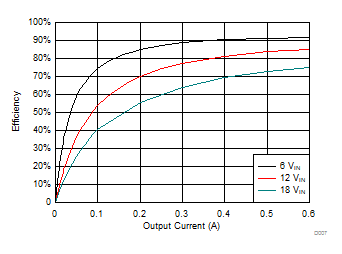

| VOUT = 3.3 V | 2100 kHz |
| VOUT = 3.3 V | 2100 kHz |

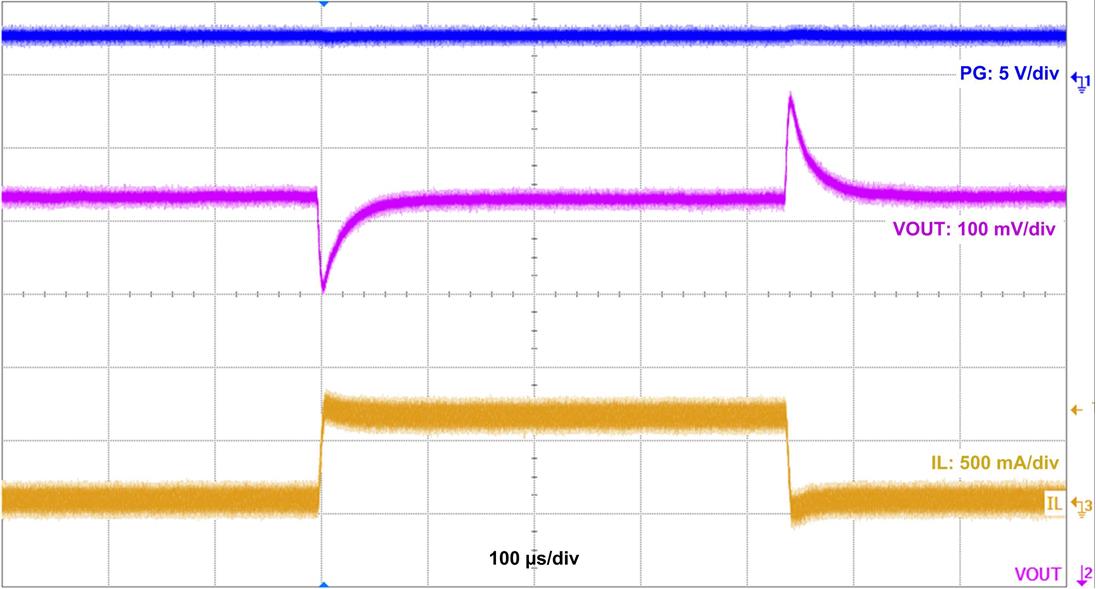

| VOUT = 3.3 V | Slew Rate = 1 μs/A | 2100 kHz | ILOAD= 0 A - 0.6 A |

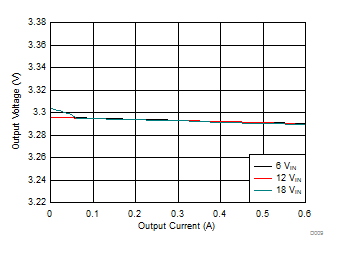

| VOUT = 3.3 V | 2100 kHz |

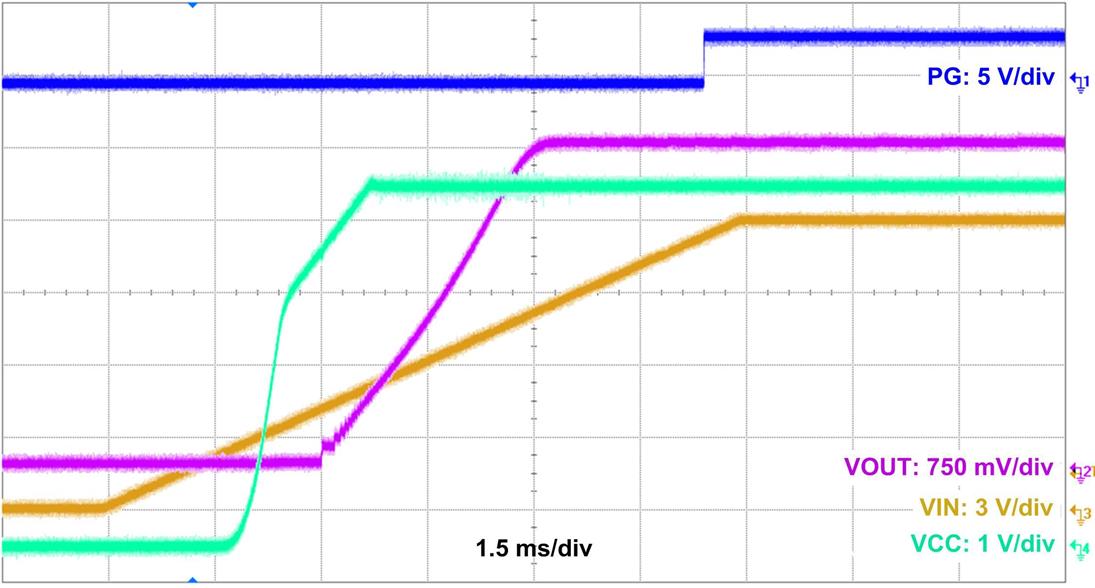

| VOUT = 3.3 V | IOUT= 0 A | RFBT= 100 kΩ |
| VOUT = 3.3 V | 2100 kHz | ILOAD= 0 A - 0.3 A |
| Slew Rate = 1 μs/A |
