9.2.2.9 External UVLO

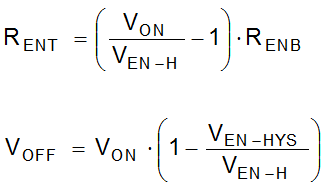

In some cases, an input UVLO level different than that provided internal to the device is needed. This can be accomplished by using the circuit shown in Figure 9-2. The input voltage at which the device turns on is designated VON while the turnoff voltage is VOFF. First, a value for RENB is chosen in the range of 10 kΩ to 100 kΩ, then Equation 10 is used to calculate RENT and VOFF.
Figure 9-2 Setup for External UVLO ApplicationEquation 10.
where
- VON = VIN turnon voltage
- VOFF = VIN turnoff voltage
