9.2.3 Application Curves
Unless otherwise specified the following conditions apply: VIN = 12 V, TA = 25°C. The circuit is shown in Figure 9-27, with the appropriate BOM from Table 9-3.

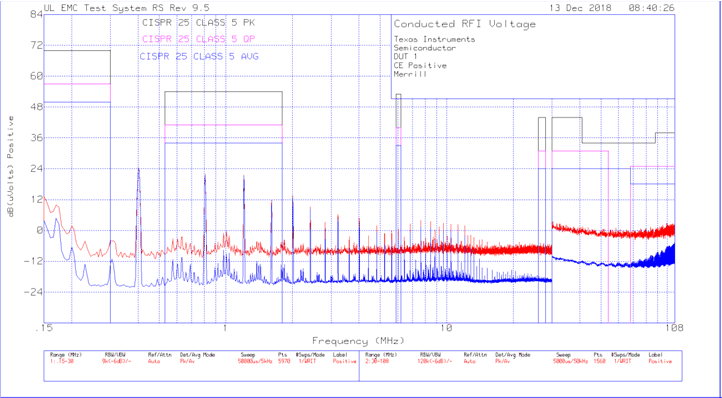

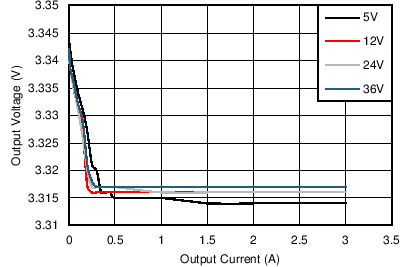

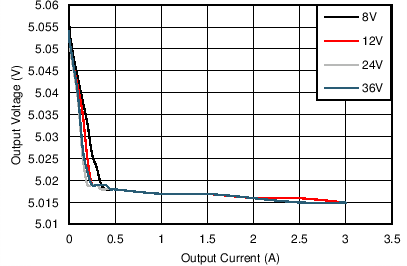

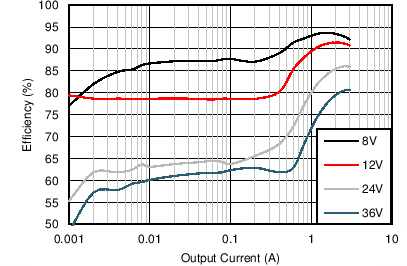

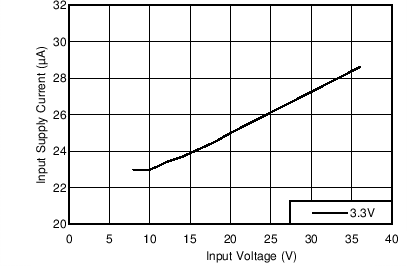

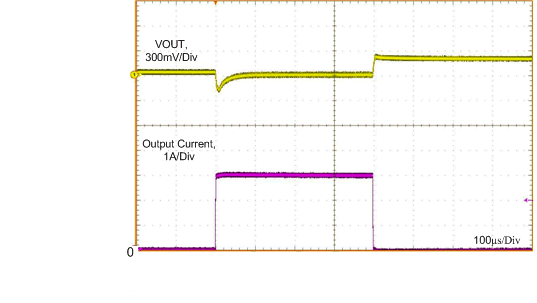

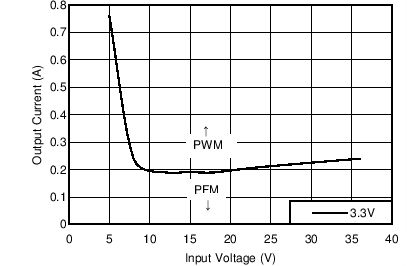

| VOUT = 5 V | 400 kHz | RNX Package |
| VOUT = 5 V | 2.1 MHz | RNX Package |

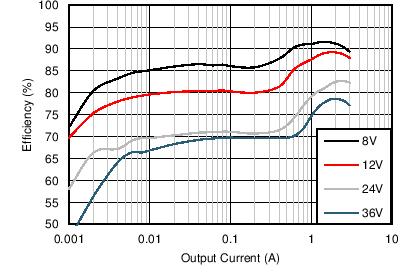

| VOUT = 5 V |
| VOUT = 5 V | ?SW = 400 kHz |
| VIN = 12 V | VOUT = 5 V | |
| tf = tr = 2 μs | IOUT = 0 A to 3 A | |

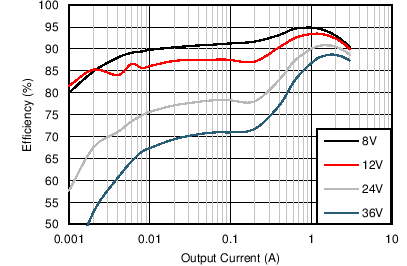

| VOUT = 3.3 V |
| VOUT = 3.3 V | ?SW = 400 kHz |
| VIN = 12 V | VOUT = 3.3 V | |
| tf = tr = 2 μs | IOUT = 0 A to 3 A | |
| VIN = 12 V | VOUT = 5 V | IOUT = 3 A |
| ?SW = 400 kHz | RNX package | |
| VIN = 12 V | VOUT = 5 V | IOUT = 3 A |
| ?SW = 400 kHz | RNX package | |
| VIN = 12 V | VOUT = 5 V | IOUT = 3 A |
| ?SW = 400 kHz | RNX package | |
| VOUT = 3.3 V | 400 kHz | RNX Package |
| VOUT = 3.3 V | 2.1 MHz | RNX Package |

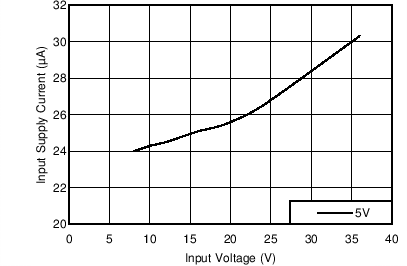

| VOUT = 5 V | IOUT = 0 A | RFBT = 1 MΩ |

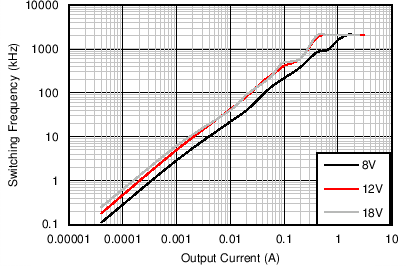

| VOUT = 5 V | ?SW = 2100 kHz |
| VIN = 12 V | VOUT = 5 V | |
| tf = tr = 2 μs | IOUT = 1 A to 3 A | |
| VOUT = 3.3 V | IOUT = 0 A | RFBT = 1 MΩ |
| VOUT = 3.3 V | ?SW = 2100 kHz |
| VIN = 12 V | VOUT = 3.3V | IOUT = 1 A to 3 A |
| tf = tr = 2 μs | ||
| VIN = 12 V | VOUT = 5 V | IOUT = 3 A |
| ?SW = 400 kHz | RNX package | |
| VIN = 12 V | VOUT = 5 V | IOUT = 3 A |
| ?SW = 400 kHz | RNX package | |
| VIN = 12 V | VOUT = 5 V | IOUT = 3 A |
| ?SW = 400 kHz | RNX package | |

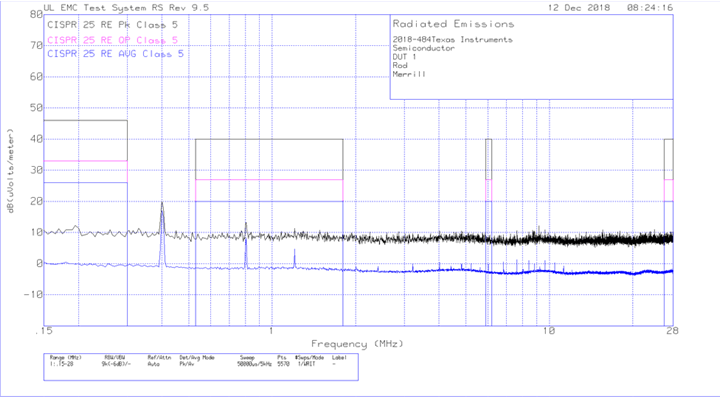

Rod Antenna

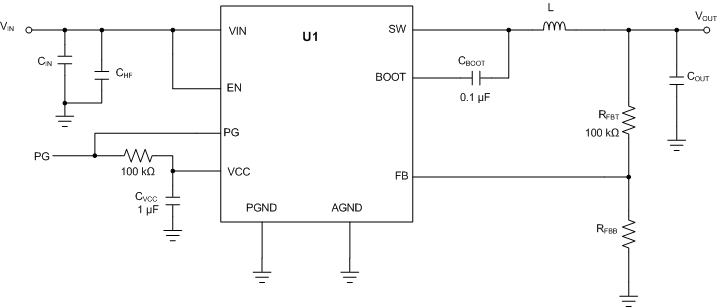

Figure 9-27 Circuit for Application CurvesTable 9-3 BOM for Typical Application Curves RNX Package(1)
| VOUT | FREQUENCY | RFBB | COUT | CIN + CHF | L | U1 |
|---|---|---|---|---|---|---|
| 3.3 V | 400 kHz | 43.3 kΩ | 4 × 22 μF | 2 × 4.7 μF + 2 × 100 nF | 6.8 μH, 14 mΩ | LMR33630ARNX |
| 3.3 V | 2100 kHz | 43.3 kΩ | 4 × 22 μF | 2 × 4.7 μF + 2 × 100 nF | 1.2 μH, 7 mΩ | LMR33630CRNX |
| 5 V | 400 kHz | 24.9 kΩ | 4 × 22 μF | 2 × 4.7 μF + 2 × 100 nF | 8 μH, 25 mΩ | LMR33630ARNX |
| 5 V | 2100 kHz | 24.9 kΩ | 4 × 22 μF | 2 × 4.7 μF + 2 × 100 nF | 1.5 μH, 8.2 mΩ | LMR33630CRNX |
(1) The values in this table were selected to enhance certain performance criteria
and may not represent typical values.

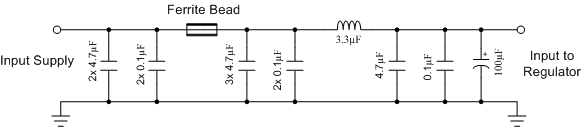

Figure 9-28 Typical Input EMI FilterFilter Used Only for EMI Measurements Found in Application Curves
