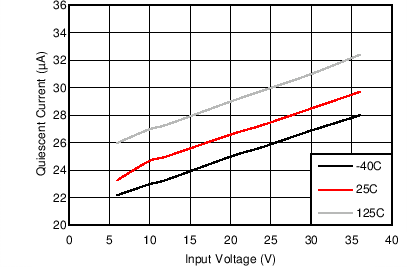

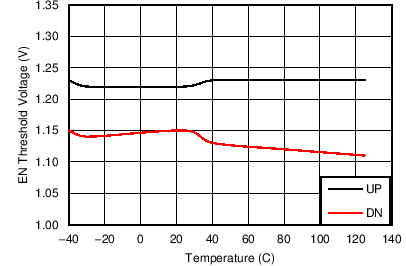

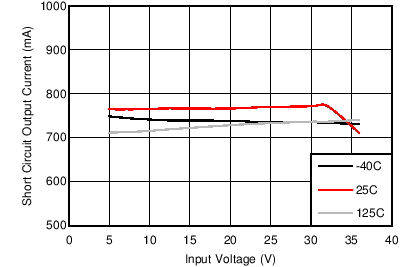

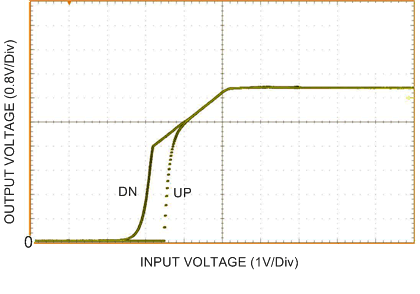

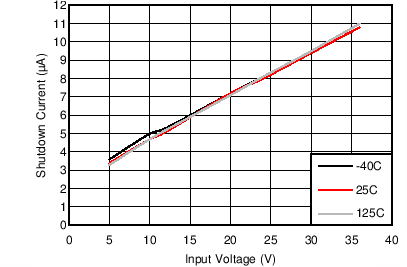

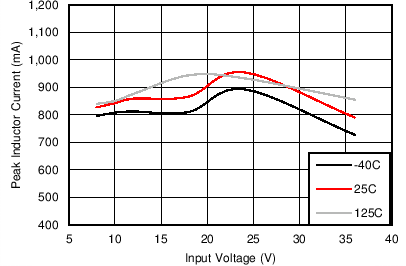

7.8 Typical Characteristics
Unless otherwise specified the following conditions apply: TA = 25°C and VIN = 12 V
| VFB = 1.2 V |
| EN = 0 V |
