8.2.3 Application Curves

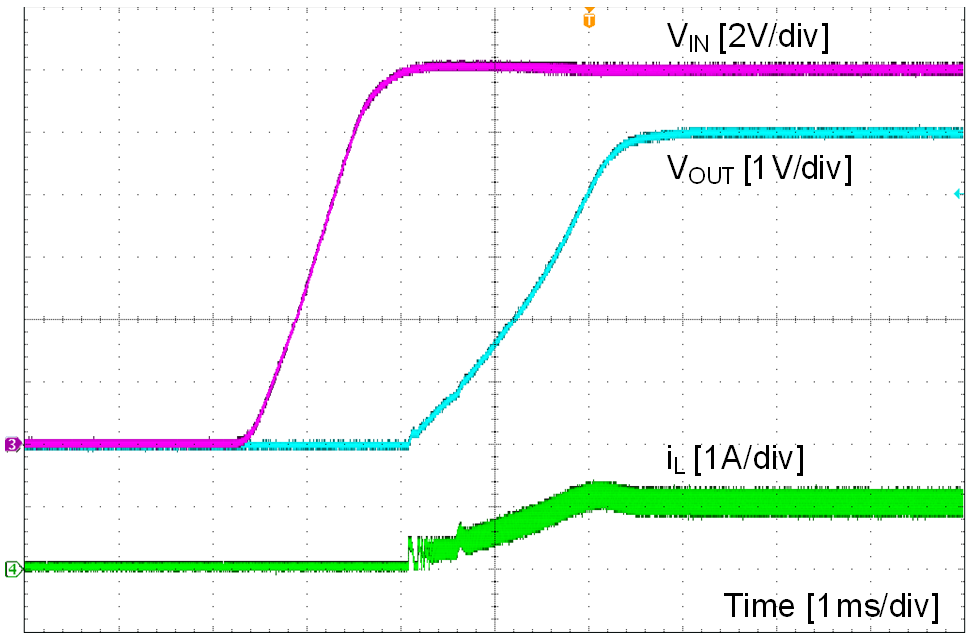

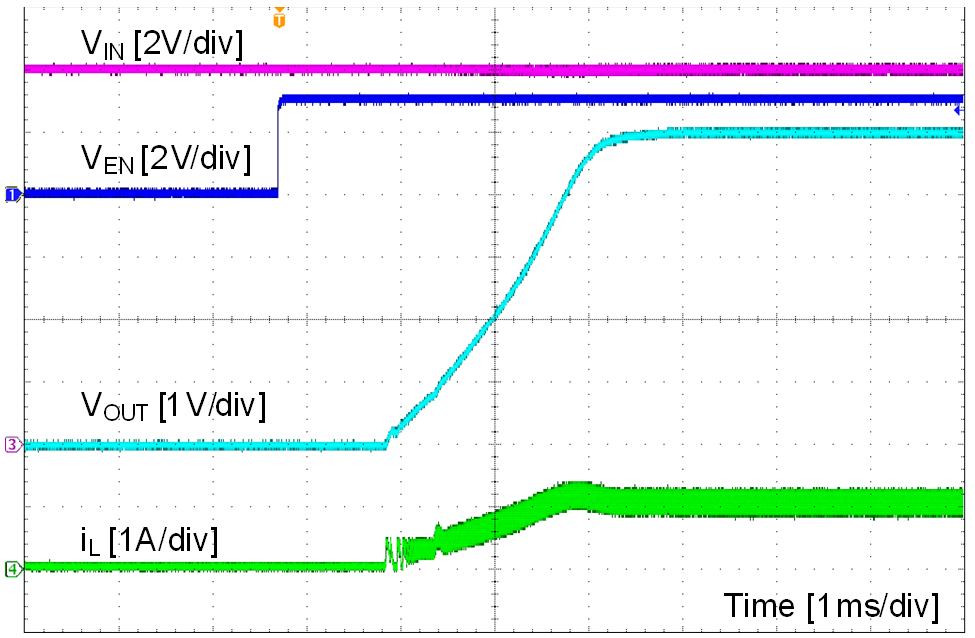

Unless otherwise specified the following conditions apply: VIN = 12 V, fSW = 400 kHz, L = 22 µH, COUT = 47 µF × 2, TA = 25°C.

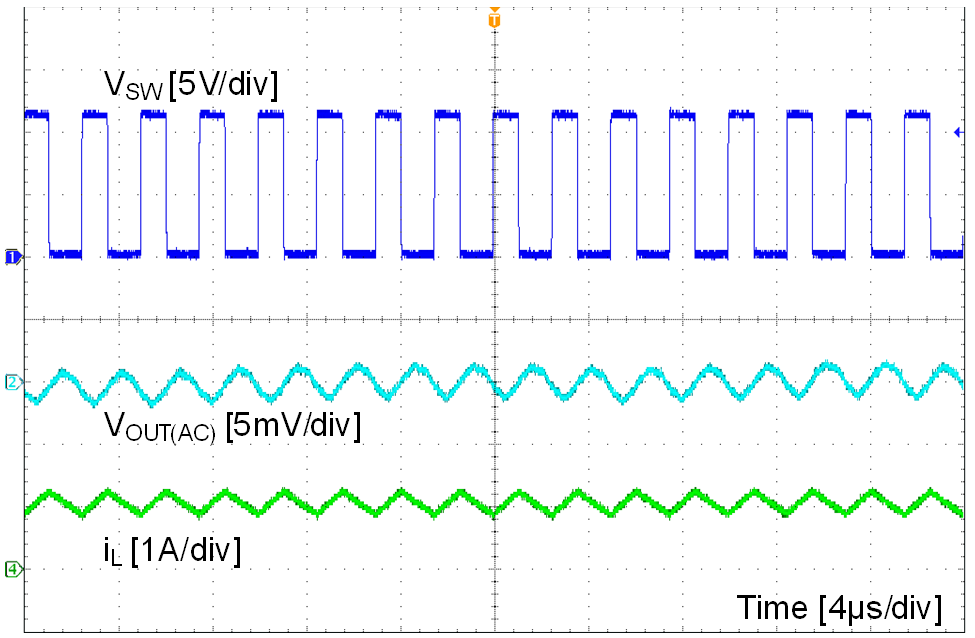

| VOUT = 5 V | IOUT = 1 A | fSW = 400 kHz |
| VIN = 12 V | VOUT = 5 V | IOUT = 1 A |

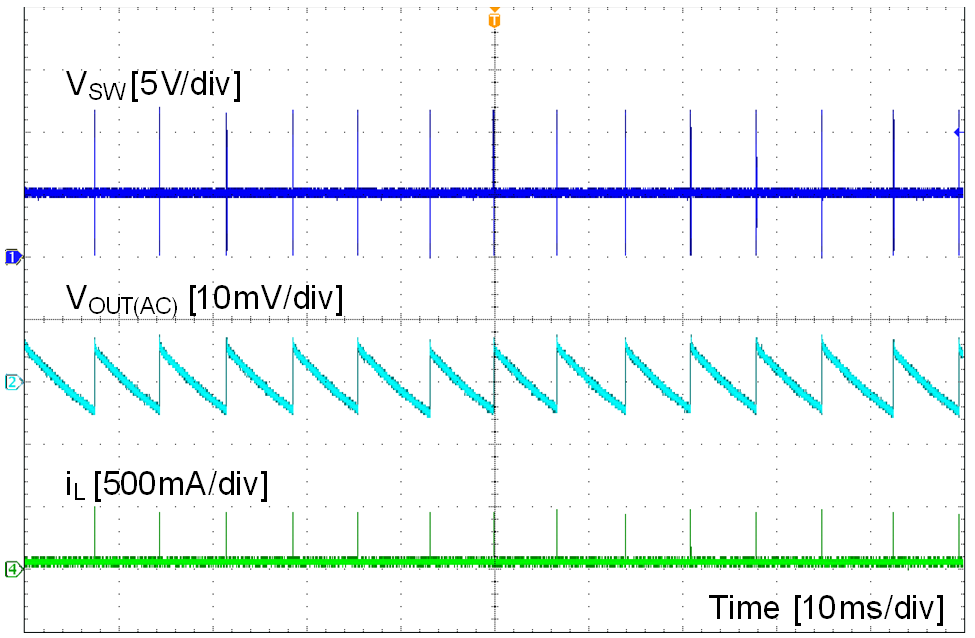

| VIN = 12 V | VOUT = 5 V | |

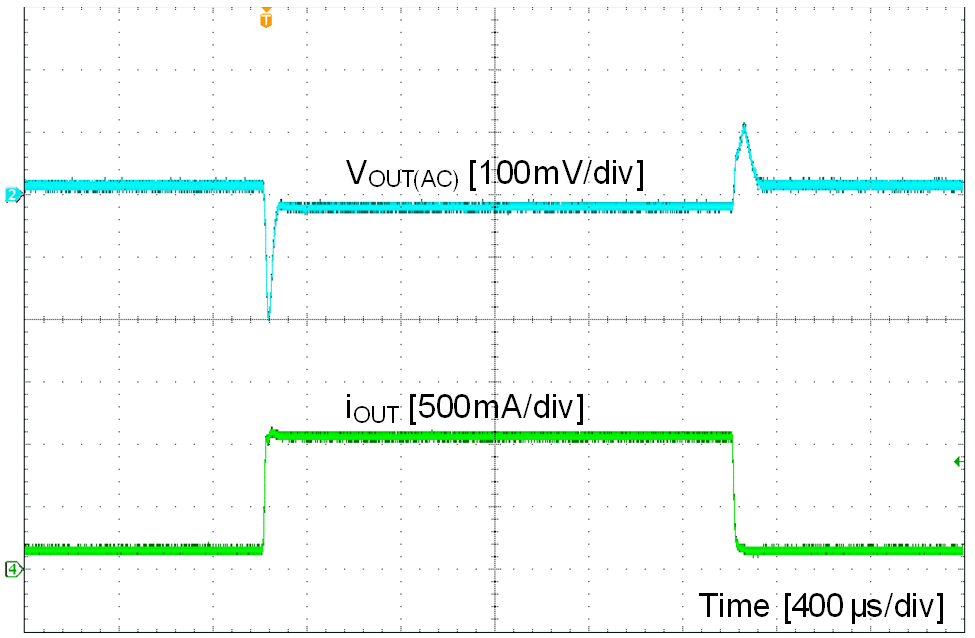

| IOUT = 0.1 A to 1 A, 100 mA / μs | ||

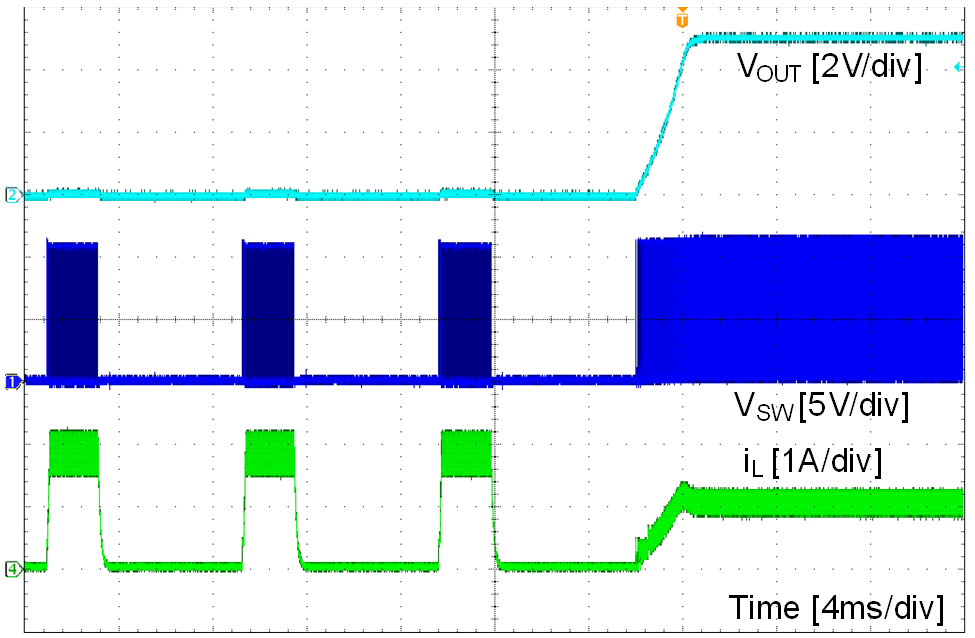

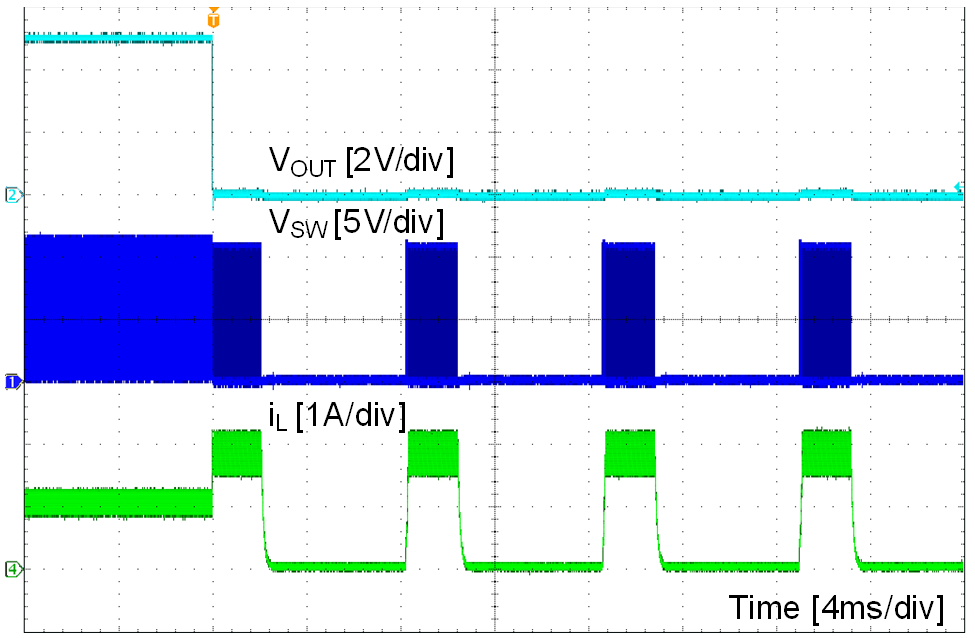

| VOUT = 5 V | IOUT = 1 A to short |
