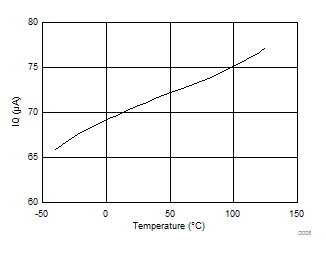

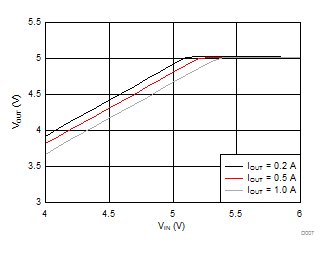

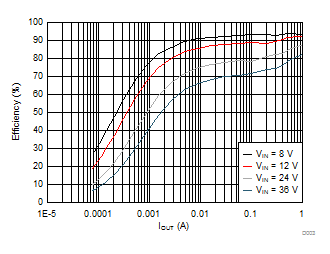

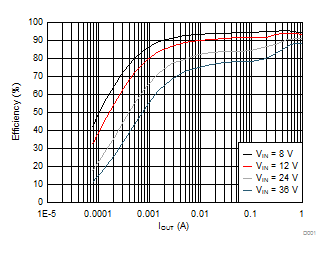

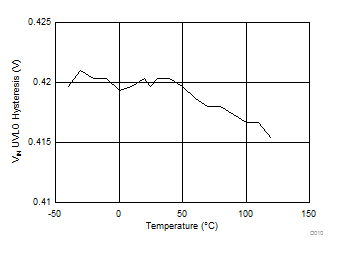

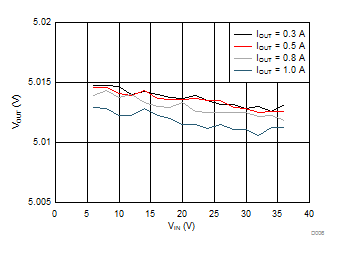

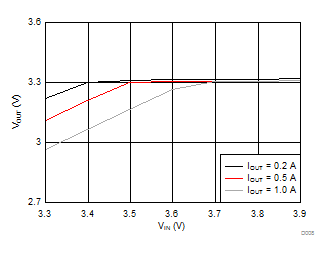

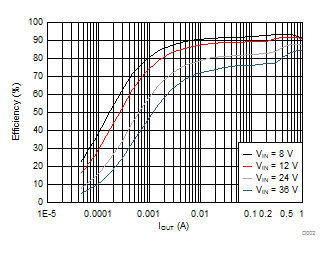

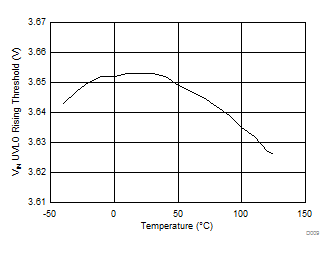

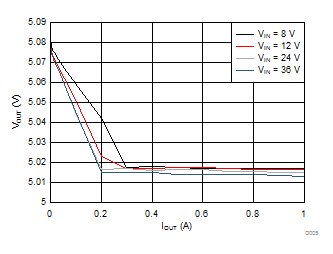

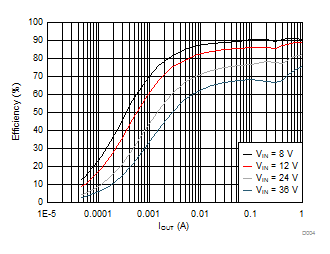

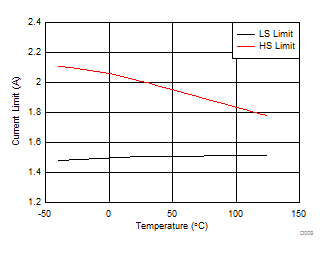

6.8 Typical Characteristics
Unless otherwise specified the following conditions apply: VIN = 12 V, fSW = 400 kHz, L = 22 µH, COUT = 47 µF × 2, TA = 25°C.
| fSW = 400 kHz | VOUT = 5 V |
| fSW = 1000 kHz (Sync) | VOUT = 5 V |
| VOUT = 5 V |
| VOUT = 5 V |
| VIN = 12 V | VFB = 1.1 V |
| fSW = 400 kHz | VOUT = 3.3 V |
| fSW = 1000 kHz (Sync) | VOUT = 3.3 V |
| VOUT = 5 V |
| VOUT = 3.3 V |
| VIN = 12 V |
