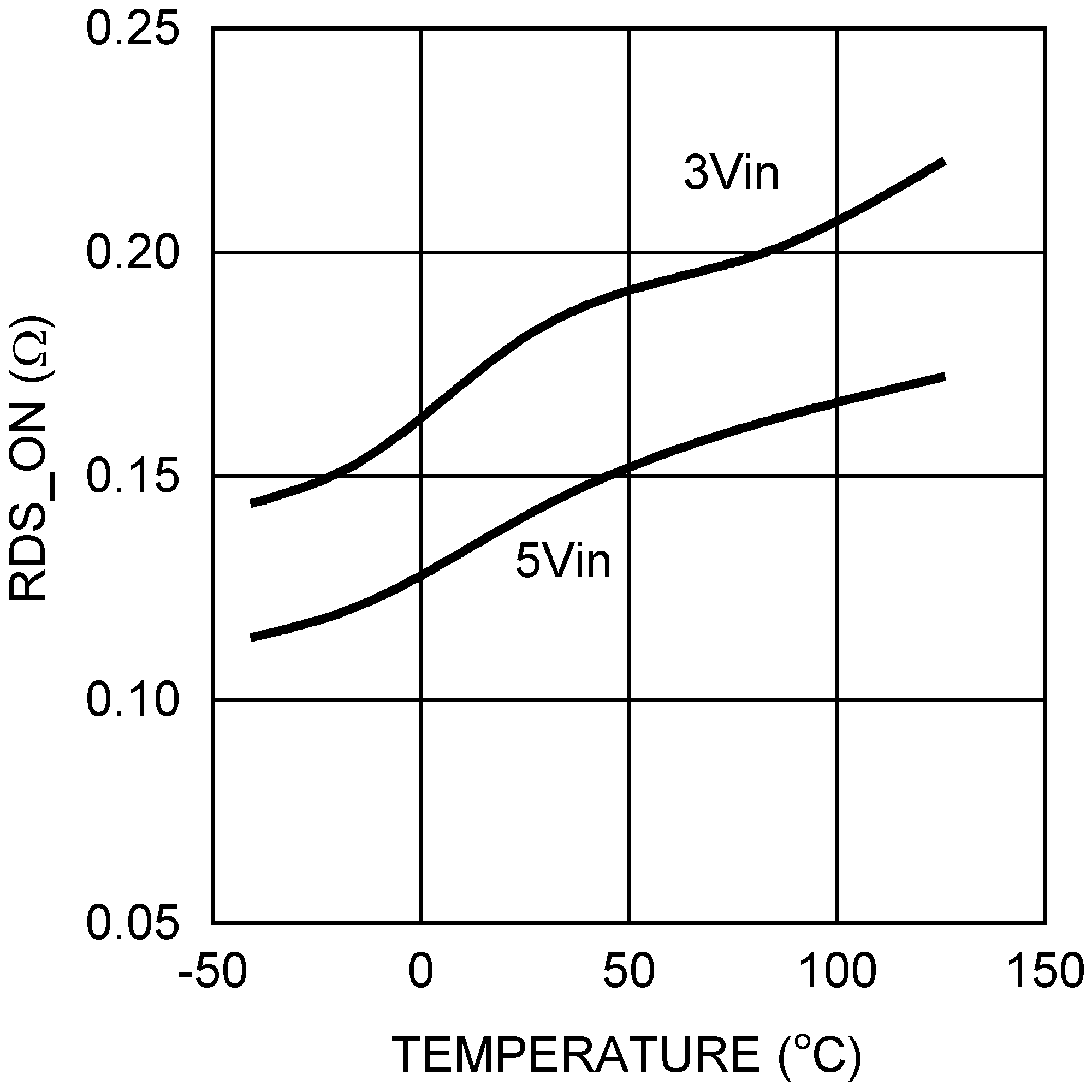

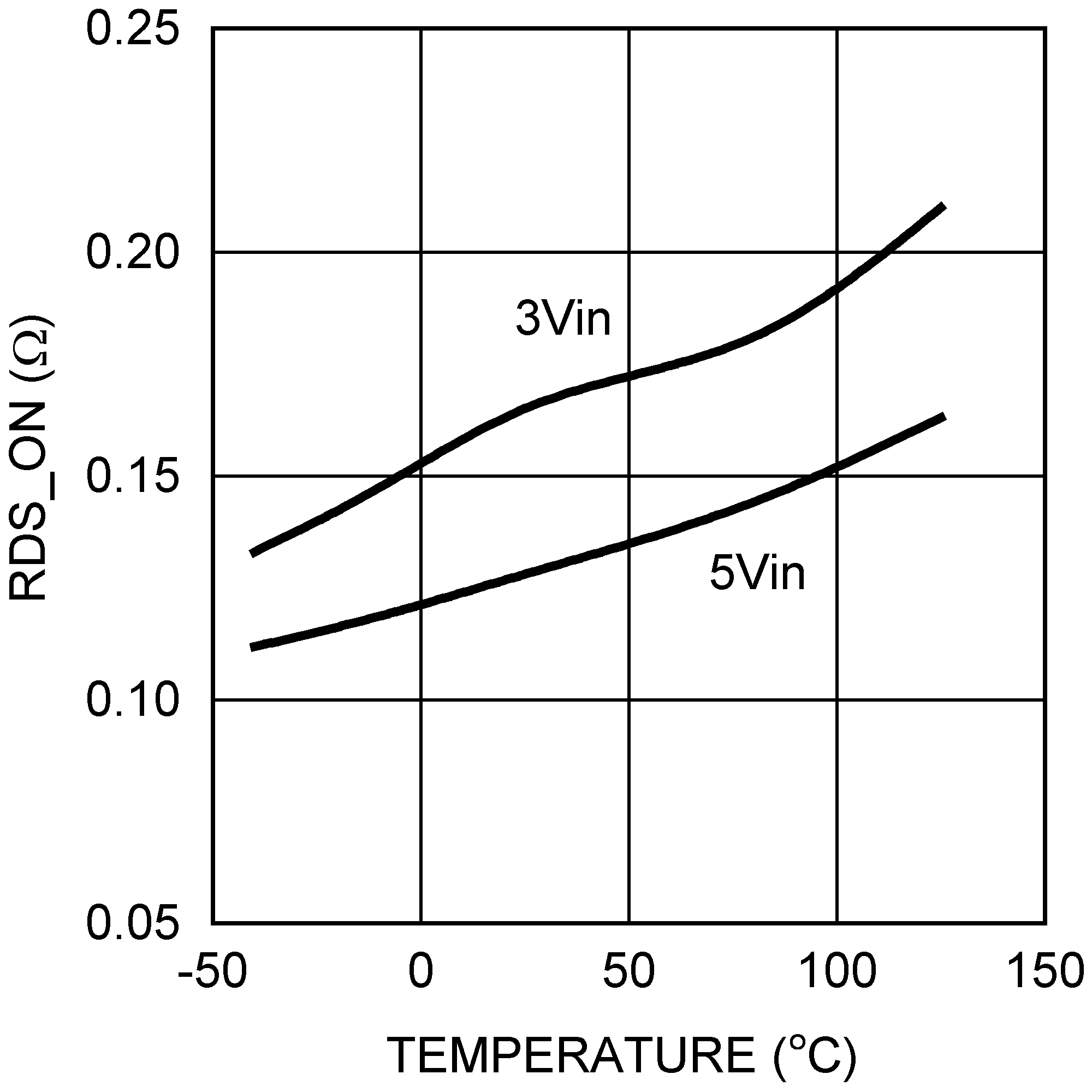

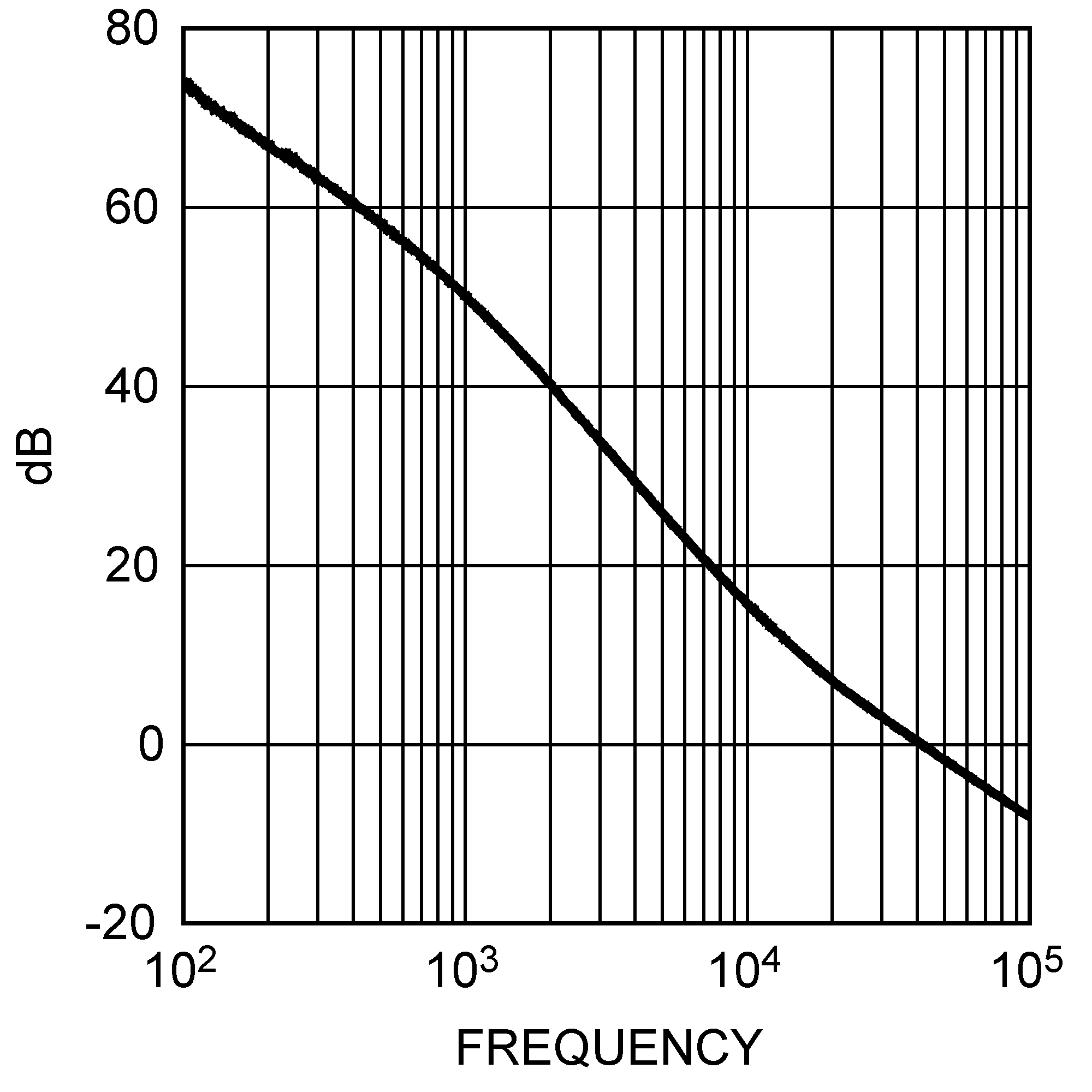

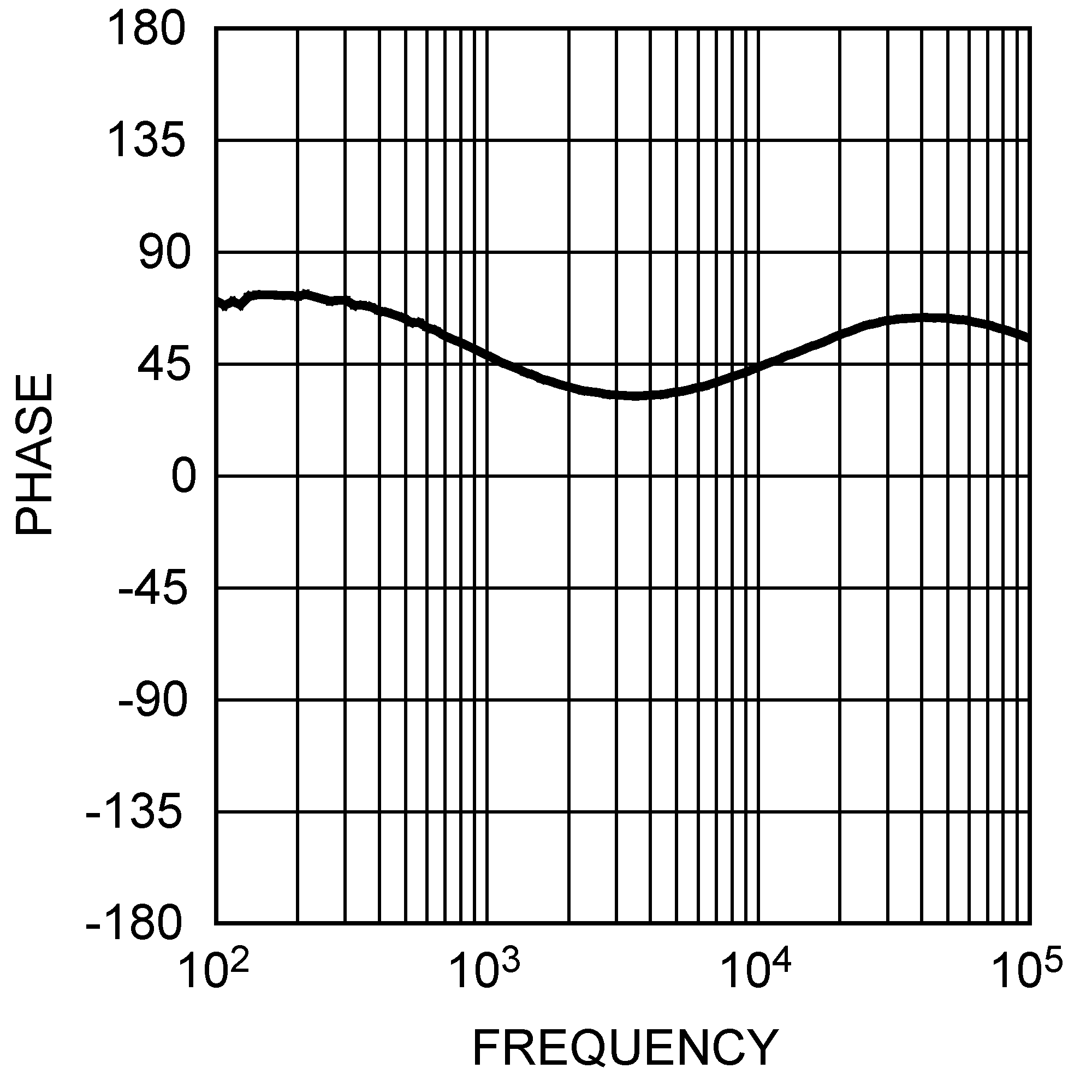

7.4 Typical Performance Characteristics
Unless stated otherwise, all curves taken at VIN = 5 V with configuration in typical application circuit shown in Figure 15. TJ = 25°C, unless otherwise specified.
| VIN = 5 V | VOUT = 1.8 V and 3.3 V | |
| VIN = 3.3 V | VOUT = 1.8 V | |
| VIN = 5 V | VOUT = 1.2 V at 1 A |
| VIN = 5 V | VOUT = 1.8 V and 3.3 V | |
| VIN = 3.3 V |
| VIN = 5 V | VOUT = 1.2 V at 1 A | |
