11.2 Layout Examples

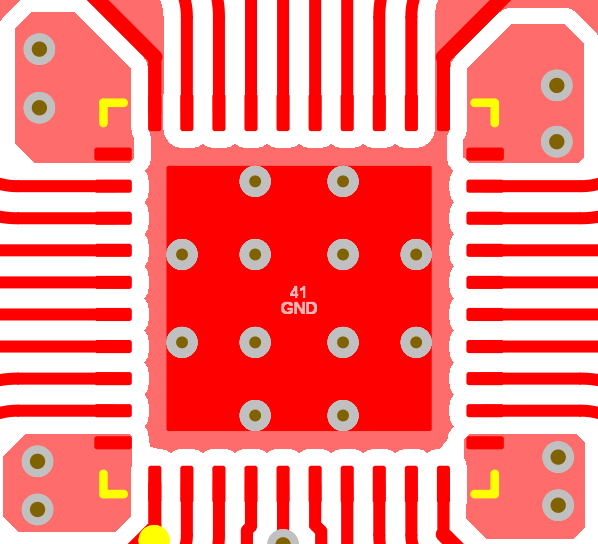

Figure 11-1 PCB layout example for LMK1D2106, Top Layer

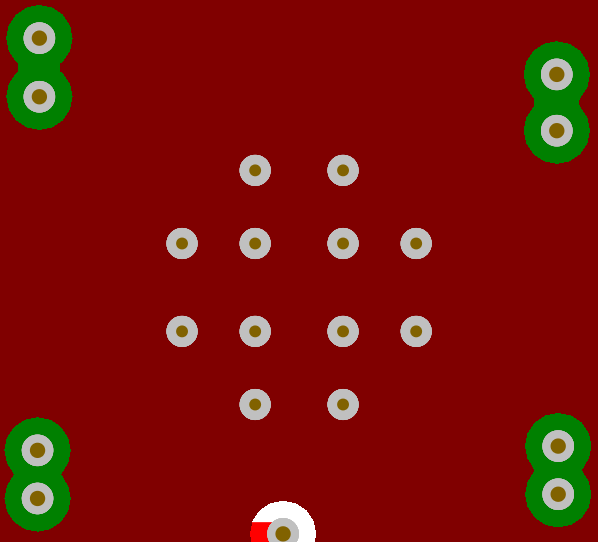

Figure 11-2 PCB Layout Example for LMK1D2106, GND layer
