9.3.3 Overvoltage Protection and Battery Voltage Sensing (VSNS, SW, OV)

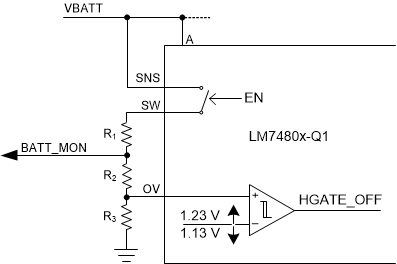

Connect a resistor ladder as shown in Figure 9-4 for overvoltage threshold programming.
Figure 9-4 Programming Overvoltage Threshold and Battery
SensingA disconnect switch is integrated between VSNS and SW pins. This switch is turned OFF when EN/UVLO pin is pulled low. This helps to reduce the leakage current through the resistor divider network during system shutdown state (IGN_OFF state).
