10.2.3 Application Curves
Unless otherwise specified, the following conditions apply: VIN
= 13.5 V, TA = 25°C. The circuit is shown in Figure 10-1, with the appropriate BOM from Table 10-5.
Unless otherwise specified, the following conditions apply: VIN
= 13.5 V, TA = 25°C. The circuit is shown in Figure 10-1, with the appropriate BOM from Table 10-5.

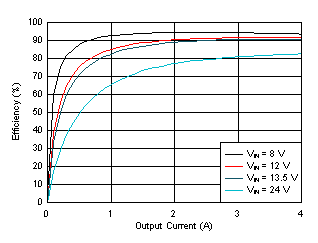

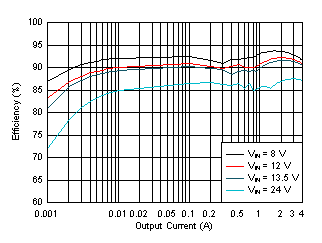

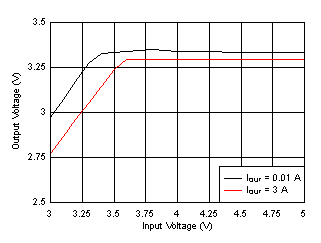

Figure 10-5 LM61440-Q1

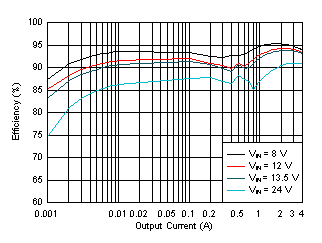

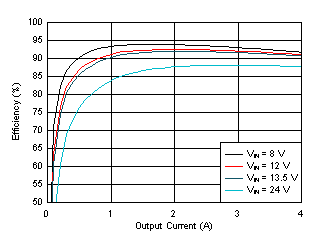

Efficiency. Unless otherwise specified, the following conditions apply: VIN
= 13.5 V, TA = 25°C. The circuit is shown in Figure 10-1, with the appropriate BOM from Table 10-5.

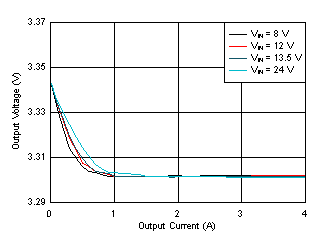

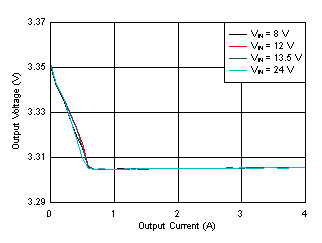

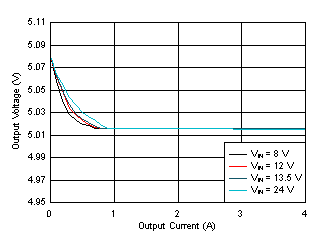

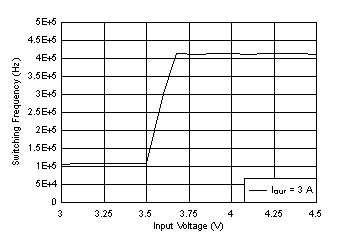

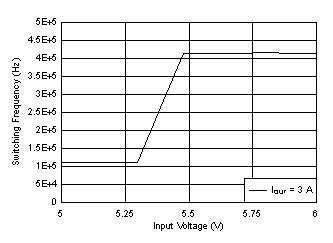

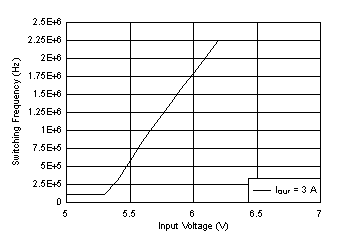

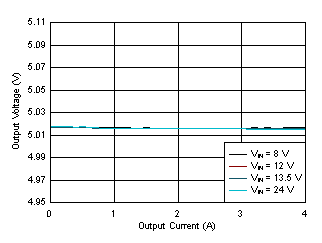

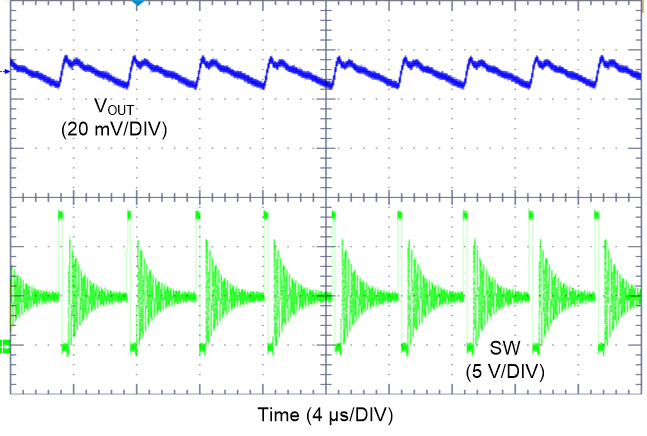

| VOUT = 3.3 V | FSW = 2100 kHz | AUTO Mode |
| VOUT = 5 V | FSW = 2100 kHz | AUTO Mode |
| VOUT = 3.3 V | FSW = 400 kHz | Auto Mode |
| VOUT = 3.3 V | FSW = 2100 kHz | Auto Mode |
| VOUT = 5V | FSW = 400 kHz | Auto Mode |
| VOUT = 5V | FSW = 2100 kHz | Auto Mode |
| VOUT = 3.3 V | FSW = 400 kHz | AUTO Mode |
| VOUT = 5 V | FSW = 400 kHz | AUTO Mode |
| VOUT = 3.3 V | FSW = 400 kHz | AUTO Mode |
| VOUT = 5 V | FSW = 400 kHz | AUTO Mode |
| VOUT = 5 V | FSW = 2100 kHz | AUTO Mode |
| IOUT = 100 mA | VIN = 13.5 V |

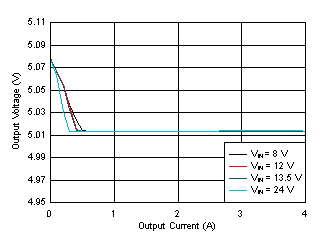

| VOUT = 3.3 V | FSW = 2100 kHz | FPWM Mode |
| IOUT = 3.25 A | VIN = 13.5 V |
| VOUT = 5 V | FSW = 2100 kHz | FPWM Mode |

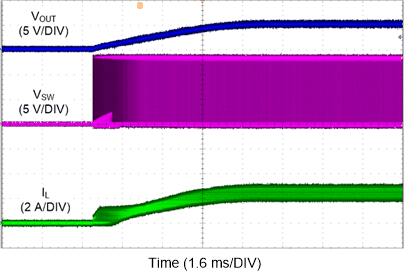

| IOUT = Short Circuit to 2.5 A | VIN = 13.5 V | |
| VOUT = 3.3 V | FSW = 400 kHz | AUTO Mode |

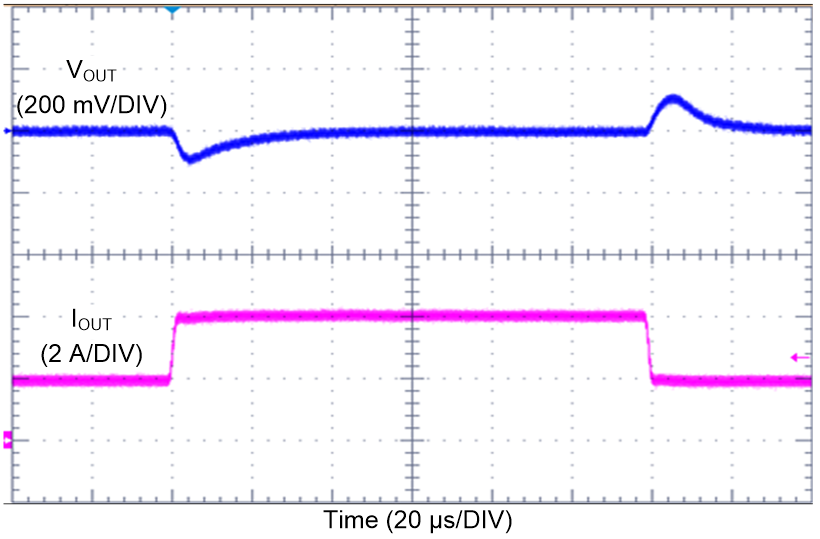

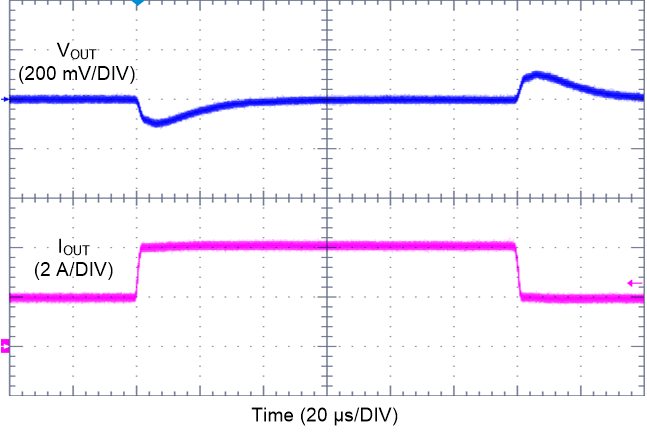

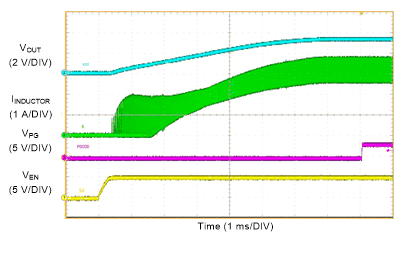

| IOUT = 2 A to 4 A to 2 A | VIN = 13.5 V | TR = TF = 2μs |
| VOUT = 5 V | FSW = 2100 kHz | AUTO Mode |

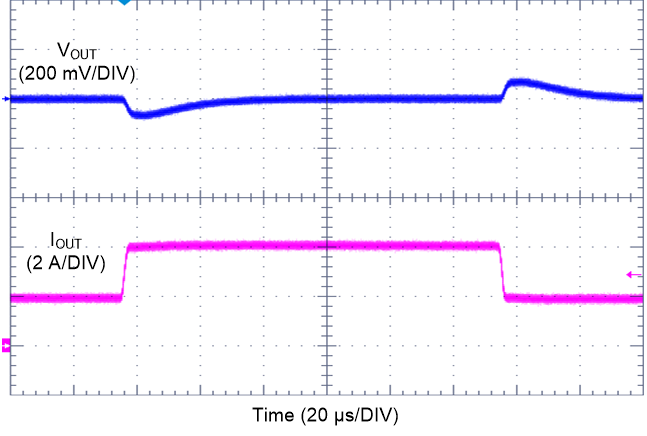

| IOUT = 2 A to 4 A to 2 A | VIN = 13.5 V | TR = TF = 2μs |
| VOUT = 5 V | FSW = 400 kHz | IOUT = 5 A |

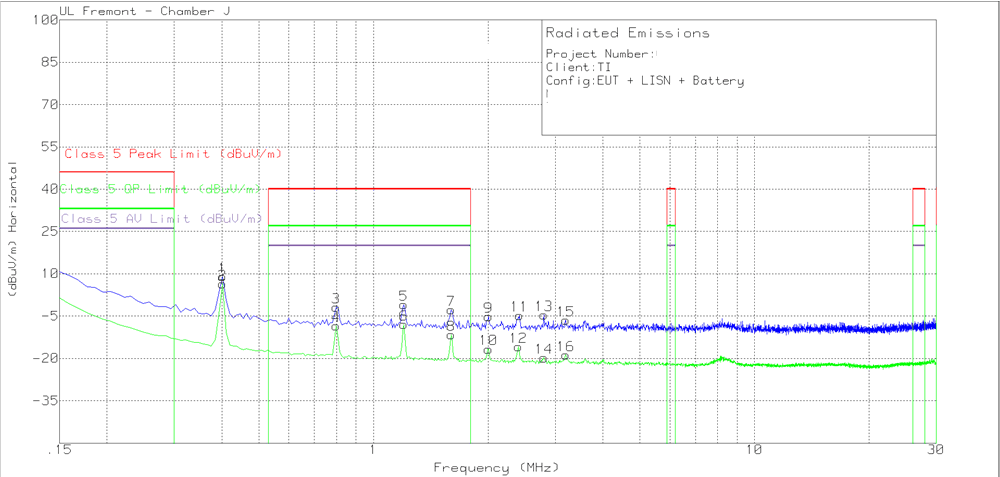

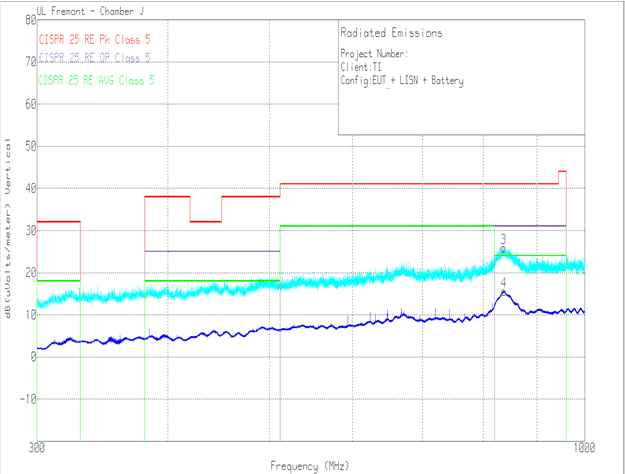

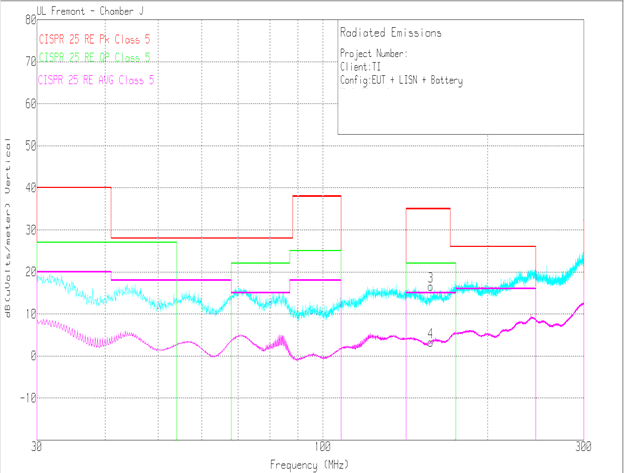

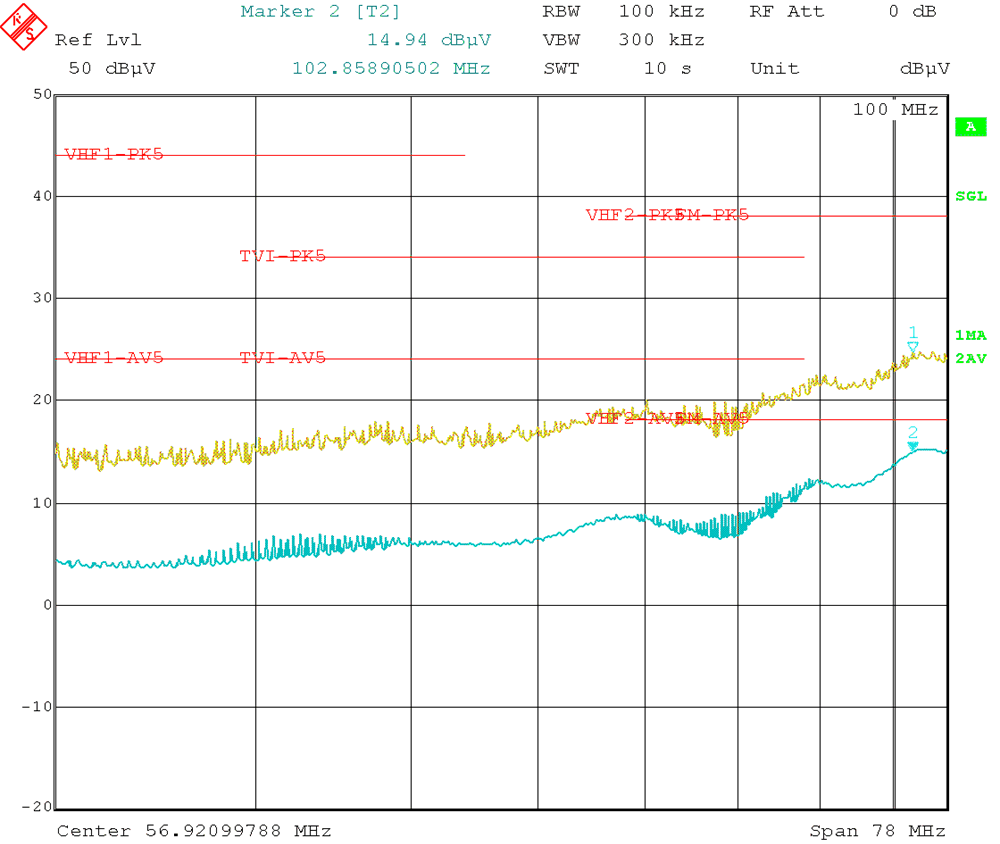

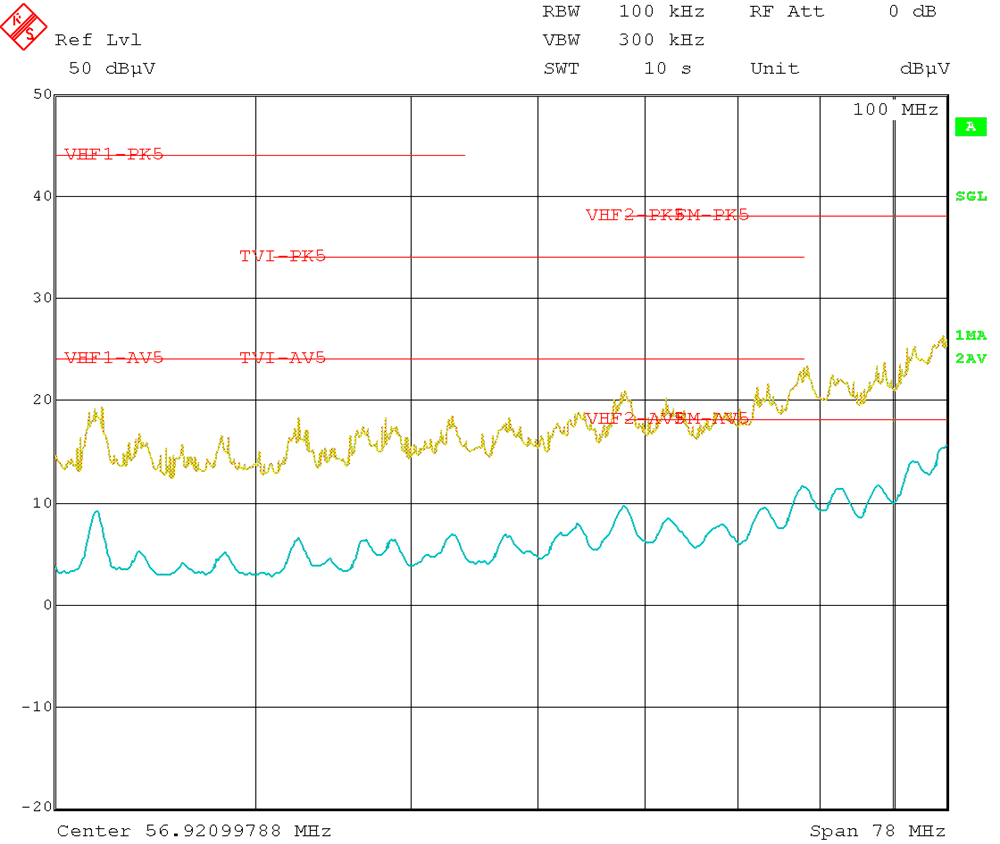

| Frequency Tested: 30 MHz to 108 MHz | ||
| VOUT = 5 V | FSW = 400 kHz | IOUT = 5 A |
| Frequency Tested: 30 MHz to 300 MHz | ||
| VOUT = 5 V | FSW = 400 kHz | IOUT = 5 A |

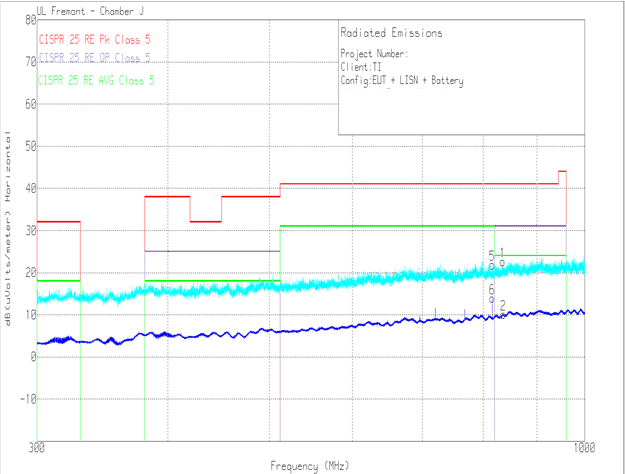

| Frequency Tested: 300 MHz to 1 GHz | ||
| FSW = 400 kHz | Note: Measurements taken with LM61460EVM with 6 A variant | |
| FSW = 2100 kHz | VOUT = 5 V | IOUT = 5 A |
| Frequency Tested: 30 MHz to 108 MHz | ||

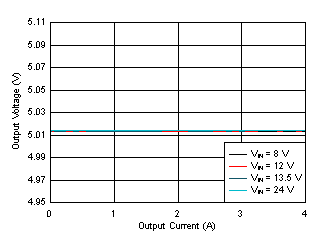

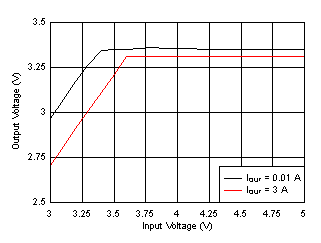

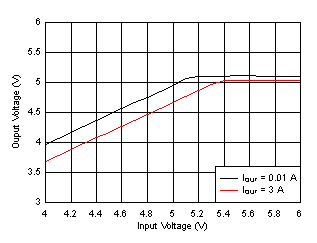

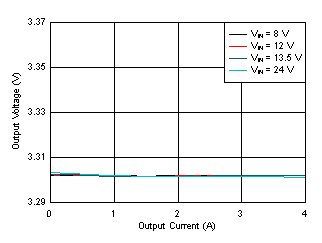

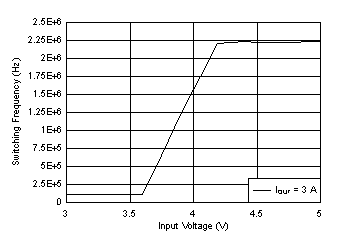

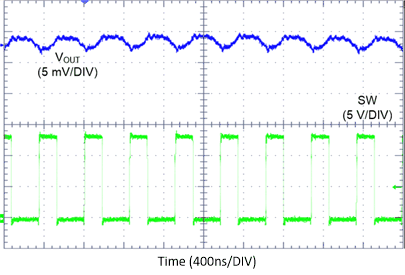

| VOUT = 3.3 V | FSW = 2100 kHz | FPWM Mode |
| VOUT = 5 V | FSW = 2100 kHz | FPWM Mode |
| VOUT = 3.3 V | FSW = 400 kHz | FPWM Mode |
| VOUT = 3.3 V | FSW = 2100 kHz | FPWM Mode |
| VOUT = 5 V | FSW = 400 kHz | FPWM Mode |
| VOUT = 5V | FSW = 2100 kHz | FPWM Mode |
| VOUT = 3.3 V | FSW = 2100 kHz | AUTO Mode |
| VOUT = 5 V | FSW = 2100 kHz | AUTO Mode |
| VOUT = 3.3 V | FSW = 2100 kHz | AUTO Mode |
| VOUT = 5 V | FSW = 2100 kHz | AUTO Mode |
| VOUT = 5 V | FSW = 2100 kHz | AUTO Mode |
| IOUT = 4 A | VIN = 13.5 V |
| VOUT = 5 V | FSW = 2100 kHz | FPWM Mode |

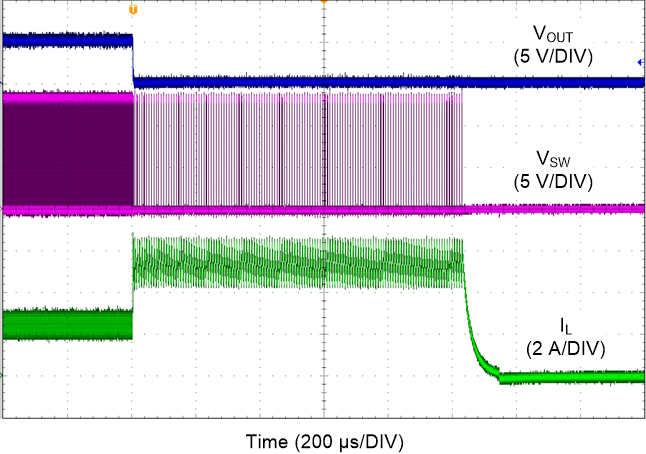

| IOUT = 2.5 A to Short Circuit | VIN = 13.5 V | |
| VOUT = 5 V | FSW = 2100 kHz | FPWM Mode |

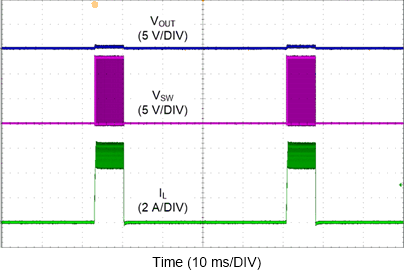

| IOUT = Short Circuit | VIN = 13.5 V |
| VOUT = 3.3 V | FSW = 2100 kHz | AUTO Mode |
| IOUT = 2 A to 4 A to 2 A | VIN = 13.5 V | TR = TF = 2μs |
| VOUT = 5 V | FSW = 400 kHz | IOUT = 5 A* |

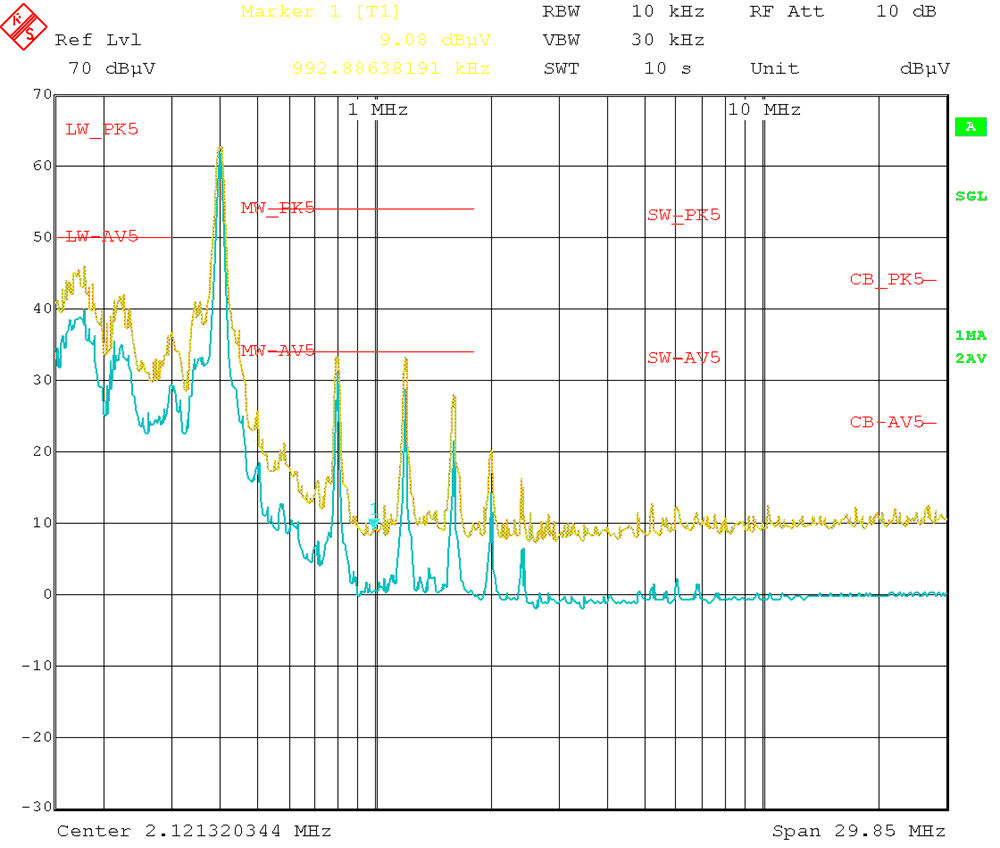

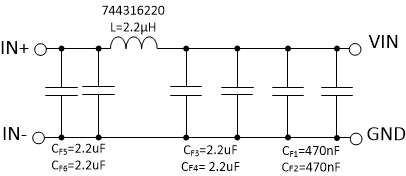

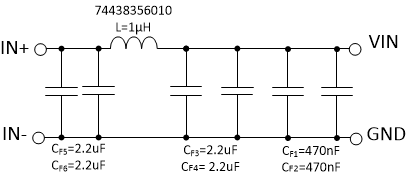

| Frequency Tested: 150 kHz to 30 MHz | ||
| *Tested on 6 A Variant | ||
| VOUT = 5 V | FSW = 400 kHz | IOUT = 5 A |
| Frequency Tested: 150 kHz to 30 MHz | ||
| VOUT = 5 V | FSW = 400 kHz | IOUT = 5 A |
| Frequency Tested: 30 MHz to 300 MHz | ||
| VOUT = 5 V | FSW = 400 kHz | IOUT = 5 A |
| Frequency Tested: 300 MHz to 1 GHz | ||
| FSW = 2100 kHz | VOUT = 5 V | IOUT = 5 A* |
| Frequency Tested: 150 kHz to 30 MHz | ||
| *Tested on 6 A Variant | ||
| Note: All EMI measurements taken with 6-A Variant | ||
| FSW = 2100 kHz | ||
Table 10-5 BOM for Typical Application
Curves
| VOUT | FREQUENCY | RFBB | RT | COUT | CIN + CHF | L | CFF |
|---|---|---|---|---|---|---|---|
| 3.3 V | 400 kHz | 43.2 k? | 33.2 k? | 4 x 22 μF | 2 x 4.7 μF + 2 x 100 nF | 8.2 μH (XHMI6060) | 22 pF |
| 3.3 V | 2100 kHz | 43.2 k? | 6.04 k? | 3 x 22 μF | 2 x 4.7 μF + 2 x 100 nF | 1.5 μH (MAPI 4020HT) | 22 pF |
| 5 V | 400 kHz | 24.9 k? | 33.2 k? | 3 x 22 μF | 2 x 4.7 μF + 2 x 100 nF | 8.2 μH (XHMI6060) | 22 pF |
| 5 V | 2100 kHz | 24.9 k? | 6.04 k? | 2 x 22 μF | 2 x 4.7 μF + 2 x 100 nF | 1.5 μH (MAPI 4020HT) | 22 pF |
