8.8 Typical Characteristics
Unless otherwise specified, VIN = 13.5 V and fSW = 400 kHz.
| VBIAS = 5 V |

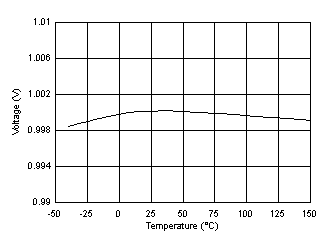

Figure 8-3 Feedback Voltage

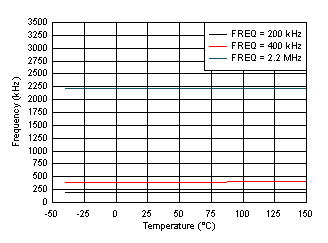

Figure 8-5 Switching Frequency Set by RT Resistor
Figure 8-7 Enable Thresholds
| VEN = 0 V |

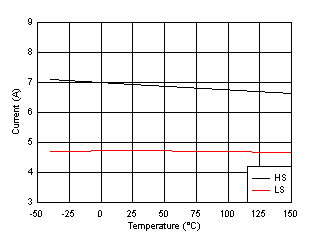

Figure 8-4 LM61440-Q1 High-side and Low-side Current Limits

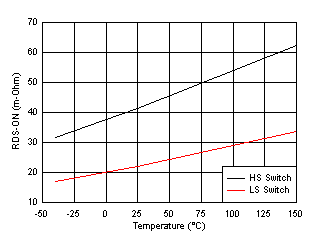

Figure 8-6 High-side and Low-side Switches RDS_ON

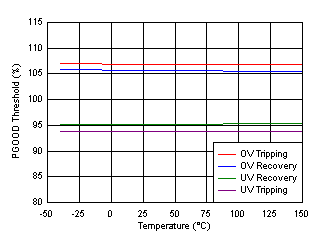

Figure 8-8 PGOOD Thresholds
