8.2 Typical Application
A typical application example is a buck-boost converter operating from a wide input voltage range of 6 V to 50 V and providing a stable 12-V output voltage with current capability of 6 A.

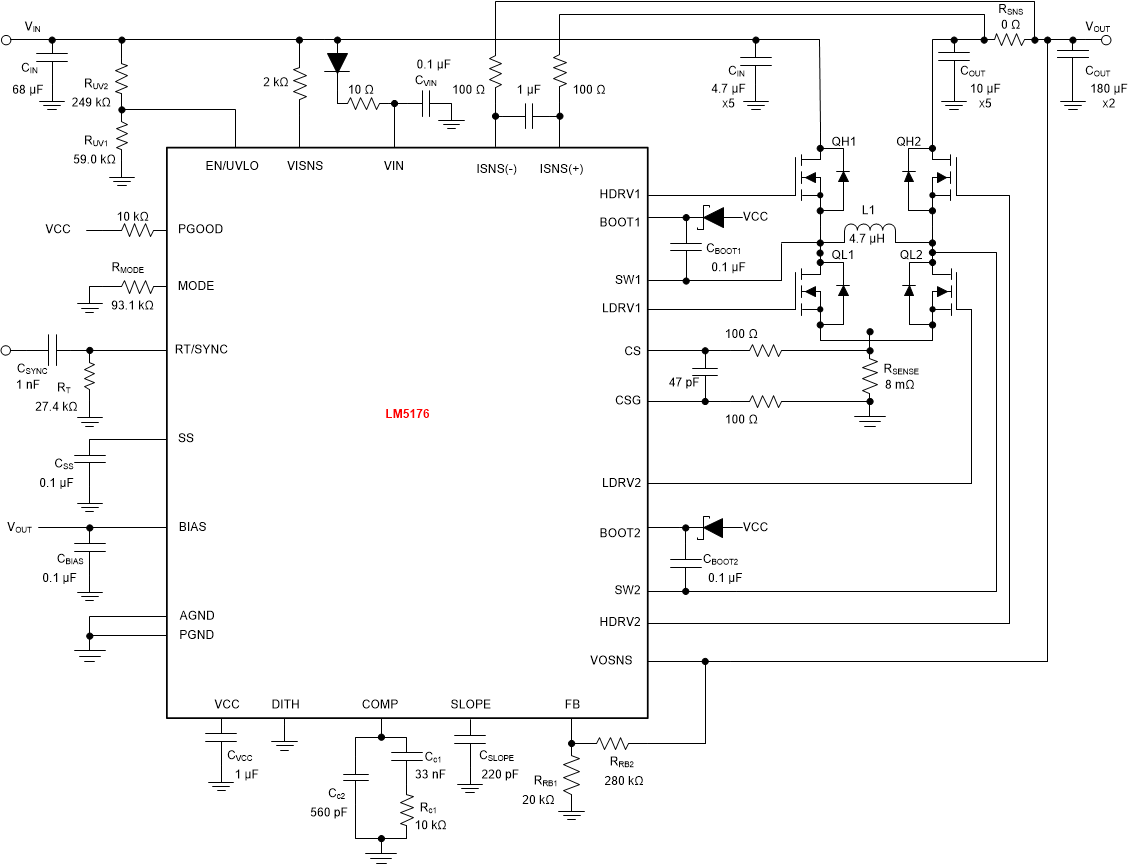

Figure 8-1 LM5176-Q1 Four-Switch Buck Boost Application Schematic
