8.2.1 Design 1: Wide VIN, Low IQ COT Converter Rated at 5 V, 150 mA

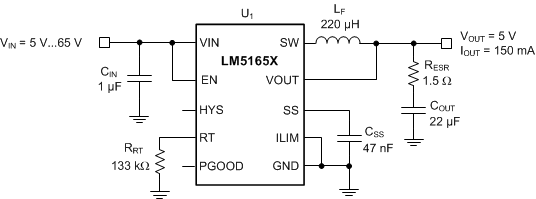

The schematic diagram of a 5-V, 150-mA COT converter is given in Figure 8-1.
Figure 8-1 Schematic for Design 1 With VIN(nom) = 12 V, VOUT = 5 V, IOUT(max) = 150 mA, FSW(nom) = 220 kHz
