8.2.4 Design 4: 3.3-V, 150-mA COT Converter With High Efficiency
The schematic diagram of a 3.3-V, 150-mA COT converter is given in Figure 8-26.

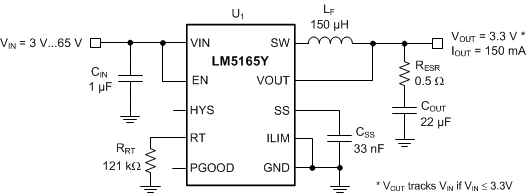

Figure 8-26 Schematic for Design 4 With VIN(nom) = 24 V, VOUT = 3.3 V, IOUT(max) = 150 mA, FSW(nom) = 160 kHz
