8.2.2 Design 2: Small Solution Size PFM Converter Rated at 3.3 V, 50 mA

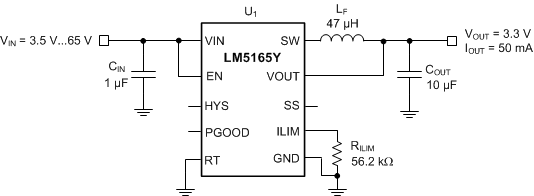

The schematic diagram of a 3.3-V, 50-mA PFM converter with minimum component count is given in Figure 8-14.
Figure 8-14 Schematic for Design 2 With VIN(nom) = 12 V, VOUT = 3.3 V, IOUT(max) = 50 mA, FSW(nom) = 350 kHz
