8.2.2.3 Application Curves

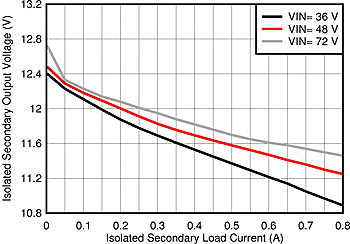

Figure 35. Load Regulation

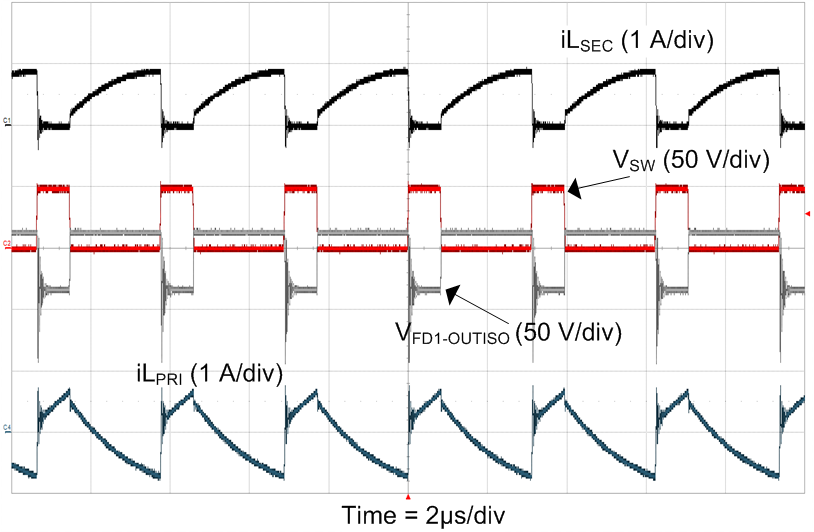

Figure 37. Steady State at VIN = 48 V
and IOUT2 = 500 mA

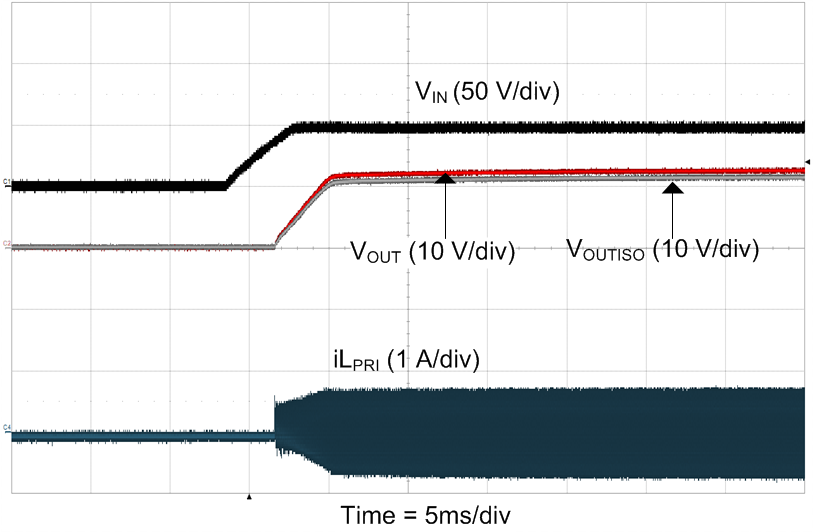

Figure 39. VIN Startup at IISO = 500 mA

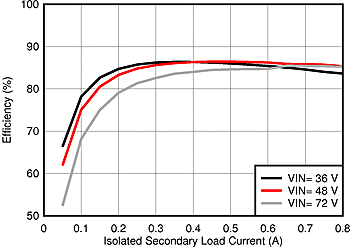

Figure 36. Efficiency vs. IISO

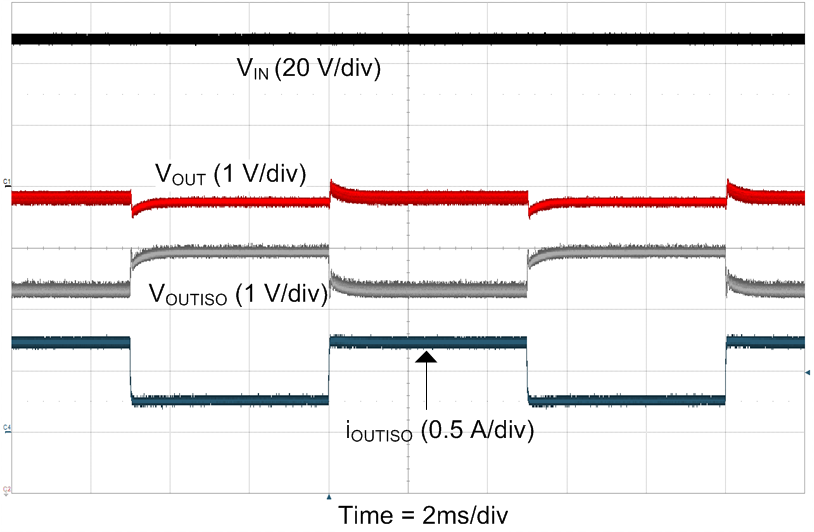

Figure 38. Secondary Load Transient
at IISO = 250 mA - 750 mA

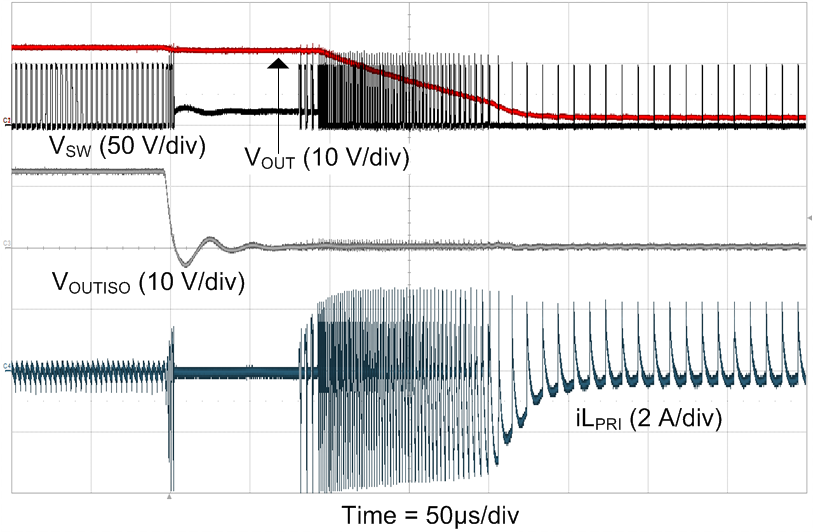

Figure 40. Secondary-Side Short at IOUT2 = 0 A
and IPRI = 0 A
