10.3 System Examples
Figure 10-3 Typical Boost Application

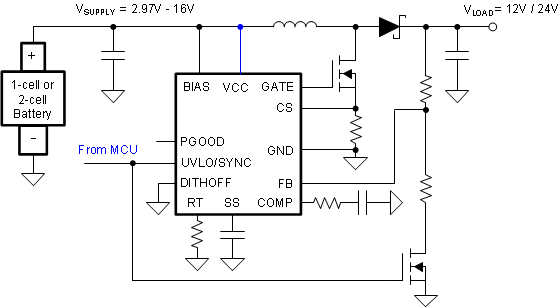

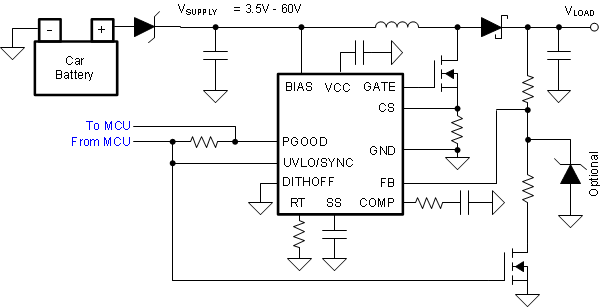

Figure 10-4 Typical Start-Stop Application
Figure 10-5 Emergency-call / Boost On-Demand / Portable Speaker

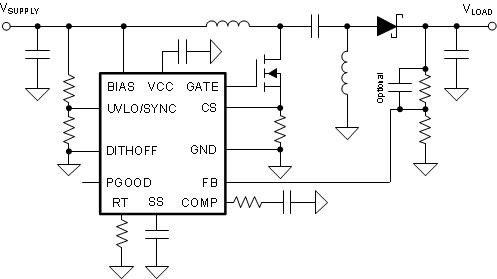

Figure 10-6 Typical SEPIC Application

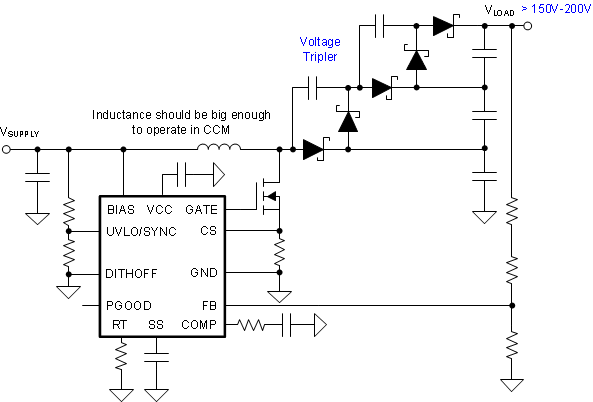

Figure 10-7 LIDAR Bias Supply 1
Figure 10-8 LIDAR Bias Supply 2

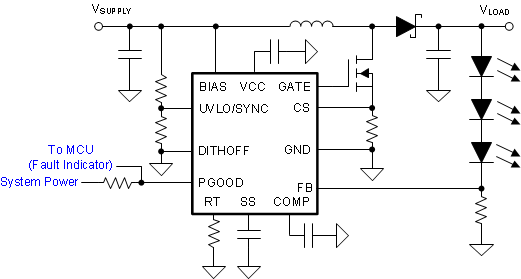

Figure 10-9 Low-Cost LED Driver

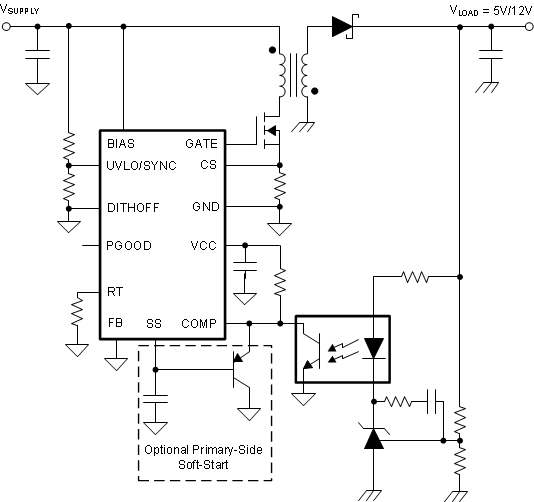

Figure 10-10 Secondary-Side Regulated Isolated Flyback

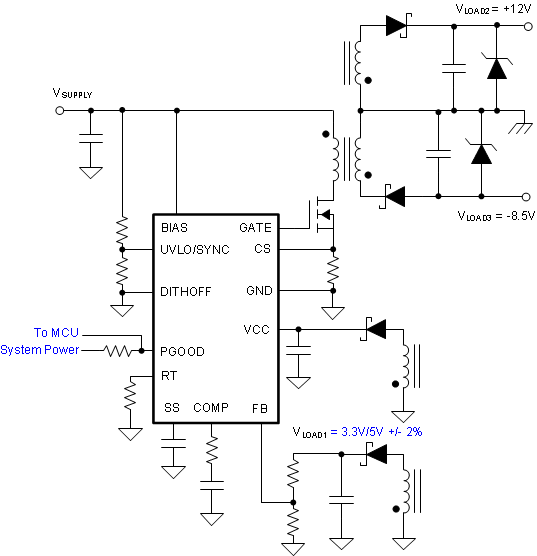

Figure 10-11 Primary-Side Regulated
Multiple-Output Isolated Flyback

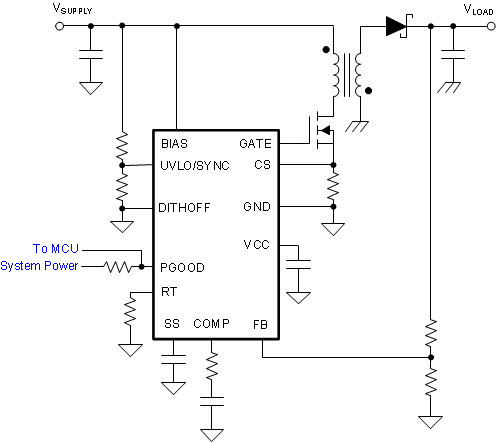

Figure 10-12 Typical Non-Isolated Flyback

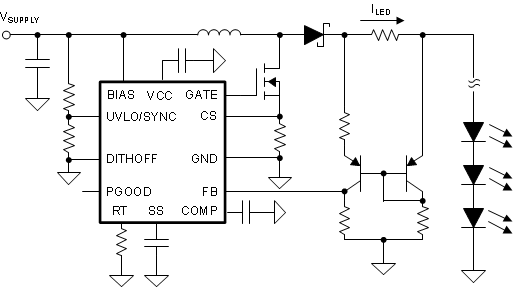

Figure 10-13 LED Driver with High-Side Current Sensing

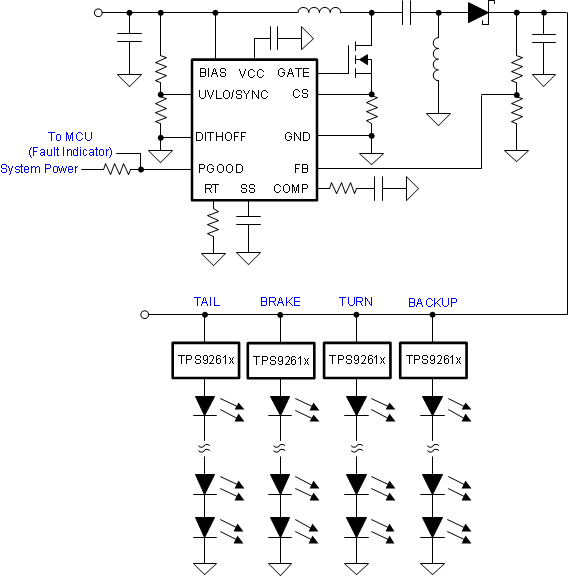

Figure 10-14 Dual-Stage Automotive Rear-Lights LED Driver
