8.3.3 Power-On Voltage Selection (VSET Pin)
During initial power on, the VOUT regulation target and the configuration are configured by a resistor connected between the VSET and the AGND pins. The configuration starts when the EN pin voltage is greater than 2 V and the AVCC voltage crosses the AVCC UVLO threshold, and requires typically 50 μs to finish. To reset and reconfigure, EN should be toggled below 1 V or AVCC/VOUT must be fully discharged.

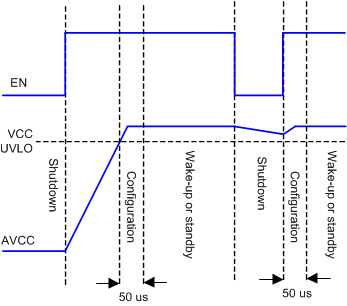

Figure 8-1 Power-On Voltage SelectionThe VOUT regulation target can be programmed to 6.8 V, 7.5 V, 8.5 V, or 10.5 V with the appropriate resistor with 5% tolerance. The configuration can be selected as either SS or EC configuration. The LM5150-Q1 will not switch during the 50-μs configuration time.
| CONFIGURATION | EMERGENCY-CALL | START-STOP | ||||||
|---|---|---|---|---|---|---|---|---|
| VOUT regulation target | 6.8 V | 7.5 V | 8.5 V | 10.5 V | 6.8 V | 7.5 V | 8.5 V | 10.5 V |
| RSET [?] | 90.9 k | 71.5 k | 54.9 k | 41.2 k | 29.4 k | 19.1 k | 9.53 k | Ground |
