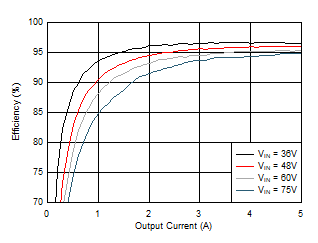

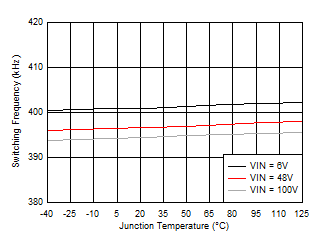

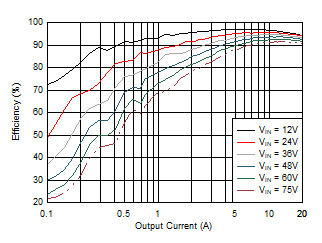

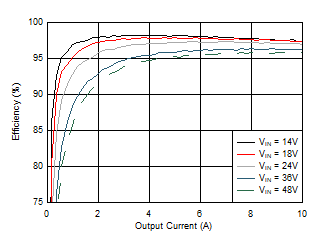

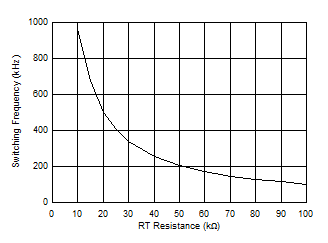

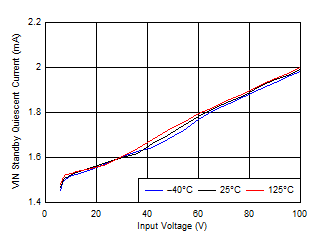

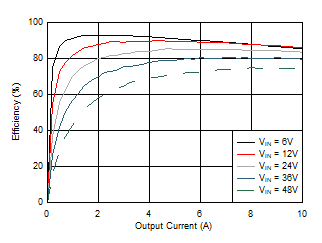

7.7 Typical Characteristics
VVIN = 48 V, RRT = 25 k?, SYNCIN tied to VCC, EN/UVLO tied to VIN (unless otherwise noted).
| VOUT = 5 V | VSYNCIN = VVCC | FSW = 230 kHz |
| See Figure 9-5 | RRT = 43.2 kΩ |
| VSW = 0 V | VEN/UVLO = 1 V |
| VSW = 0 V | HO, LO Open |

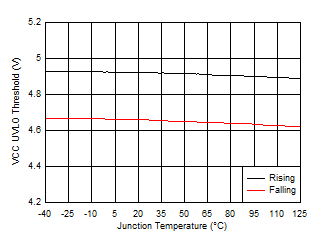

Figure 7-15 VCC UVLO Thresholds vs Junction Temperature
Figure 7-17 PGOOD UVP Thresholds vs Junction Temperature

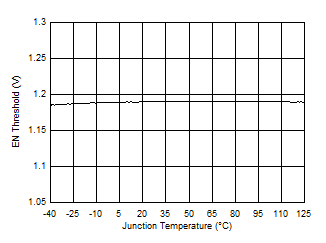

Figure 7-19 EN/UVLO Threshold vs Junction Temperature
| VSW = 0 V |

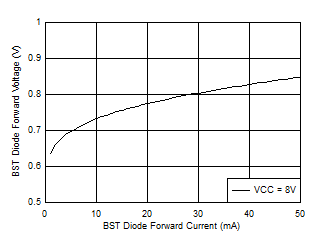

Figure 7-23 BST Diode Forward Voltage vs Current
Figure 7-25 HO Driver Resistance vs VCC Voltage
| VSS/TRK = 0 V |
| VIN = 12 V |
| VOUT = 5 V | VSYNCIN = 0 V | FSW = 230 kHz |
| See Figure 9-5 | RRT = 43.2 kΩ |
| VSW = 0 V | VEN/UVLO = 0 V |
| VSW = 0 V | VEN/UVLO = VVIN | VSS/TRK = 0 V |
| VSW = 0 V | VVCC = VBST = VILIM | VFB = 0 V |
| VSW = 0 V |

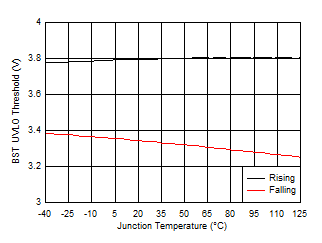

Figure 7-16 BST UVLO Thresholds vs Junction Temperature

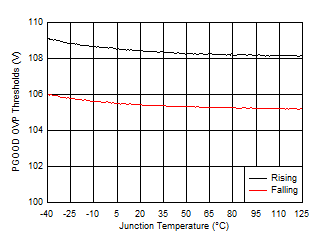

Figure 7-18 PGOOD OVP Thresholds vs Junction Temperature

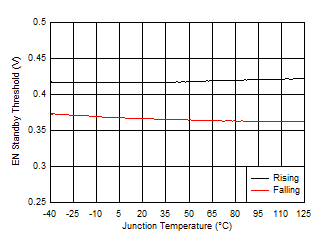

Figure 7-20 EN Standby Thresholds vs Junction Temperature

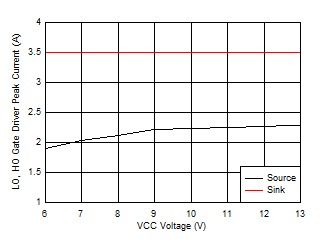

Figure 7-24 Gate Driver Peak Current vs VCC Voltage

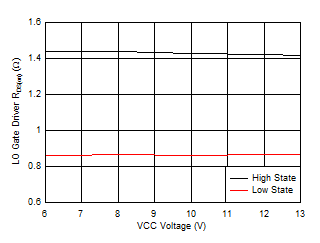

Figure 7-26 LO Driver Resistance vs VCC Voltage
| VIN = 6 V |
