Switching regulators exhibit negative input impedance, which is lowest at the minimum input voltage. An underdamped LC filter exhibits a high output impedance at the resonant frequency of the filter. For stability, the filter output impedance must be less than the absolute value of the converter input impedance.

Equation 17.

The EMI filter design steps are as follows:

• Calculate the required attenuation of the EMI filter at the switching frequency, where C_IN represents the existing capacitance at the input of the switching converter.
• Input filter inductor L_IN is usually selected between 1 μH and 10 μH, but it can be lower to reduce losses in a high current design.
• Calculate input filter capacitor C_F.

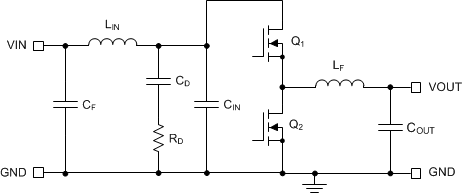

Figure 9-4 Buck Regulator With π-Stage EMI Filter

By calculating the first harmonic current from the Fourier series of the input current waveform and multiplying it by the input impedance (the impedance is defined by the existing input capacitor C_IN), a formula is derived to obtain the required attenuation as shown by Equation 18.

Equation 18.

where

• V_MAX is the noise specification in dBμV from the applicable EMI standard, for example CISPR 25 Class 5
• C_IN is the existing input capacitance of the buck regulator
• D_MAX is the maximum duty cycle
• I_PEAK is the peak inductor current

For filter design purposes, the current at the input can be modeled as a square-wave. Determine the EMI filter capacitance C_F from Equation 19.

Equation 19.

Adding an input filter to a switching regulator modifies the control-to-output transfer function. The output impedance of the filter must be sufficiently small such that the input filter does not significantly affect the loop gain of the buck converter. The impedance peaks at the filter resonant frequency. The resonant frequency of the filter is given by Equation 20.

Equation 20.

The purpose of R_D is to reduce the peak output impedance of the filter at the resonant frequency. Capacitor C_D blocks the DC component of the input voltage to avoid excessive power dissipation in R_D. Capacitor C_D must have lower impedance than R_D at the resonant frequency with a capacitance value greater than that of the input capacitor C_IN. This prevents C_IN from interfering with the cutoff frequency of the main filter. Added damping is needed when the output impedance of the filter is high at the resonant frequency (Q of filter formed by L_IN and C_IN is too high). An electrolytic capacitor C_D can be used for damping with a value given by Equation 21.

Equation 21.

Select the damping resistor R_D using Equation 22.

Equation 22.
