5 Pin Configuration and Functions

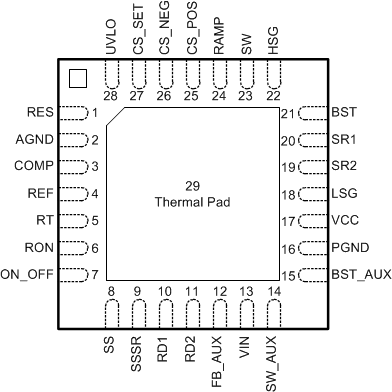

Figure 5-1 RJB Package, 28-Pin WQFN (Top
View)Table 5-1 Pin Functions
| PIN | TYPE(1) | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| AGND | 2 | G | Analog ground |
| BST | 21 | I | Half-bridge high-side gate drive bootstrap |
| BST_AUX | 15 | I | Auxiliary supply high-side gate drive bootstrap |
| COMP | 3 | I | Control current input to half-bridge PWM comparator |
| CS_NEG | 26 | I | Current sense amplifier negative input terminal |
| CS_POS | 25 | I | Current sense amplifier positive input terminal |
| CS_SET | 27 | I | Current limit setting |
| FB_AUX | 12 | I | Auxiliary supply output voltage feedback |
| HSG | 22 | O | Half-bridge high-side MOSFET output driver |
| LSG | 18 | O | Half-bridge low-side MOSFET output driver |
| ON_OFF | 7 | I | Configurable for over voltage protection (OVP) or latch mode |
| PGND | 16 | G | Power ground |
| RAMP | 24 | I | RAMP signal input to half-bridge PWM comparator |
| RD1 | 10 | I | Synchronous rectifier trailing-edge delay |
| RD2 | 11 | I | Synchronous rectifier leading-edge delay |
| REF | 4 | O | 5-V reference regulator output |
| RES | 1 | I | Hiccup mode restart timer |
| RON | 6 | I | Auxiliary supply on-time control |
| RT/SYNC | 5 | I | Oscillator frequency control or external clock synchronization |
| SR1 | 20 | O | Synchronous rectifier PWM control output |
| SR2 | 19 | O | Synchronous rectifier PWM control output |
| SS | 8 | I | Soft-start input |
| SSSR | 9 | I | Synchronous rectifier soft-start input |
| SW | 23 | I | Half-bridge switch node |
| SW_AUX | 14 | I | Auxiliary supply switch node |
| UVLO | 28 | I | Input undervoltage lockout |
| VCC | 17 | I | Bias supply |
| VIN | 13 | I | Input voltage |
| Pad | 29 | G | Exposed thermal pad |
(1) I = Input, O = Output, I/O =
Input or Output, G = Ground, P = Power.
