6.6 Typical Characteristics

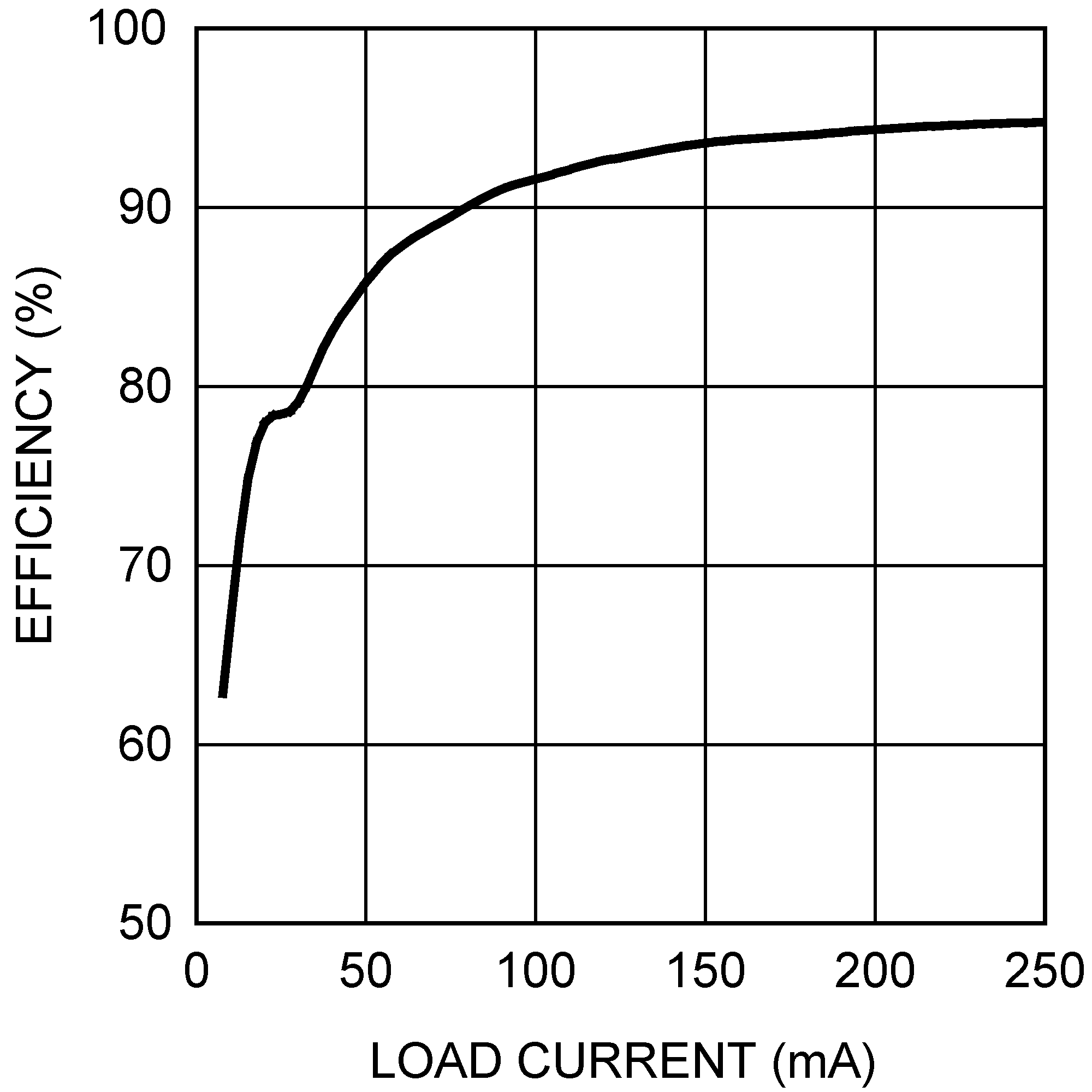

Figure 6-1 Efficiency, Boost Converter

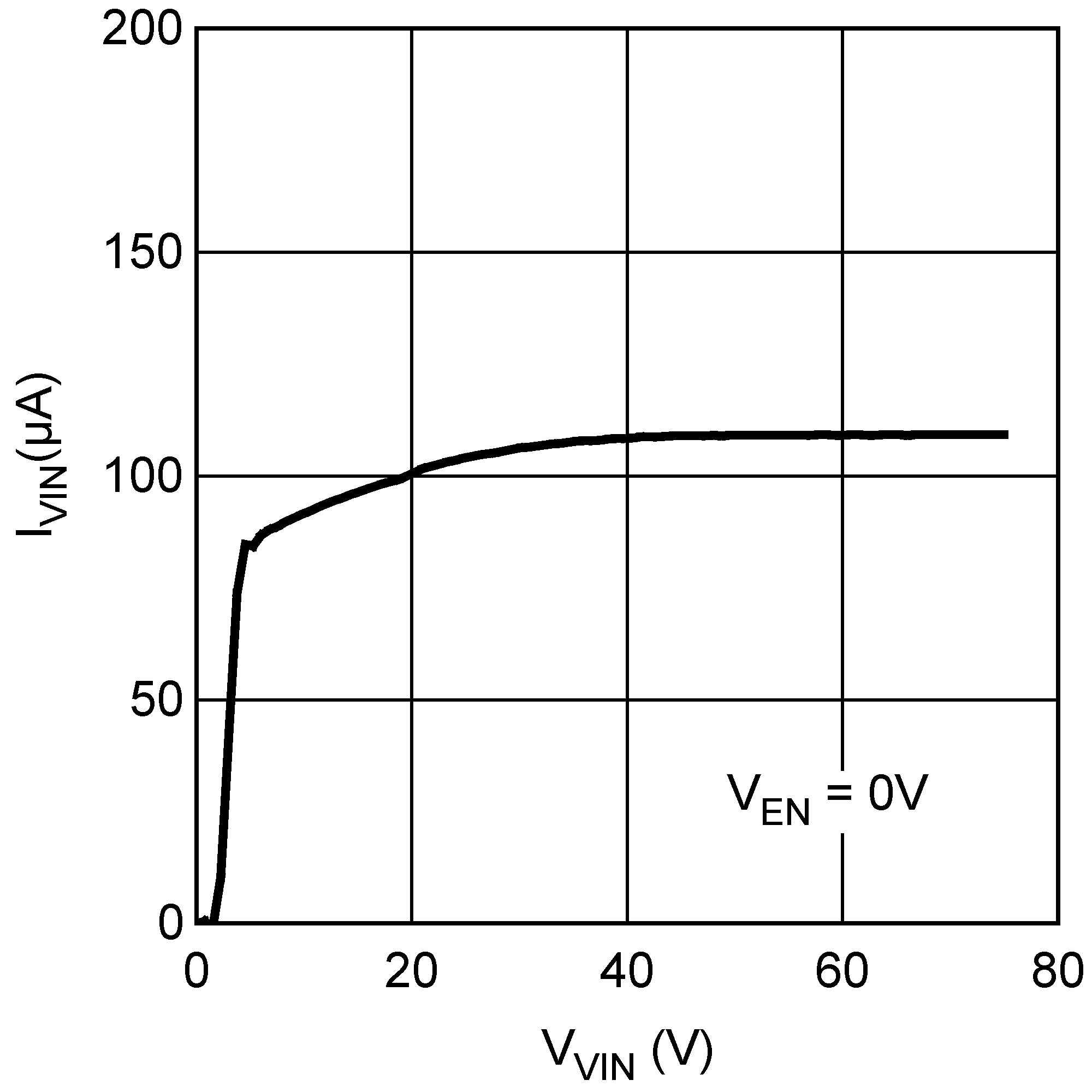

Figure 6-3 IQ (Non-Switching) vs VIN

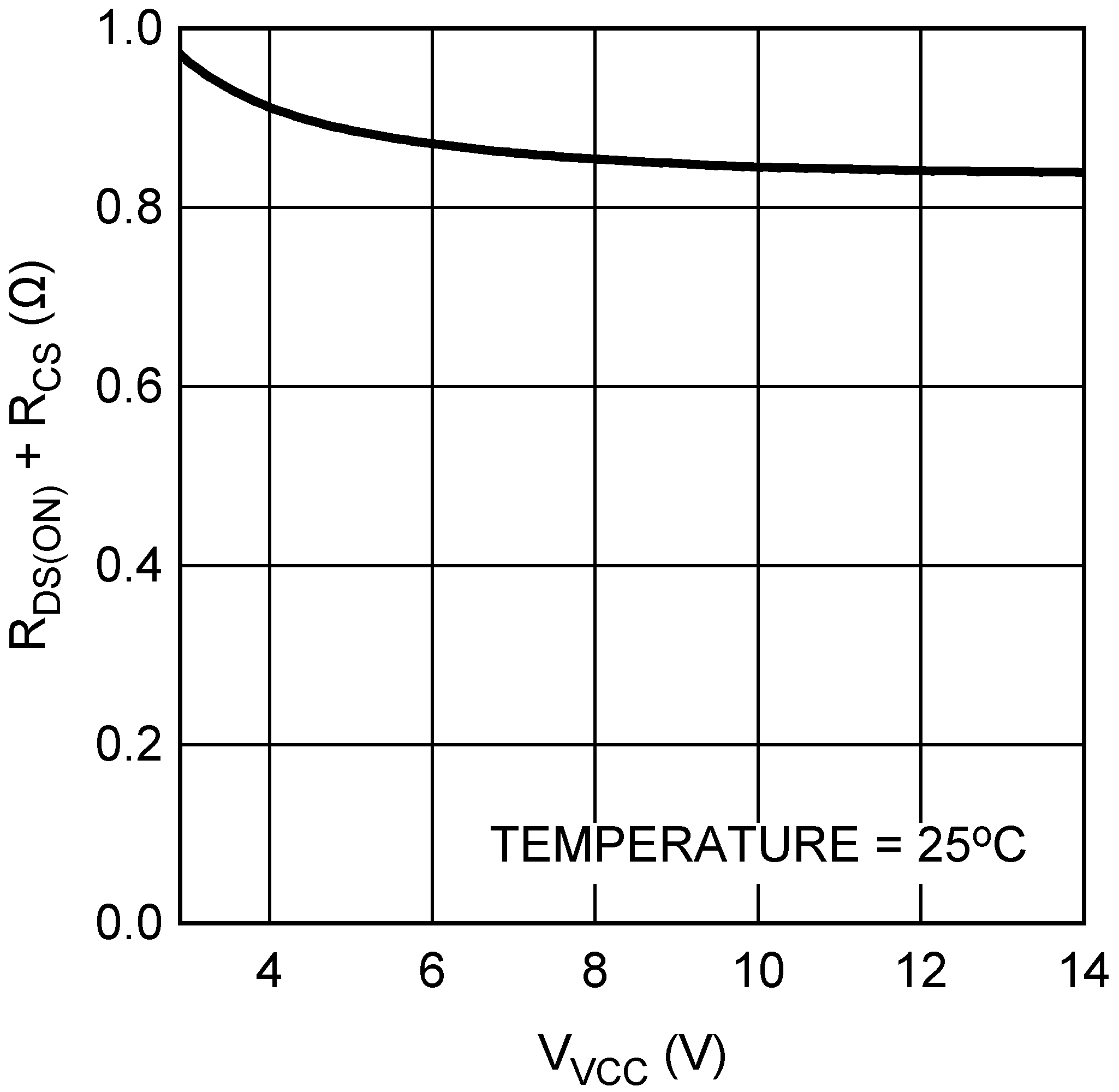

Figure 6-5 RDS(ON) vs VCC

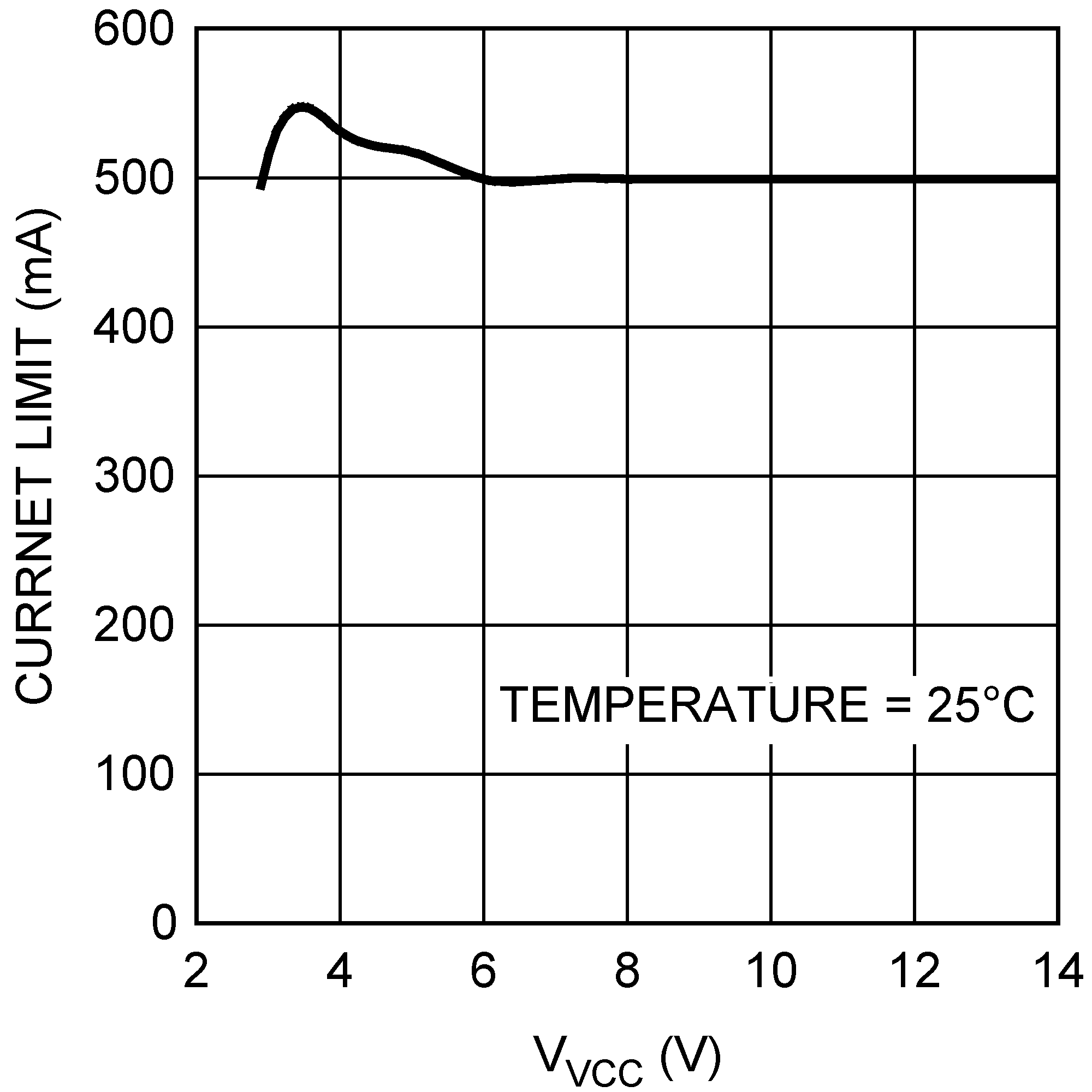

Figure 6-7 ILIM vs VCC

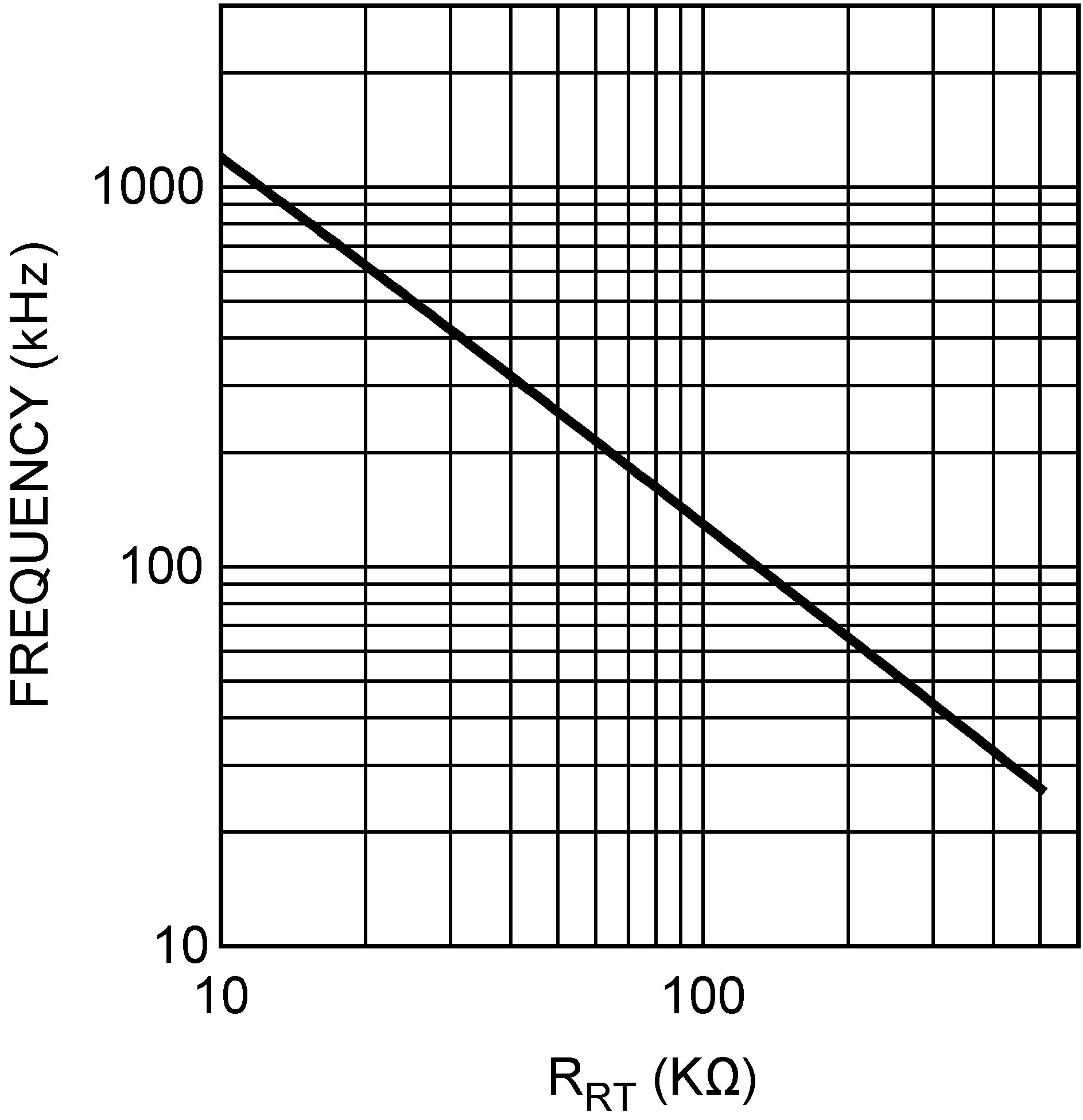

Figure 6-9 FSW vs RRT

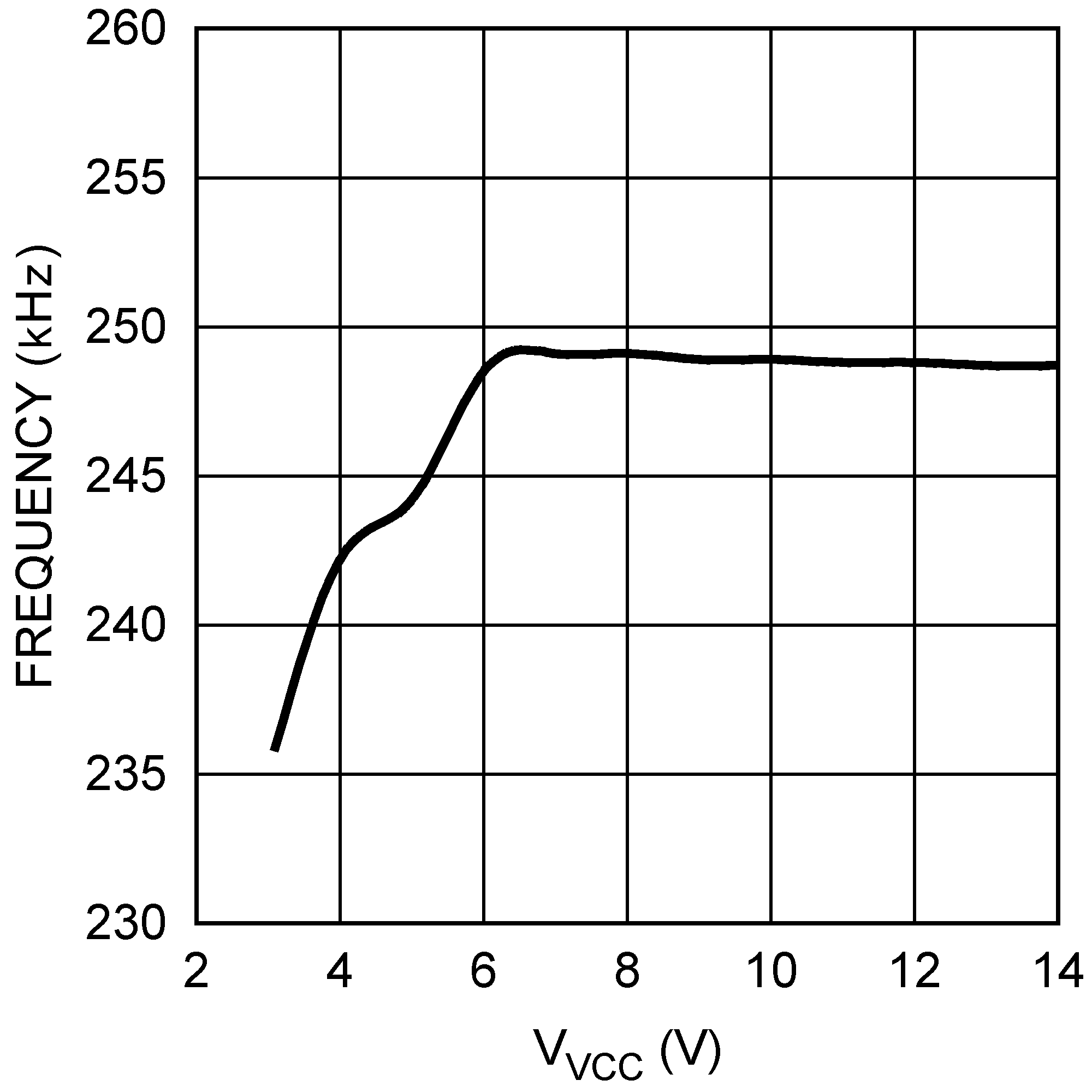

Figure 6-11 FSW vs VCC

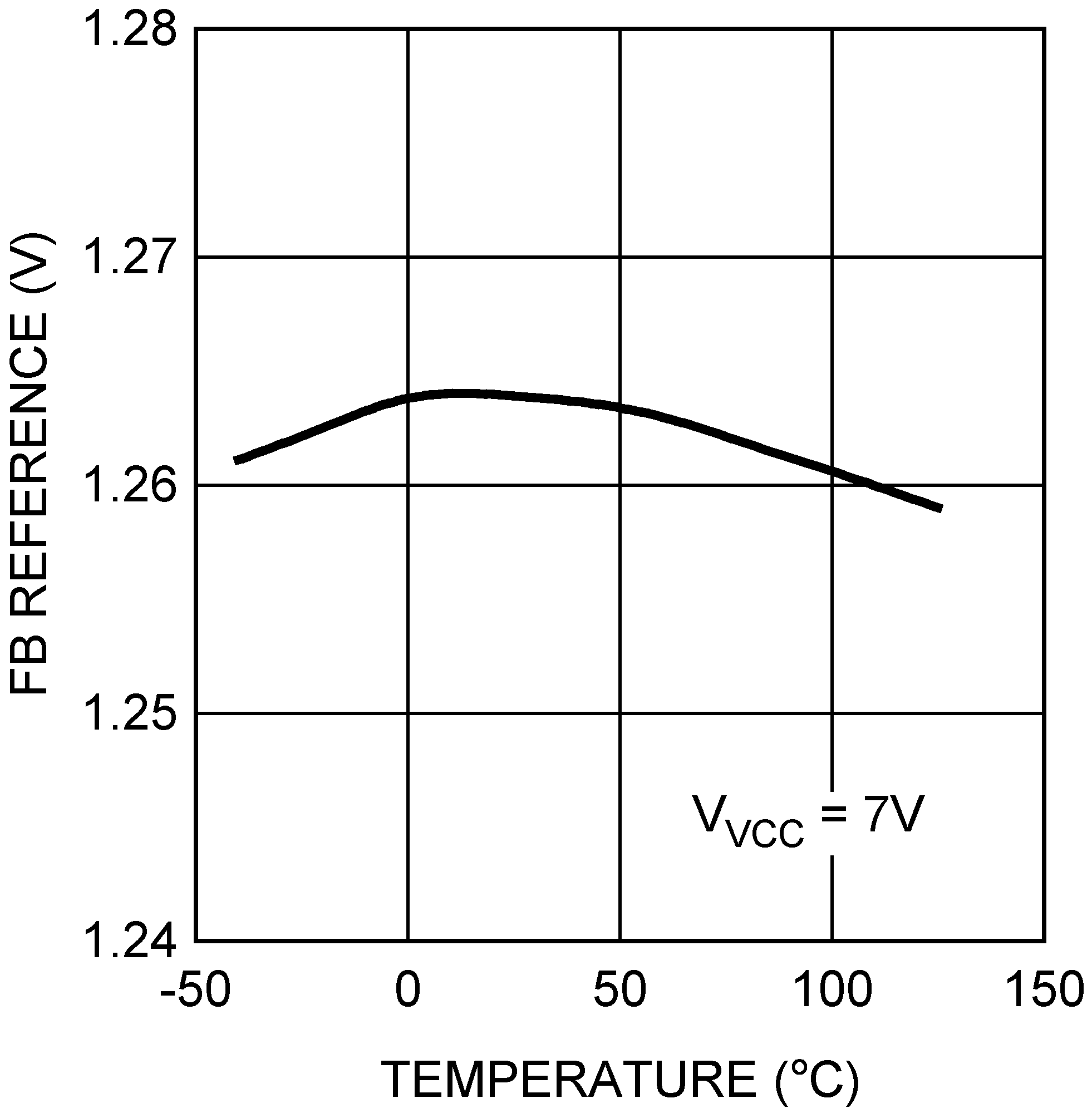

Figure 6-2 VFB vs Temperature

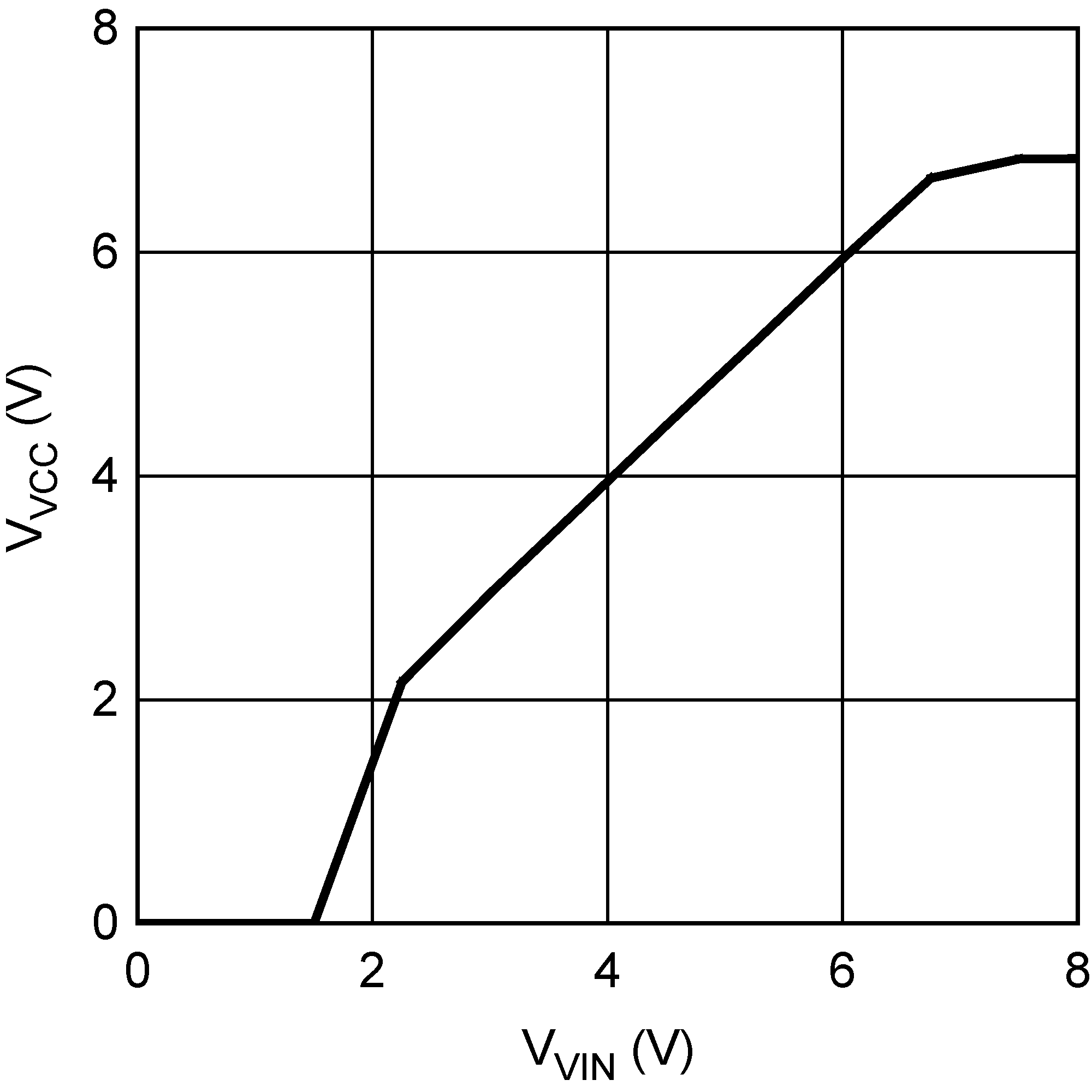

Figure 6-4 VCC vs VIN

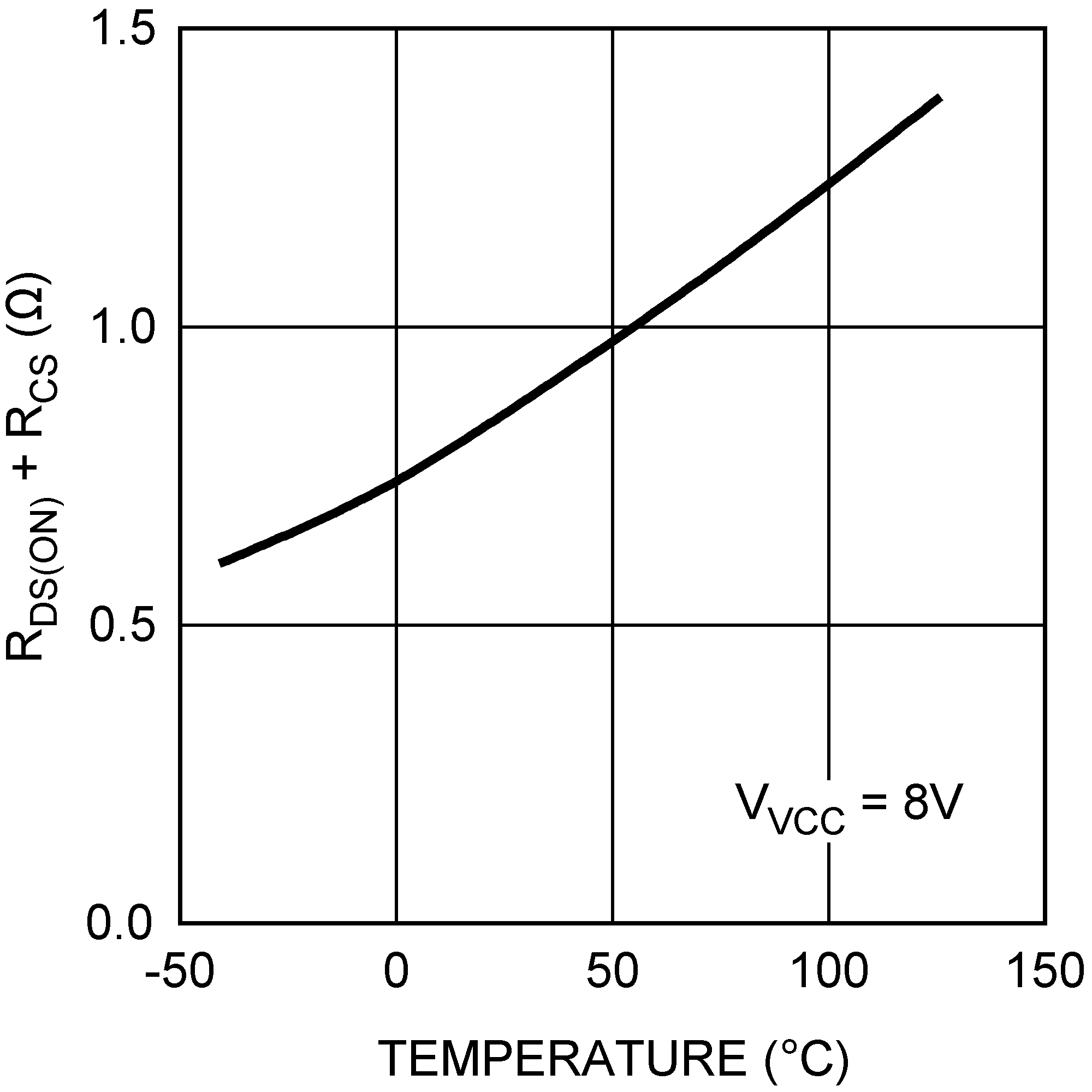

Figure 6-6 RDS(ON) vs Temperature

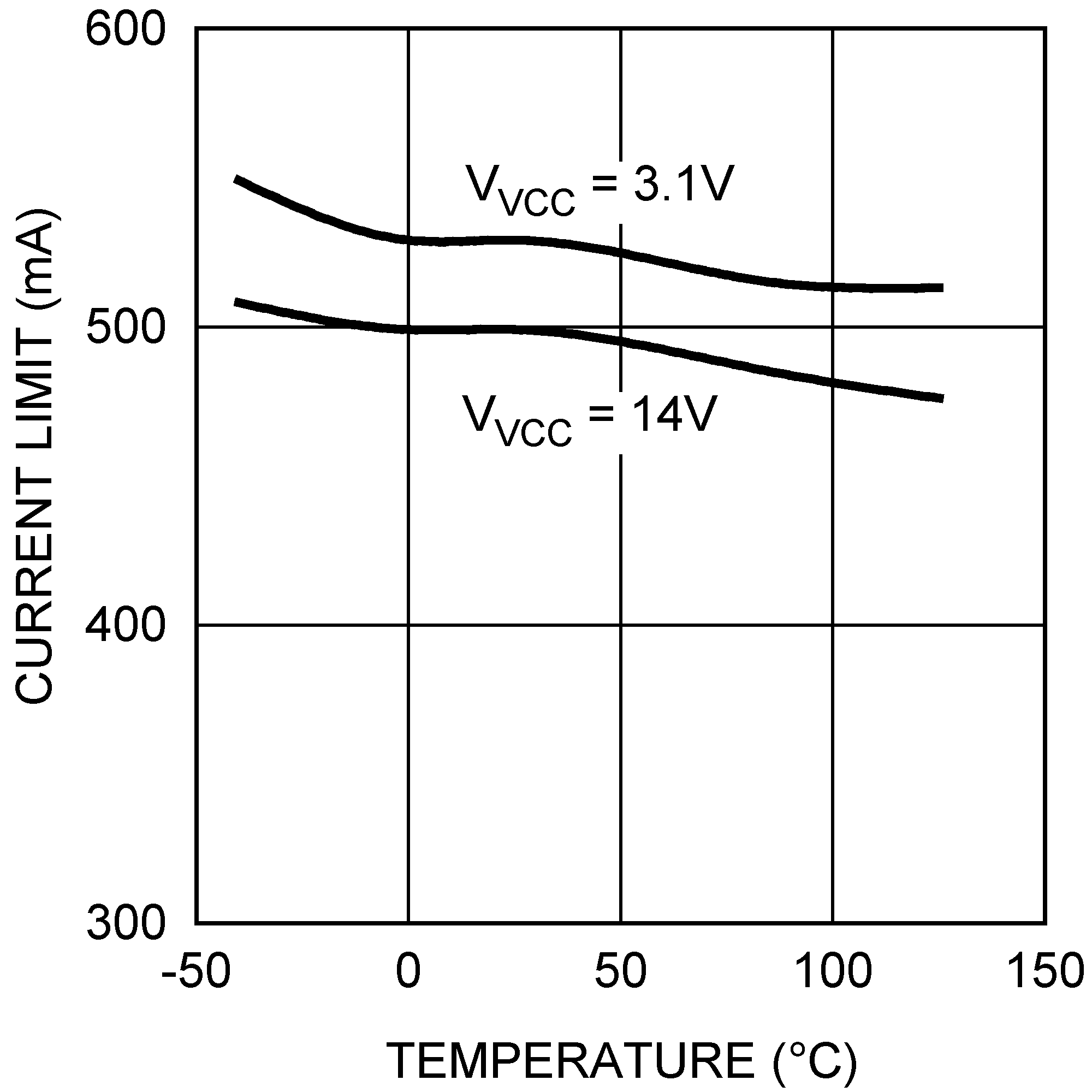

Figure 6-8 ILIM vs VCC vs Temperature

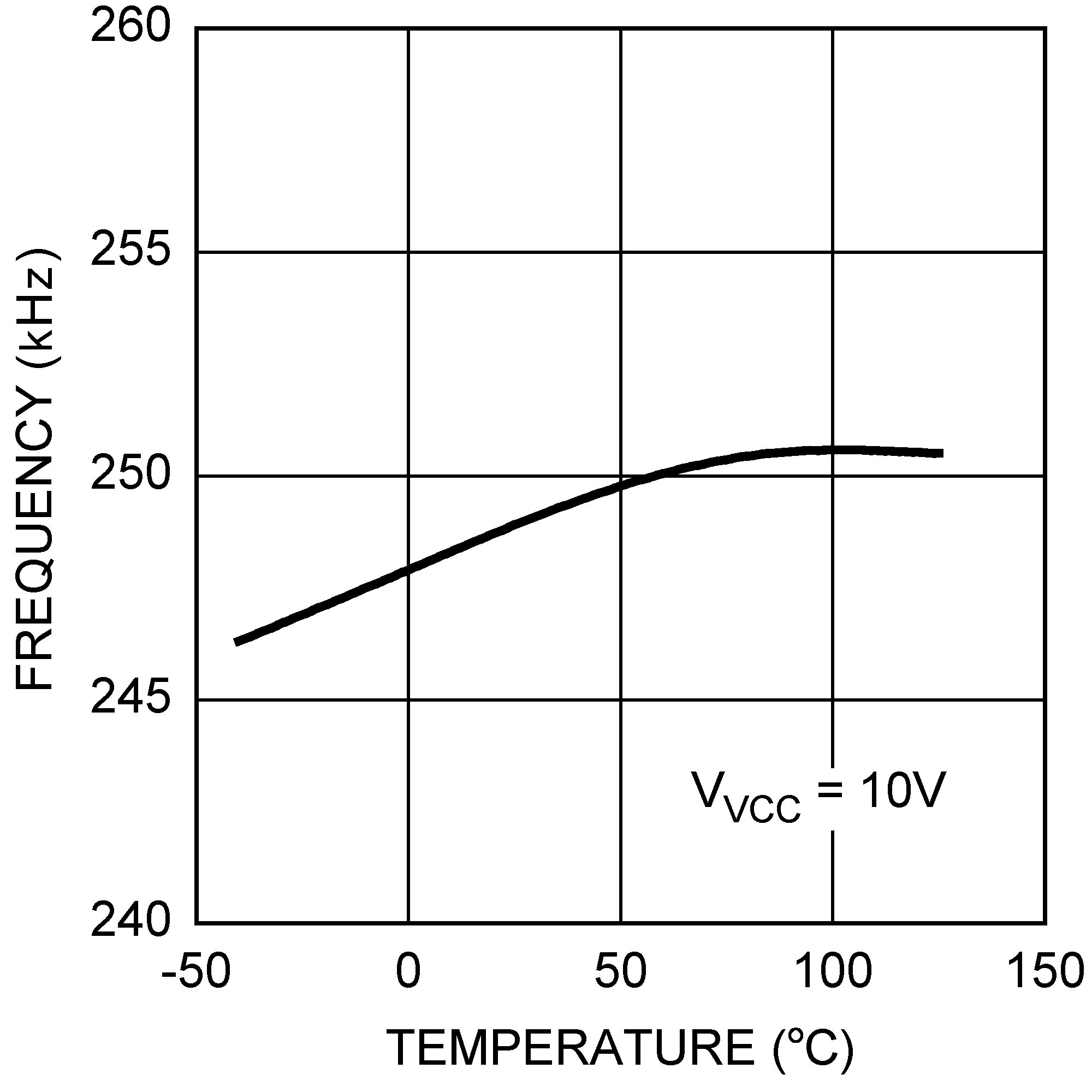

Figure 6-10 FSW vs Temperature

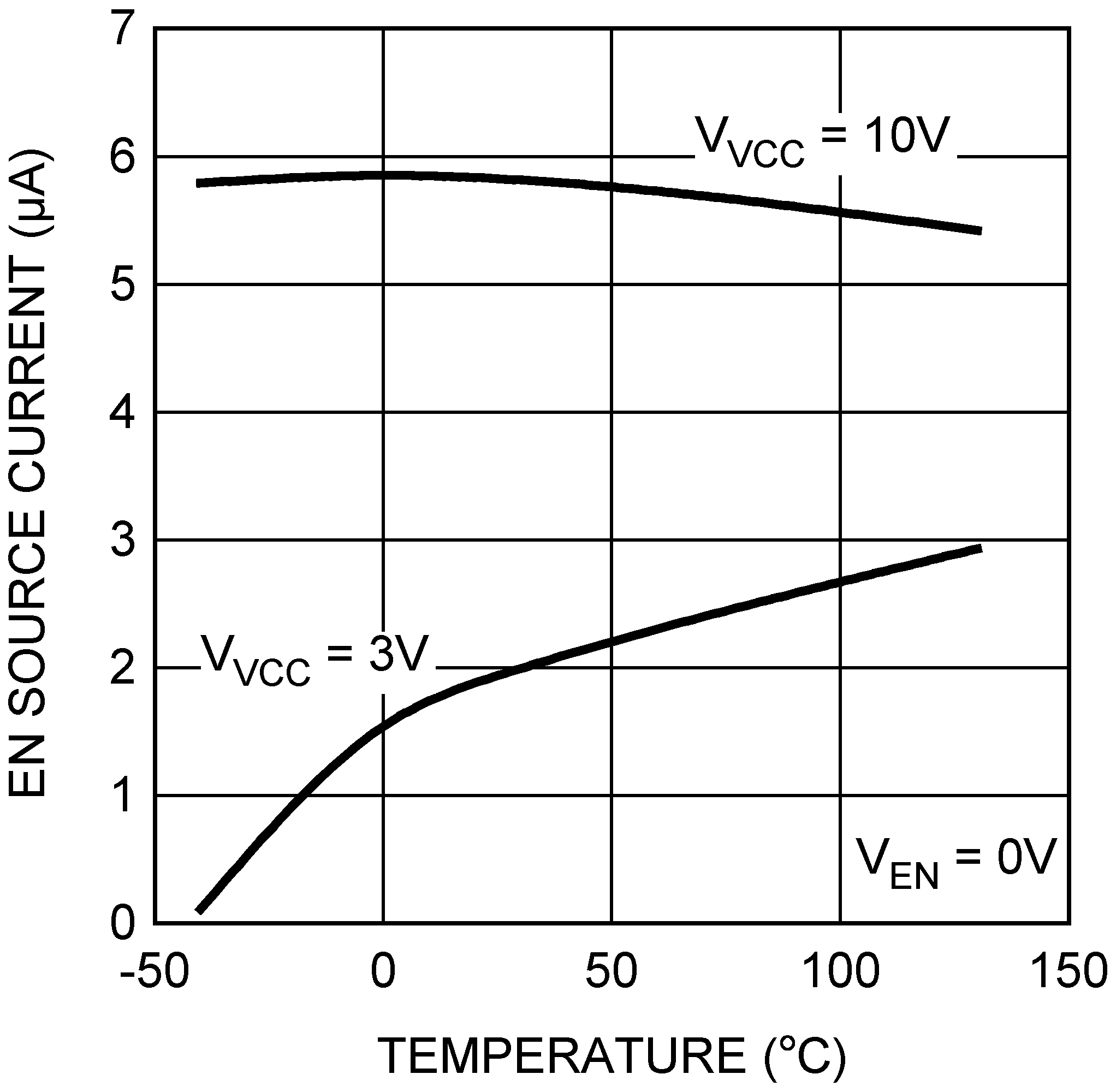

Figure 6-12 IEN vs VVIN vs Temperature
