8.2.3 Application Curves

See Table 2 for bill of materials for each V_OUT and F_S combination. Unless otherwise stated, application performance curves were taken at T_A = 25°C.

V_OUT = 3.3 V

F_S = 500 kHz

V_IN = 24 V

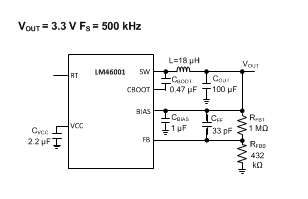

Figure 47. BOM for V_OUT = 3.3 V F_S = 500 kHz

V_OUT = 3.3 V

F_S = 500 kHz

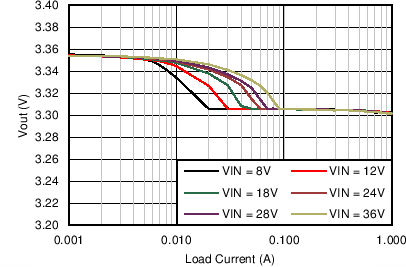

Figure 49. Output Voltage Regulation

V_OUT = 3.3 V

F_S = 500 kHz

V_IN = 24 V

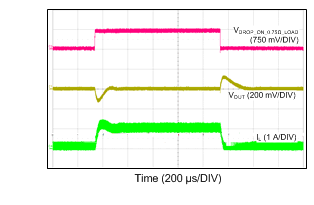

Figure 51. Load Transient Between 0.1 A and 1 A

V_OUT = 5 V

F_S = 500 kHz

V_IN = 24 V

Figure 53. BOM for V_OUT = 5 V, F_S = 500 kHz

V_OUT = 5 V

F_S = 500 kHz

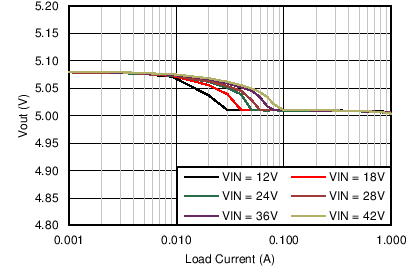

Figure 55. Output Voltage Regulation

V_OUT = 5 V

F_S = 500 kHz

V_IN = 24 V

Figure 57. Load Transient Between 0.1 A and 1 A

V_OUT = 5 V

F_S = 200 kHz

V_IN = 24 V

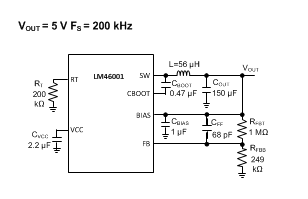

Figure 59. BOM for V_OUT = 5 V, F_S = 200 kHz

V_OUT = 5 V

F_S = 200 kHz

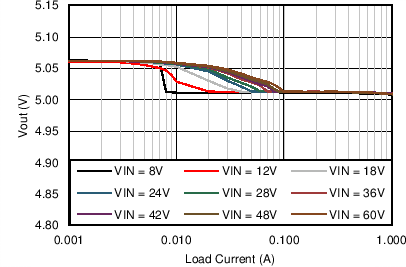

Figure 61. Output Voltage Regulation

V_OUT = 5 V

F_S = 200 kHz

V_IN = 24 V

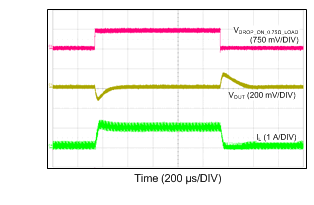

Figure 63. Load Transient Between 0.1 A and 1 A

V_OUT = 5 V

F_S = 1 MHz

V_IN = 24 V

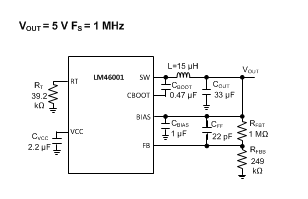

Figure 65. BOM for V_OUT = 5 V, F_S = 1 MHz

V_OUT = 5 V

F_S = 1 MHz

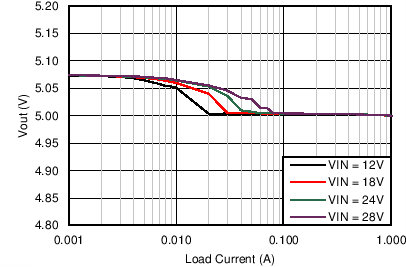

Figure 67. Output Voltage Regulation

V_OUT = 5 V

F_S = 1 MHz

V_IN = 24 V

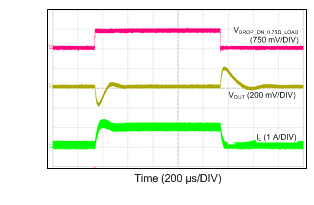

Figure 69. Load Transient Between 0.1 A and 1 A

V_OUT = 12 V

F_S = 500 kHz

V_IN = 24 V

Figure 71. BOM for V_OUT = 12 V, F_S = 500 kHz

V_OUT = 12 V

F_S = 500 kHz

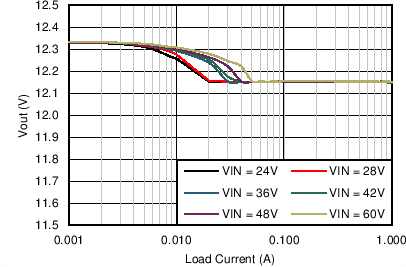

Figure 73. Output Voltage Regulation

V_OUT = 12 V

F_S = 500 kHz

V_IN = 24 V

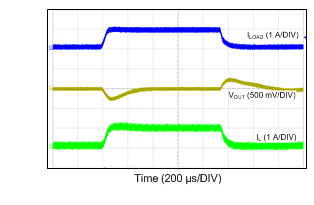

Figure 75. Load Transient Between 0.1 A and 1 A

V_OUT = 24 V

F_S = 500 kHz

V_IN = 48 V

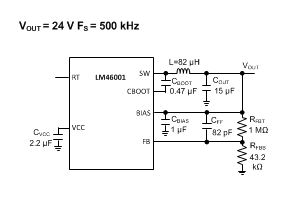

Figure 77. BOM for V_OUT = 24 V, F_S = 500 kHz

V_OUT = 24 V

F_S = 500 kHz

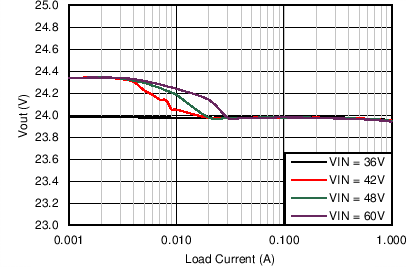

Figure 79. Output Voltage Regulation

V_OUT = 24 V

F_S = 500 kHz

V_IN = 48 V

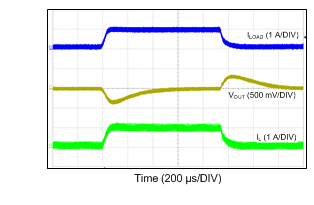

Figure 81. Load Transient Between 0.1 A and 1 A

V_OUT = 3.3 V

F_S = 500 kHz

R_θJA = 20 °C/W

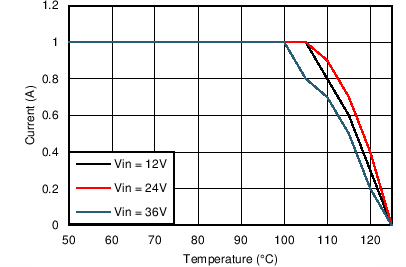

Figure 83. Derating Curve with R_θJA = 20°C/W

V_OUT = 5 V

F_S = 200 kHz

R_θJA = 20 °C/W

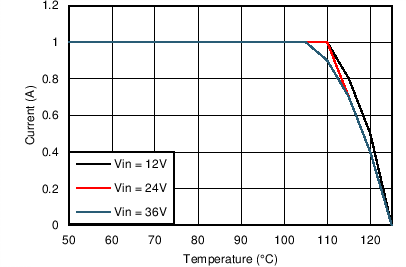

Figure 85. Derating Curve with R_θJA = 20°C/W

V_OUT = 3.3 V

F_S = 500 kHz

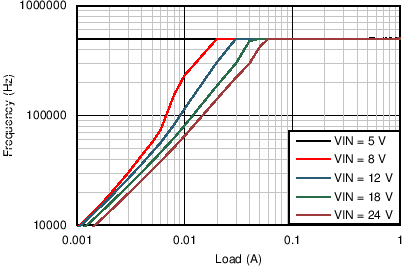

Figure 87. Switching Frequency vs I_OUT in PFM Operation

V_OUT = 3.3 V

F_S = 500 kHz

I_OUT = 1 A

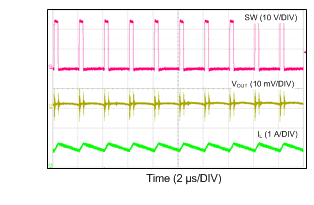

Figure 89. Switching Waveform in CCM Operation

V_OUT = 3.3 V

F_S = 500 kHz

I_OUT = 10 mA

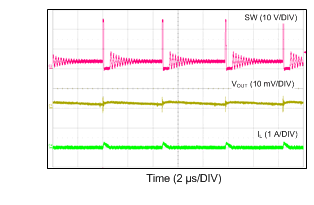

Figure 91. Switching Waveform in PFM Operation

V_IN = 24 V

V_OUT = 3.3 V

R_LOAD = 6.6 Ω

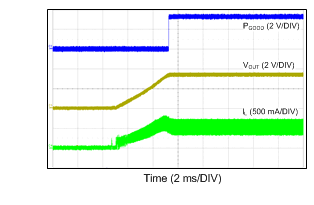

Figure 93. Start-up Into Half Load with Internal Soft-Start Rate

V_IN = 24 V

V_OUT = 3.3 V

R_LOAD = Open

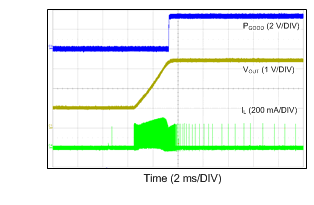

Figure 95. Start-up Into 1-V Pre-biased Voltage

V_OUT = 3.3 V

F_S = 500 kHz

I_OUT = 1 A

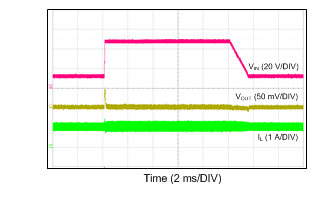

Figure 97. Line Transient: V_IN Transitions Between 12 V and 48 V

LM46001 24VIN_3p3VO_500k_SHORT_RECOVERY.gif

V_OUT = 3.3 V

F_S = 500 kHz

V_IN = 24 V

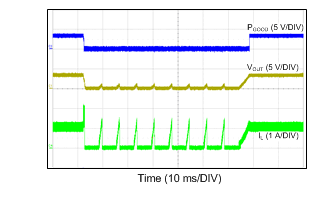

Figure 99. Short-Circuit Protection and Recover

V_OUT = 3.3 V

F_S = 500 kHz

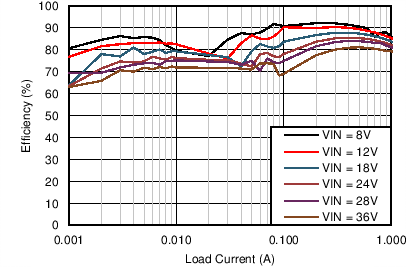

Figure 48. Efficiency

V_OUT = 3.3 V

F_S = 500 kHz

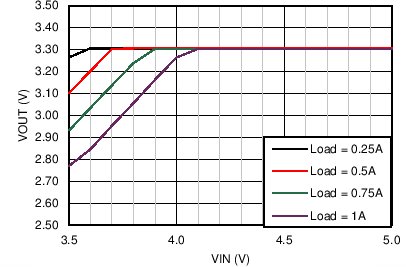

Figure 50. Dropout Curve

V_OUT = 3.3 V

F_S = 500 kHz

V_IN = 24 V

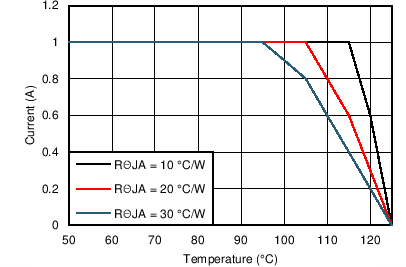

Figure 52. Derating Curve

V_OUT = 5 V

F_S = 500 kHz

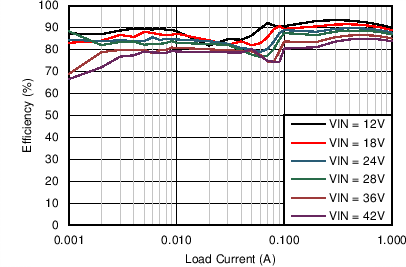

Figure 54. Efficiency

V_OUT = 5 V

F_S = 500 kHz

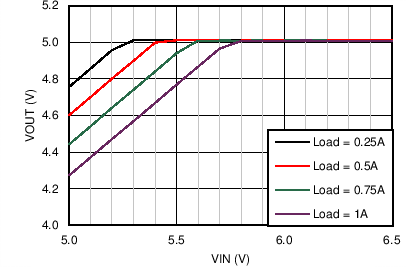

Figure 56. Dropout Curve

V_OUT = 5 V

F_S = 500 kHz

V_IN = 24 V

Figure 58. Derating Curve

V_OUT = 5 V

F_S = 200 kHz

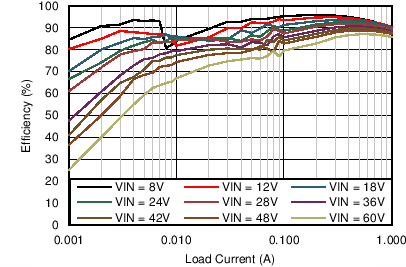

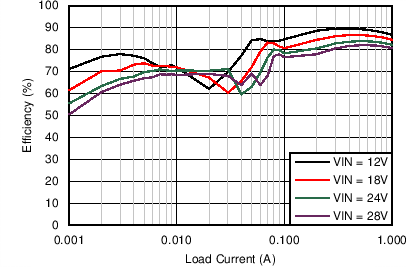

Figure 60. Efficiency

V_OUT = 5 V

F_S = 200 kHz

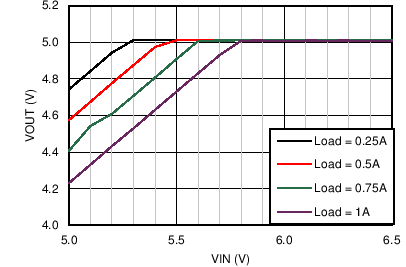

Figure 62. Dropout Curve

V_OUT = 5 V

F_S = 200 kHz

V_IN = 24 V

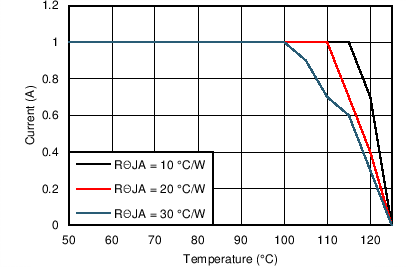

Figure 64. Derating Curve

V_OUT = 5 V

F_S = 1 MHz

V_IN = 24 V

Figure 66. Efficiency

V_OUT = 5 V

F_S = 1 MHz

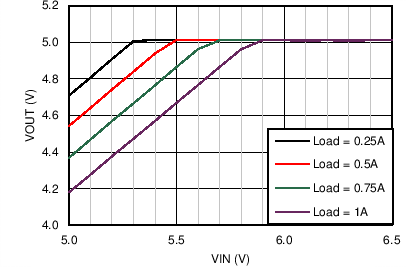

Figure 68. Dropout Curve

V_OUT = 5 V

F_S = 1 MHz

V_IN = 24 V

Figure 70. Derating Curve

V_OUT = 12 V

F_S = 500 kHz

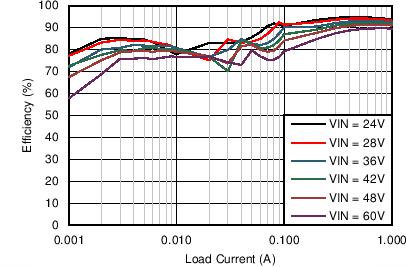

Figure 72. Efficiency

V_OUT = 12 V

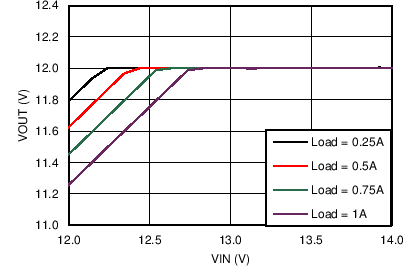

F_S = 500 kHz

Figure 74. Dropout Curve

V_OUT = 12 V

F_S = 500 kHz

V_IN = 24 V

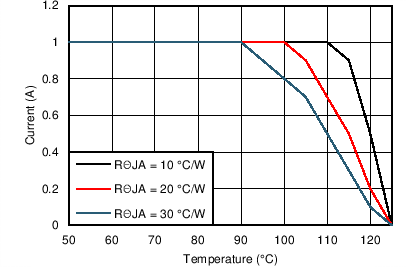

Figure 76. Derating Curve

V_OUT = 24 V

F_S = 500 kHz

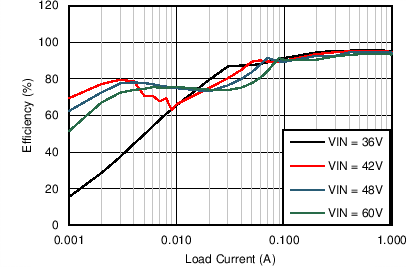

Figure 78. Efficiency

V_OUT = 24 V

F_S = 500 kHz

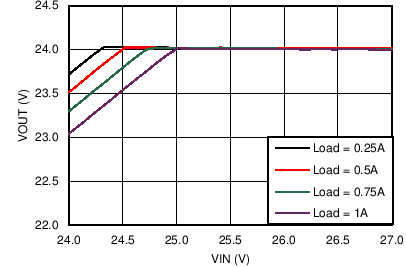

Figure 80. Dropout Curve

V_OUT = 24 V

F_S = 500 kHz

V_IN = 48 V

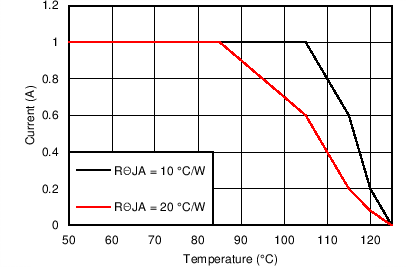

Figure 82. Derating Curve

V_OUT = 5 V

F_S = 500 kHz

R_θJA = 20 °C/W

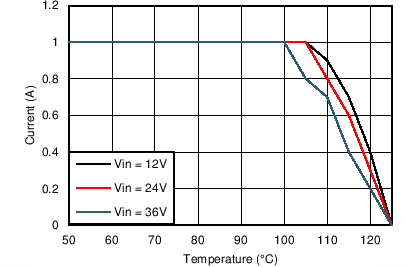

Figure 84. Derating Curve with R_θJA = 20°C/W

V_OUT = 5 V

F_S = 1 MHz

R_θJA = 20 °C/W

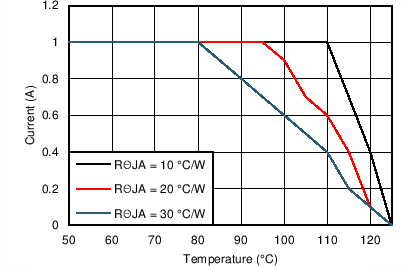

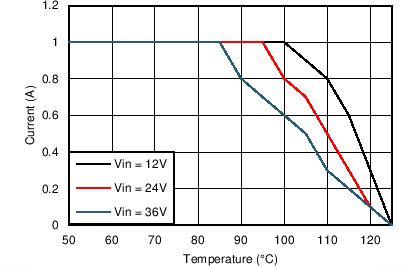

Figure 86. Derating Curve with R_θJA = 20°C/W

V_OUT = 5 V

F_S = 1 MHz

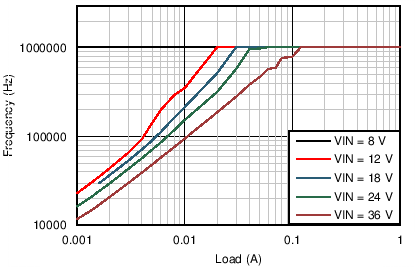

Figure 88. Switching Frequency vs I_OUT in PFM Operation

V_OUT = 3.3 V

F_S = 500 kHz

I_OUT = 90 mA

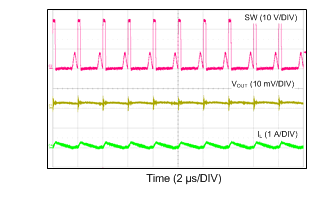

Figure 90. Switching Waveform in DCM Operation

V_IN = 24 V

V_OUT = 3.3 V

R_LOAD = 3.3 Ω

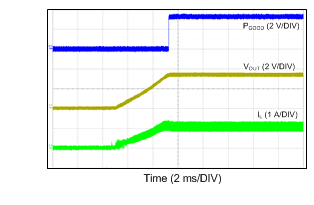

Figure 92. Start-up Into Full Load With Internal Soft-Start Rate

V_IN = 24 V

V_OUT = 3.3 V

R_LOAD = 33 Ω

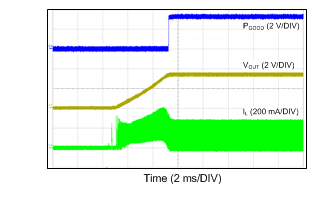

Figure 94. Start-up Into 100 mA With Internal Soft-Start Rate

V_IN = 24 V

V_OUT = 12 V

R_LOAD = 6 Ω

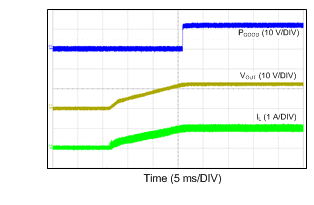

Figure 96. Start-up with External Capacitor C_SS = 33 nF

LM46001 12TO48V_3V3_500k_500mA_1V1us.gif

V_OUT = 3.3 V

F_S = 500 kHz

I_OUT = 0.5 A

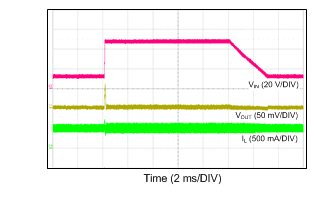

Figure 98. Line Transient: V_IN Transitions Between 12 V and 48 V
