5 Pin Configuration and Functions
Figure 5-1 D, DB, N, NS, PW Packages14-Pin SOIC, SSOP, PDIP, SOP, TSSOP
Top View
NOTE: Connect exposed thermal pad directly to GND pin.

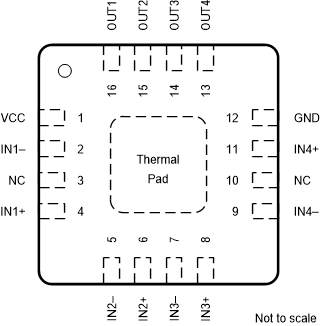

Figure 5-2 RTE Package16-Pad WQFN With Exposed Thermal Pad
Top View
Table 5-1 Pin Functions
| PIN | I/O | DESCRIPTION | |||
|---|---|---|---|---|---|
| NAME(1) | D, DB, N, NS, PW, DYY, J | WQFN | |||
| OUT1 (1) | 1 | 16 | Output | Output pin of the comparator 2 | |
| OUT2 (1) | 2 | 15 | Output | Output pin of the comparator 1 | |
| VCC | 3 | 1 | — | Positive supply | |
| IN2– (1) | 4 | 5 | Input | Negative input pin of the comparator 1 | |
| IN2+ (1) | 5 | 6 | Input | Positive input pin of the comparator 1 | |
| IN1– (1) | 6 | 2 | Input | Negative input pin of the comparator 2 | |
| IN1+ (1) | 7 | 4 | Input | Positive input pin of the comparator 2 | |
| IN3– | 8 | 7 | Input | Negative input pin of the comparator 3 | |
| IN3+ | 9 | 8 | Input | Positive input pin of the comparator 3 | |
| IN4– | 10 | 9 | Input | Negative input pin of the comparator 4 | |
| IN4+ | 11 | 11 | Input | Positive input pin of the comparator 4 | |
| GND | 12 | 12 | — | Negative supply | |
| OUT4 | 13 | 13 | Output | Output pin of the comparator 4 | |
| OUT3 | 14 | 14 | Output | Output pin of the comparator 3 | |
| NC | — | 3 | — | No Internal Connection - Leave floating or GND | |
| NC | — | 10 | — | No Internal Connection - Leave floating or GND | |
| Thermal Pad | — | PAD | — | Connect directly to GND pin | |
(1) Some manufacturers transpose the names of channels 1 & 2. Electrically the pinouts are identical, just a difference in the channel naming convention.
