ZHCSEO7D October 2015 – October 2025 LM27761
PRODUCTION DATA
5.6 典型特性
除非另有規定，否則 TA = 25°C、VIN = 5V，且 C1 至 C4 的值如典型應用 中所示。

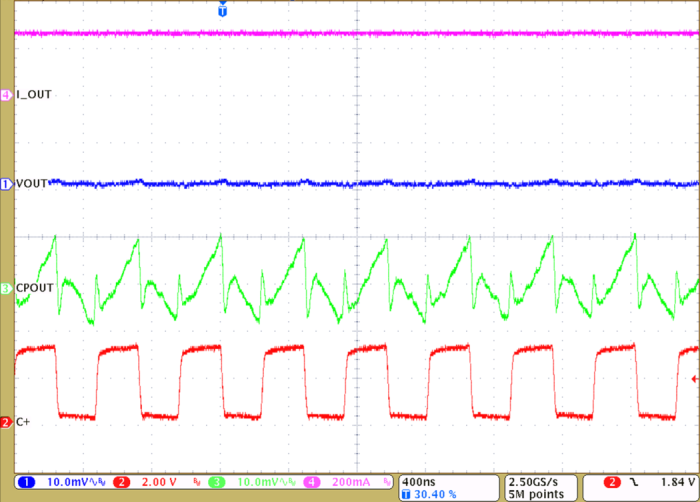

| EN = 1 | ILOAD = 0mA |

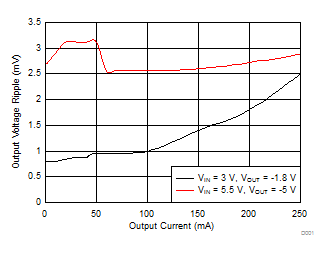

| VIN = 3V | VOUT = -1.8V | |
| R1 = 237kΩ | R2 = 500kΩ |

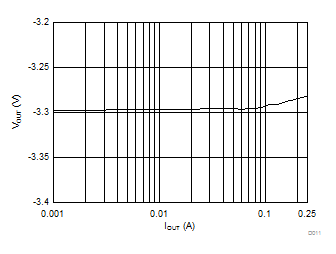

| VIN = 5V | VOUT = -3.3V | |
| R1 = 856kΩ | R2 = 500kΩ |
| VIN = 5.5V | VOUT = -5V | IOUT = 250mA |

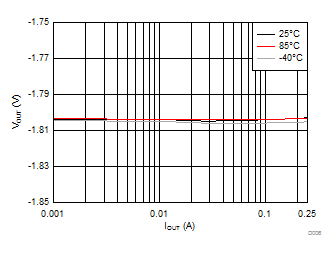

| VOUT = -1.8V | IOUT = 50mA | |
| R1 = 237kΩ | R2 = 500kΩ |
| VOUT = -1.8 | IOUT = 250mA | R1 = 237kΩ | R2 = 500kΩ | |

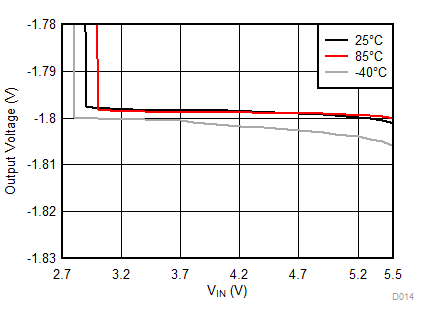

| VOUT = -1.8V | IOUT = 100mA |

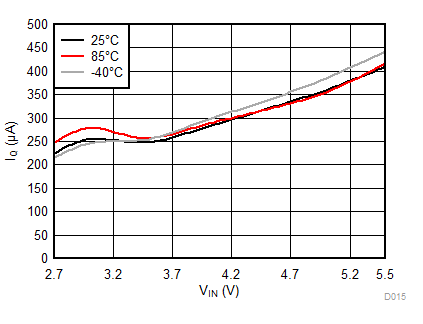

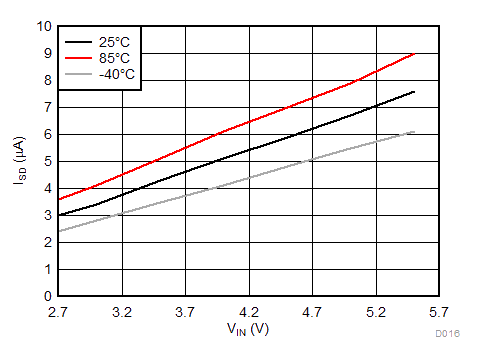

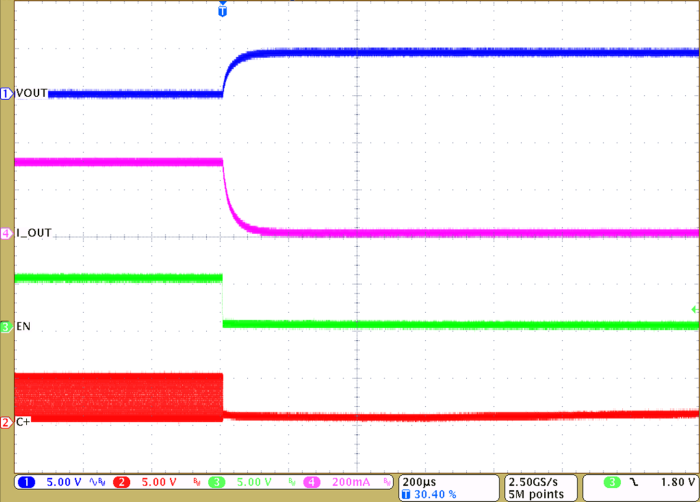

| EN = 0 |
| VIN = 5.5V | VOUT = -5V | |
| R1 = 1.54 MΩ | R2 = 500kΩ |
| VIN = 3V | VOUT = -1.8V | IOUT = 250mA |
| VOUT = -1.8V | IOUT = 100mA | |
| R1 = 237kΩ | R2 = 500kΩ |
