7.3.1 Undervoltage Lockout

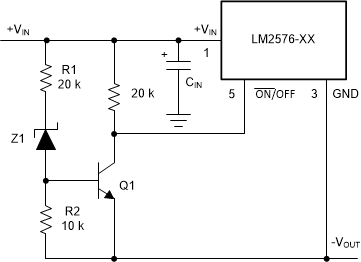

In some applications it is desirable to keep the regulator off until the input voltage reaches a certain threshold. Figure 7-1 shows an undervoltage lockout circuit that accomplishes this task, while Figure 7-2 shows the same circuit applied to a buck-boost configuration. These circuits keep the regulator off until the input voltage reaches a predetermined level.
Equation 1. VTH ≈ VZ1 + 2VBE(Q1)
Complete circuit not shown.

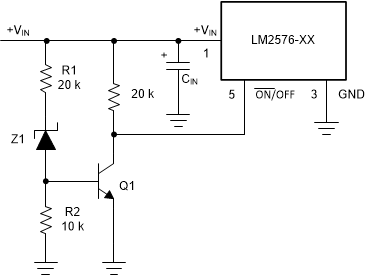

Figure 7-1 Undervoltage Lockout for Buck Circuit
