9.1.2 Error Amplifier and Compensation
Figure 9-3 shows a type-ll compensator using a transconductance error amplifier (EA). The dominant pole of the EA open-loop gain is set by the EA output resistance, RO-EA, and effective bandwidth-limiting capacitance, CBW, as shown by Equation 25.
The EA high-frequency pole is neglected in the above expression. Equation 26 calculates the compensator transfer function from output voltage to COMP node, including the gain contribution from the (internal or external) feedback resistor network.
where
- VREF is the feedback voltage reference of 0.8 V.
- gm is the EA gain transconductance of 1200 μS.
- RO-EA is the error amplifier output impedance of 64 M?.
The EA compensation components create a pole close to the origin, a zero, and a high-frequency pole. Typically, RCOMP << RO-EA and CCOMP >> CBW and CHF, so the approximations are valid.

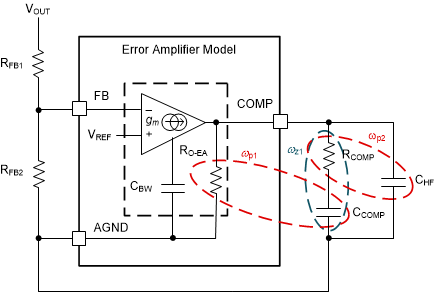

Figure 9-3 Error Amplifier
and Compensation Network
