8.2.2.3 Application Curves
Figure 8-11 Efficiency at 500 kHz,
VOUT1 = 5 V, VOUT2 = 4.5 V

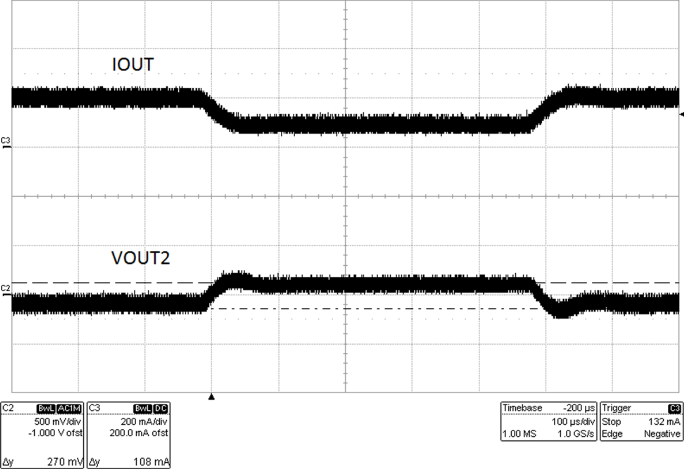

Figure 8-10 Step Load Response
(VIN = 24 V, IOUT1 = 0, Step Load on
IOUT2 = 100 mA to 200 mA)
